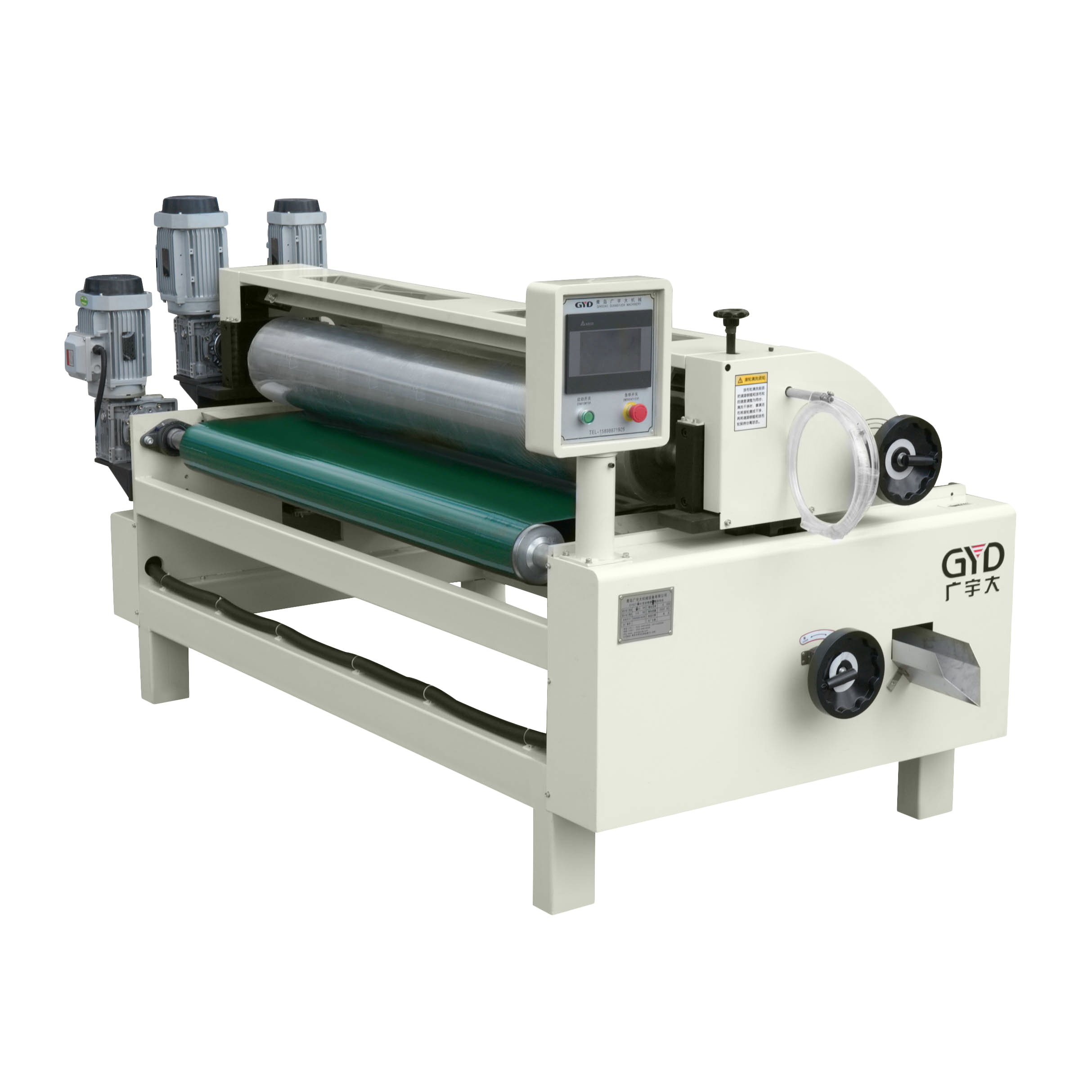

Reverse roll coating machines are specialized industrial devices used for applying uniform coatings on various substrates such as films, textiles, paper, and metal sheets. Distinguished by their unique configuration of rollers running in opposite directions, these machines enable precise control over coating thickness and quality, making them essential in industries requiring high-quality surface finishes.
The reverse roll coating process involves three main rollers: the metering roller, the applicator roller, and the backing roller. The coating material is first transferred from a reservoir to the metering roller. The metering roller controls the amount of coating by adjusting the gap between it and the applicator roller. The applicator roller then transfers the coating onto the substrate, which moves around the backing roller in the opposite direction to the applicator roller. This reverse motion ensures a smooth, even coating layer.
- Metering Roller: Precisely controls coating thickness.
- Applicator Roller: Applies the coating onto the substrate.
- Backing Roller: Supports the substrate and facilitates the reverse motion.
- Doctor Blade: Removes excess coating from the applicator roller to ensure uniformity.
- High Precision: Allows coating thickness control within micrometer ranges.
- Versatility: Suitable for a wide range of coating materials including primers, lacquers, aqueous and solvent-based coatings.
- Environmental Benefits: Hot melt coating variants eliminate solvents, reducing VOC emissions and energy consumption.
- Surface Quality: Produces smooth, defect-free coatings with minimal streaks or bubbles.
- Flexibility: Can handle various substrate types such as films, fabrics, paper, and metal sheets.
- Tape Manufacturing: Uniform adhesive layers on tapes.
- Textile Coatings: Protective and decorative coatings on fabrics.
- Metal Sheet Coatings: Primers and lacquers on aluminum and steel sheets.
- Battery Electrodes: Precise coating of electrode materials in lithium-ion batteries.
- Film Laminates: Coating films for packaging and industrial uses.
Trasy Enterprises developed a hot melt reverse roll coater that applies coatings without solvents, curing at ambient temperature, which eliminates the need for drying ovens and reduces environmental impact.
Accurate setting of the gap between the metering and applicator rollers is crucial for controlling coating weight and uniformity. Speed adjustments must balance coating quality and production throughput.
Proper tension control and alignment devices ensure substrates move smoothly without wrinkles or misalignment, which could affect coating quality.
Depending on the coating type, drying ovens or ambient curing may be used. Hot melt coatings typically cure without additional heat, while solvent-based coatings require drying ovens.
- Causes: Loose spring tension, damaged seal plates, misaligned rolls.
- Solutions: Tighten springs, replace seal plates, adjust roll alignment.
- Causes: Uneven doctor blade pressure, incorrect roller speed, substrate contamination.
- Solutions: Adjust blade pressure, optimize speed, clean substrate surface.
- Regular grinding and maintenance of rollers prevent defects such as chatter, striping, or uneven coating.
Q1: What types of coatings can be applied using reverse roll coating machines?
A1: They can apply primers, lacquers, solvent-based, aqueous, UV coatings, and hot melt coatings.
Q2: How does reverse roll coating differ from direct roll coating?
A2: Reverse roll coating uses two rollers rotating in opposite directions at the coating nip, providing better control and smoother coatings compared to direct roll coating where rollers rotate in the same direction.
Q3: What industries benefit most from reverse roll coating?
A3: Industries such as packaging, textiles, electronics (battery electrodes), automotive, and metal finishing.
Q4: Can reverse roll coating machines handle high-viscosity coatings?
A4: Yes, they can handle a wide range of viscosities, typically from 2000 to 12000 mPas, depending on the machine design.
Q5: What maintenance is required for reverse roll coating machines?
A5: Routine cleaning, doctor blade inspection, roller grinding, and seal plate maintenance are essential to maintain coating quality.
Reverse roll coating machines offer precise, versatile, and environmentally friendly solutions for applying coatings across diverse industries. Their unique roller configuration ensures high-quality finishes with excellent control over coating thickness and uniformity. Understanding their operation, applications, and maintenance can significantly enhance production efficiency and product quality.
