The Bürkle roller coating machine stands as a premier solution in the surface finishing industry, known for its precision, versatility, and efficiency. This article explores the technical characteristics, working principles, and practical applications of the Bürkle roller coater, providing a comprehensive understanding for manufacturers and engineers aiming to enhance their coating processes.
Roller coating is a method where liquid coating materials are applied to substrates using rotating rollers. This technique ensures uniform distribution and controlled thickness of coatings on various materials such as wood panels, metal sheets, plastics, and cardboard.
- Coating Roller (Doctor Roller): Picks up a measured amount of coating material from the reservoir.
- Application Roller: Transfers the coating material from the coating roller to the substrate.
- Gap Control Mechanism: Adjusts the distance between rollers to control coating thickness.
- Drive System: Regulates roller and conveyor speeds to synchronize coating application.

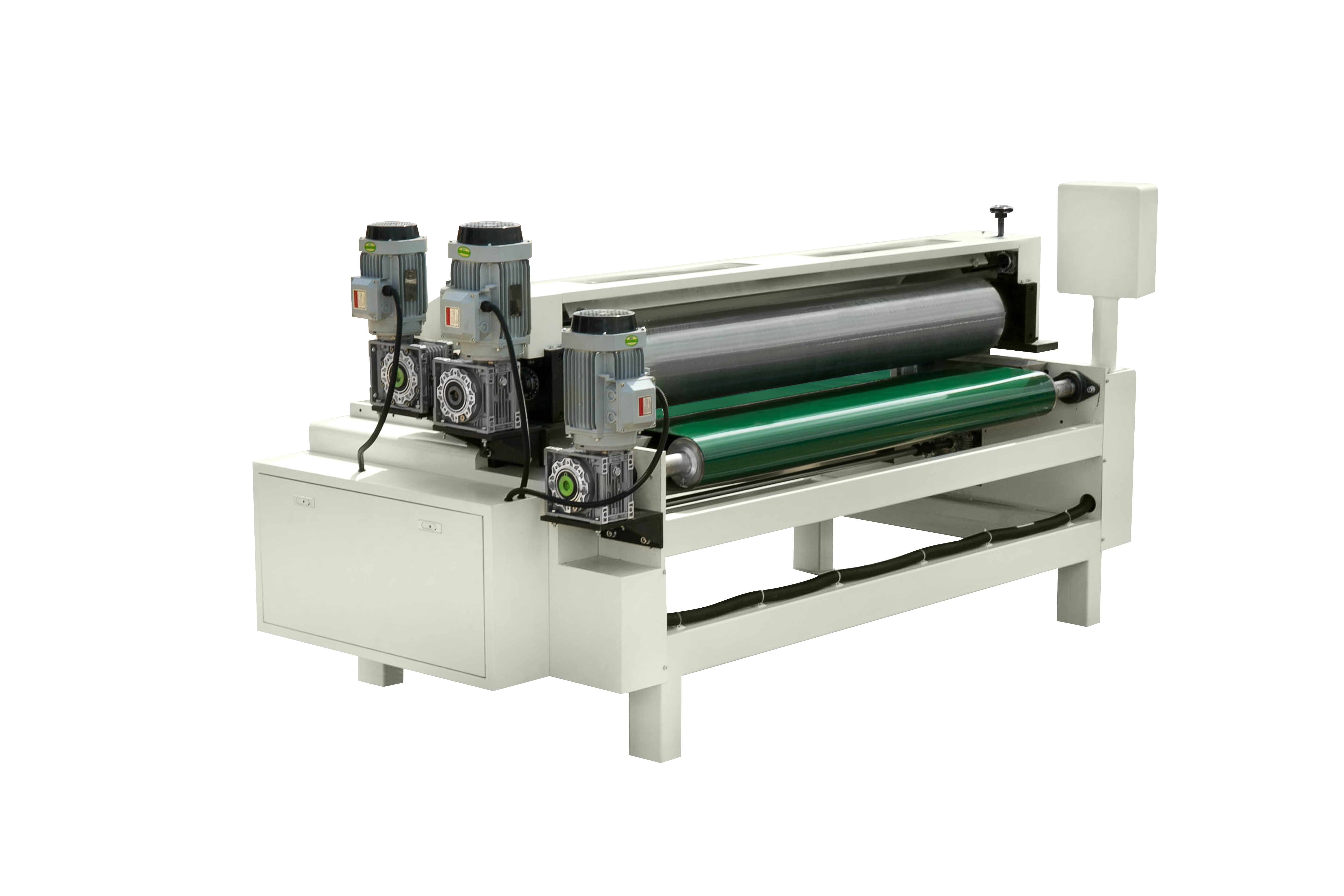

The Bürkle roller coater features a robust, vibration-absorbing cast-iron frame ensuring stability during operation. Its independent transport system is mounted within the frame and can be easily removed for maintenance. The machine includes:
- Chromium-plated doctor roller with sensitive adjustment.
- Quick-change coupling for the applying roller.
- Frequency-controlled direct drives for applying, doctor, and transport rollers.
- Scraper blades that are quickly exchangeable for cleaning.
- Precise gap adjustment allows coating thickness control with ±0.1 mm accuracy.
- Separate motors for each roller enable independent speed and direction control.
- The transport system's feed rate is infinitely variable, ensuring process flexibility.
1. Material Pickup: The doctor roller picks up coating material from the reservoir.
2. Transfer: The coating roller transfers the material to the application roller.
3. Application: The application roller applies the coating evenly on the substrate as it passes through.
4. Thickness Control: Adjusting the nip between rollers controls the coating thickness.
5. Substrate Transport: The conveyor belt moves substrates at controlled speeds synchronized with roller speeds.
- The nip or gap between rollers is adjustable to fine-tune coating thickness.
- Roller and conveyor speeds are regulated via frequency-controlled drives to maintain uniform coating and surface smoothness.
- Woodworking: Coating wood-based panels for furniture and flooring.
- Printing: Applying UV-based lacquers to large-format digital prints.
- Packaging: Coating cardboard and corrugated cardboard for enhanced durability.
- Composite Materials: Finishing composite panels and plastic sheets.
- Suitable for both flexible and rigid substrates.
- Capable of applying coatings from thin films (0.1 mm) up to thick layers (80 mm).
- Ensures uniform coating with minimal material waste.
- Fully automatic operation reduces labor intensity and increases throughput.
- Use scraper blades for efficient cleaning; blades are designed for quick exchange.
- Regular inspection of rollers for wear and damage extends machine life.
- Maintain proper lubrication of moving parts as per manufacturer guidelines.
- Uneven Coating: Check roller gap settings and ensure synchronization of roller and conveyor speeds.
- Material Build-up: Clean scraper blades and rollers frequently to prevent clogging.
- Noise or Vibration: Inspect machine frame and mounting for stability; tighten loose components.
Q1: What types of coatings can the Bürkle roller coater apply?
A1: It can apply a wide range of coatings including UV-based lacquers, water-based paints, and other liquid coatings suitable for wood, metal, plastic, and composite materials.
Q2: How precise is the coating thickness control on the Bürkle machine?
A2: The machine offers gap adjustment with an accuracy of ±0.1 mm and application rate accuracy within ±5% for coatings above 10 g/m².
Q3: Can the machine handle substrates of varying thicknesses?
A3: Yes, it accommodates substrate thicknesses from 0.1 mm up to 80 mm, with adjustable feed-through height.
Q4: What maintenance is required to keep the machine running efficiently?
A4: Regular cleaning of rollers and scraper blades, inspection for wear, lubrication of moving parts, and ensuring proper alignment and tension of the transport system.
Q5: Is the Bürkle roller coater suitable for high-volume production?
A5: Yes, with its stable design, automated controls, and variable speed settings, it supports efficient high-volume coating operations.
The Bürkle roller coating machine exemplifies advanced engineering in surface finishing technology. Its precise control mechanisms, robust design, and versatile application capabilities make it an indispensable asset for industries requiring high-quality coatings. By understanding its operation and maintenance, users can maximize productivity and achieve superior surface finishes.
