Modern furniture, flooring, door, cabinet, and architectural millwork manufacturing demands flawless surface finishes, minimal material waste, and maximum production efficiency to remain competitive in global markets. A UV coating machine has evolved from simple manual roller applicators and brush coating methods into sophisticated automated systems that integrate precision UV coating application, instant UV curing, real-time thickness monitoring, and intelligent panel handling specifically engineered for flat wood panels, MDF, particleboard, plywood, melamine-faced boards, decorative laminates, glass, metal sheets, and composite panels. This comprehensive guide explores leading UV coating machine technologies, system configurations, and selection criteria that transform UV coating operations from labor-intensive bottlenecks into streamlined competitive advantages across furniture, flooring, door, cabinet, architectural panels, decorative boards, and industrial panel manufacturing sectors.
A UV coating machine is a specialized finishing system widely adopted in industries such as furniture manufacturing, bamboo and wood crafts, flooring, wall panels, and footwear production that applies precise, even coats of UV-curable coatings, primers, sealers, putty, and decorative finishes onto flat panels using precision applicator rollers, spray guns, or curtain coating heads with repeatable precision. Unlike manual roller coating or spray application methods that create uneven coverage and excessive material consumption, UV coating machines transfer liquid UV coatings from applicator rollers to panel surfaces through controlled contact, ensuring uniform coating thickness across full working widths with minimal waste and consistent finish quality.
These systems integrate precision applicator rollers, metering rollers, and coating reservoirs with precise gap control that maintains optimal coating thickness ranging from 5 to 80 microns depending on coating type and application requirements. Advanced UV coating machine configurations feature programmable logic controllers, human-machine interfaces, servo-driven feeding systems, and real-time coating thickness monitoring that maintain optimal application parameters throughout high-volume production cycles, enabling continuous flow manufacturing in modern smart factories with minimal operator oversight while achieving coating thickness tolerances far superior to manual spray methods.
Industrial UV coating machines consist of several integrated subsystems working in concert to achieve reliable high-quality finishes at production speeds optimized for flat panel geometries. The process starts with panel feeding systems that transport workpieces through coating zones at controlled speeds ranging from 0 to 20 meters per minute depending on coating formulation, panel thickness, and desired film thickness. Applicator rollers rotate through coating reservoirs or receive coating from metering rollers, collecting material and transferring it to panel surfaces while metering rollers or doctor blades remove excess coating to achieve precise thickness control.
Dosing rollers control coating transfer to applicator rollers, with rotation direction adjustable clockwise or counter-clockwise to optimize coating distribution for different panel geometries and coating viscosities. Conveyor systems transport panels through application and UV curing zones at controlled speeds, with photoelectric sensors detecting panel dimensions to trigger automatic roller movement and coating application without manual intervention. Hard chrome-plated rollers with hardness HRC 60 plus and five-year service life ensure consistent coating quality across extended production runs without roller wear that compromises finish quality.
The coordinated control among conveyor system, coating roller, and precision metering components enables exceptionally uniform paint application, high production efficiency, and significantly reduced paint waste. This synchronized operation produces a smooth, full, and even film without sags or misses, with finish quality that rivals curtain coating but with thinner, more controlled film build that minimizes material consumption while maximizing protection and aesthetic appeal.

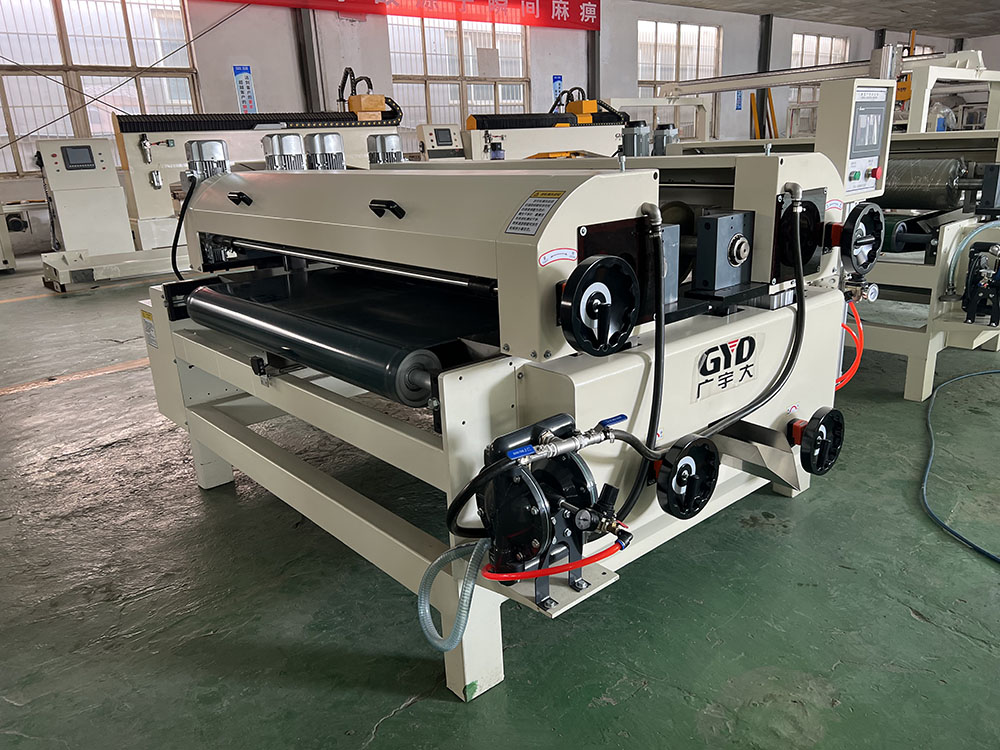

Roller UV coating machines represent the most widely deployed UV coating configuration for flat panel applications in furniture, flooring, door, cabinet, and architectural millwork manufacturing where high throughput and minimal material waste are paramount. These machines feature working widths from 600 to 1,300 millimeters with feeding speeds from 0 to 20 meters per minute, fully automating application of UV coatings, primers, sealers, and decorative finishes with exceptional uniformity that effectively replaces inconsistent manual methods.
High precision UV single roller coating machines for primer and stain application feature working widths from 600 to 1,300 millimeters, working heights from 2 to 90 millimeters, minimum working lengths of 300 millimeters, and feeding speeds from 0 to 20 meters per minute for compact, high-precision, and versatile entry-level coating application on flat panels. These machines are designed for flawless coating application with minimal material waste and consistent finish quality across extended production runs.
Roller UV coating machines apply a precise, even coat of paint, UV coating, primer, or putty onto flat panels including MDF, plywood, particleboard, metal sheets, PVC, and calcium silicate boards. They are widely used in furniture, flooring, cabinet doors, and wall panel production where simplicity and cost-effectiveness are paramount for small to medium-volume operations.
Spray UV coating machines represent versatile UV coating configurations for three-dimensional components, shaped objects, and complex assemblies where roller or curtain coating is impractical. These machines feature UV-curable coatings applied by airless or conventional spray guns, with typical UV formulations in viscosity range less than 4000 millipascal seconds to be used preferably in roll and curtain coating applications, while spray applications accommodate higher viscosities for shaped objects.
Automatic UV spray coating machines achieve paint utilization rate of 85 to 95 percent with reciprocating spray systems, compared to manual spraying that achieves only about 55 percent paint transfer efficiency. One automated spray line can replace up to 12 spray painters, reducing direct labor expenses by roughly 50 percent for the same output while achieving superior finish quality and consistency.
Spray UV coating machines serve furniture components, cabinet doors, architectural millwork, and decorative objects where three-dimensional geometries require spray application for complete coverage. These systems feature UV lamp arrays positioned to cure coatings immediately after application, enabling continuous flow production without drying wait times that constrain throughput in traditional spray plus drying processes.
Curtain UV coating machines represent advanced UV coating configurations for high-gloss mirror finishes on flat panels where exceptional surface quality and high material utilization are critical. These machines convey flat panels through a curtain of lacquer falling from a slotted head that lays down film weights of 80 to 150 grams per square meter, producing smooth, full, and even films without sags or misses.
Curtain coating machines handle products with widths up to 96 inches, fully covering them with UV, water-based, solvent-based, or intumescent coatings with complete control over infeed and outfeed speed and pump delivery rate that determine coating thickness. The transfer efficiency of liquid coating to substrate is very high, about 100 percent in curtain coaters, with minimal overspray and waste compared to spray methods.
Curtain UV coating machines serve high-end furniture, architectural panels, decorative boards, and specialty applications where mirror-finish quality justifies premium capital investment. These systems achieve production speeds from 12 to 18 meters per minute, producing 3,000 square meters of coated surface per eight-hour shift with exceptional finish quality that rivals or exceeds traditional finishing methods.
Integrated UV coating production lines combine surface preparation, multi-stage coating application, UV curing tunnels, inspection, and stacking in one continuous flow that transforms raw substrates into finished, ready-to-assemble components with minimal manual handling. These complete installations suit mass production environments where panels move automatically from dust removal through coating application, UV curing, inspection, and stacking without intermediate storage or re-fixturing that introduces contamination risks and delays order fulfillment.
A complete UV coating line can process a panel through multiple stages from staining and sealing to topcoating in just 3 to 5 minutes, boosting production efficiency by over 60 percent, reducing labor time by 50 percent, and lowering overall costs by more than 40 percent compared to traditional spray plus drying processes that take hours to complete. UV coatings cure instantly upon exposure to UV light, eliminating drying wait times and production bottlenecks that constrain throughput in traditional finishing operations.
Integrated UV coating production lines integrate easily with sanding and curing systems, giving higher efficiency, better finish quality, and lower operating costs compared to standalone coating machines that require manual panel handling between operations. These integrated systems achieve production speeds from 10 to 20 meters per minute for continuous, high-volume flat-panel lines, dramatically increasing throughput compared to spray coating systems that operate at only up to 50 feet per minute due to atomization, flash-off, and drying constraints.
UV coating machines operate at production speeds from 10 to 20 meters per minute for continuous, high-volume flat-panel lines, significantly faster than traditional spray coating systems that operate at only up to 50 feet per minute due to atomization, flash-off, and drying constraints. A modern UV coating machine allows panels to move continuously through the coating and curing process, significantly increasing production speed and ensuring consistent coating quality across extended production runs.
In contrast, traditional spray coating often requires more time because each piece must be coated individually with multiple passes to achieve uniform coverage, especially on large panels where manual spray operators struggle to maintain consistent gun distance and traverse speed across full panel surfaces. For flat panel production and large-scale manufacturing, UV coating is usually more efficient and cost-effective compared to traditional spray coating methods that constrain throughput and increase labor costs per finished unit.
Roller coating applications are typically run at line speeds of 30 to 100 feet per minute, while spray coating operates at up to 50 feet per minute maximum due to atomization and drying constraints. The instant curing of UV coatings eliminates drying wait times, enabling continuous flow production that dramatically increases throughput compared to traditional spray plus drying processes.
UV coating machines deliver highly uniform coating layers because coating material is evenly distributed by precision rollers with coating thickness tolerances far superior to traditional spray coating methods. UV roller coating provides a highly uniform coating layer because the coating material is evenly distributed by precision rollers, with coating thickness typically ranging from 5 to 15 microns for thin films that are consistent across the entire panel.
The UV curing process also creates a durable surface with excellent scratch resistance that far exceeds traditional spray coating finish quality on flat panels. In contrast, spray coating produces highly variable coating thickness affected by gun distance, air pressure, and traverse speed, suitable for thick builds over 30 microns but difficult to control for thin uniform films that require precise thickness control for optimal performance.
Roller coating delivers smooth, even gloss with paint mechanically pressed into wood grain, eliminating pinholes and orange peel defects that plague traditional spray coating methods. Spray coating can produce soft, matte, or textured effects, but is prone to orange peel, pinholes, and dry spray if not optimally controlled by skilled operators with extensive training and experience.
Standard application rollers can apply about 1 mil of film thickness without having a streaked appearance, while spray coating produces variable film thickness that requires skilled operators to achieve acceptable uniformity. The finish from UV roller coating rivals that of curtain coating but with thinner, more controlled film build that minimizes material consumption while maximizing protection and aesthetic appeal.
UV coating machines achieve paint utilization rate of 96 percent or higher with closed-loop recirculation systems and almost no overspray waste, while traditional spray coating achieves only 50 to 75 percent utilization with 25 to 50 percent of paint lost as overspray even with recovery systems. Excellent paint economy with over 96 percent of coating material used makes UV coating very cost-effective for expensive UV or waterborne paints that represent significant material costs in high-volume production.
UV coating machines waste almost no coating material, need almost no masking, and push coating into wood grain so the finish actually lasts longer, while traditional spray coating produces significant overspray that creates cleanup burdens and hazardous waste disposal costs. The coating is metered onto the applicator roller by precision setting of the gap between the upper metering roller and the application roller, with the coating wiped off the application roller by the panel as it passes around the support roller, ensuring precise coat weight control without overspray losses.
Roller and curtain coater systems are best suited for flat-panel production, nearing 100 percent transfer efficiency with no overspray and unused paint staying in the tray. Spray systems achieve only about 50 to 75 percent transfer efficiency with significant overspray losses that require cleanup and hazardous waste disposal, making them less economical for high-volume flat panel production.
UV coating machines require minimal operator intervention with PLC-controlled systems enabling continuous flow manufacturing in modern smart factories, while traditional spray coating depends on skilled operators who require extensive training and experience to achieve consistent quality. UV roller coating uses rollers to apply coating evenly on flat surfaces and cures it instantly with UV light, while spray coating applies paint through spray guns and is more suitable for complex shapes that roll coating cannot access.
For flat panel production and large-scale manufacturing, UV coating is usually more efficient and cost-effective with lower operating costs and minimal labor requirements compared to traditional spray coating methods that depend on skilled operators and frequent quality inspections. Roll coating offers less waste, lower operating costs, and consistent film thickness compared to spray systems, making it the preferred choice for high-volume flat panel manufacturing where throughput and material efficiency are critical.
A complete UV coating line reduces labor time by 50 percent and lowers overall costs by more than 40 percent compared to traditional spray plus drying processes, while boosting production efficiency by over 60 percent through instant UV curing that eliminates drying wait times and production bottlenecks.
WEHO Machinery manufactures UV coating machines for wood furniture, cabinet, MDF, and melamine panel applications with working widths of 600, 900, and 1,300 millimeters, coating thickness from 5 to 80 millimeters, feeding speeds from 0 to 20 meters per minute, and coating roller diameters of 250 millimeters. The company's machines feature robust construction with weights of 1,200 kilograms and feeding power systems that ensure consistent panel feeding through coating zones.
Chengdu Senlian Coating Machinery provides UV roller coating line equipment for furniture, doors, and panels with precise coating and fast UV curing performance. Compared to traditional manual spraying of solvent-based paints that require several days to dry naturally, UV roller coating lines offer hundreds of times greater efficiency with curing process involving no solvent evaporation, and roller coating better suited to flat substrates, avoiding problems such as paint mist and uneven coating that occur during spraying.
Qingdao Incri Machinery manufactures automatic UV varnishing roller coating machines with single roller configurations, working widths of 600, 1,000, and 1,300 millimeters, processing thickness from 2.5 to 100 millimeters, minimum working length of 80 millimeters, and feeding speeds from 0 to 20 meters per minute. The company's machines feature feeding power from 1.5 to 2.2 kilowatts and prices ranging from 4,000 to 7,600 dollars depending on configuration and automation level.
Trivec Coating Machine manufactures single roller coater basic machines for precise coating of wood, concrete, glass, and more, ideal for UV oil, lacquer, and wax applications. The Basic Roller Coater uses a combination of dosing and application rollers to enable users to apply coating evenly and precisely by adjusting individual roller speeds and rotational direction of dosing roller for optimal coating distribution.
Dubois Equipment manufactures automatic curtain coating machines that guarantee even application of coating and paint to boost productivity, covering flat substrates with widths from 12 inches to 96 inches with various coatings including water-based, solvent-based, UV, and intumescent formulations. These machines provide complete control over infeed and outfeed speed and pump delivery rate that determine coating thickness for precise process control.
PURETE leads in curtain coater machine manufacture with quality curtain coating production lines for high-gloss mirror finishes on flat panels. The company's curtain coating machines serve high-end furniture, architectural panels, decorative boards, and specialty applications where exceptional surface quality and high material utilization are critical for competitiveness in demanding markets.
SL Coating provides UV roller coating line equipment for furniture, doors, and panels with precise coating and fast UV curing performance. The company's UV roller coating lines offer hundreds of times greater efficiency compared to traditional manual spraying of solvent-based paints, with curing process involving no solvent evaporation and roller coating better suited to flat substrates.
Accio suppliers offer a wide range of UV coating machines including roller coaters, spray systems, and curtain coaters with working widths from 600 to 1,300 millimeters and feeding speeds from 0 to 20 meters per minute. These machines feature robust construction, PLC control, and closed-loop recirculation systems that achieve coating utilization rates exceeding 96 percent for high-volume flat panel production.
Matching UV coating machine capacity to actual production volumes and panel complexity prevents both underutilization of capital equipment and production bottlenecks that delay order fulfillment. Low to medium volume operations processing under 500 panels daily benefit from single roller UV coaters or compact configurations with manual loading and unloading stations positioned at ergonomic heights.
High-volume manufacturers handling thousands of panels daily require integrated production lines with automated material handling, quick-change roller assemblies, and integrated UV curing zones that minimize changeover downtime between product styles. Evaluate cycle times including loading, coating application, UV curing, cooling, and unloading phases to calculate realistic daily throughput under actual operating conditions rather than theoretical maximums.
Different coating chemistries demand specific roller materials, gap settings, and UV curing parameters to achieve optimal results without incomplete cure, adhesion failures, or finish defects. UV-curable coatings require UV lamp arrays positioned immediately after coating zones for instant polymerization that enables immediate handling and packaging, while water-based coatings require extended flash-off and drying zones for solvent evaporation before stacking.
Verify that candidate UV coating machines accommodate your specific coating portfolio including primers, sealers, topcoats, UV coatings, water-based paints, and solvent-based lacquers without requiring extensive reconfiguration when switching materials between production runs. Furniture and cabinet applications typically require coating thickness from 5 to 15 microns for thin films, while flooring and architectural panels may require thicker builds up to 80 microns for enhanced durability and wear resistance.
Wood panels, MDF boards, and decorative laminates vary dramatically in dimensions from small furniture parts measuring 300 millimeters minimum length to substantial architectural panels exceeding 2,440 millimeters in length with varying thickness from 2 to 90 millimeters. Ensure that candidate UV coating machines accommodate maximum panel dimensions with adequate clearance for applicator roller contact, conveyor tracking, and UV curing zones without edge contact that damages finishes or creates safety hazards.
For thin panels under 10 millimeters thickness, prioritize UV coating machines with precision panel support systems that prevent panel deflection and ensure consistent coating application across full panel surfaces. Standard UV coating machines may achieve superior results on robust architectural panels but require careful support for thin panels, potentially requiring specialized configurations for delicate decorative laminates and veneered panels.
Consistent daily cleaning prevents coating buildup in applicator rollers, metering rollers, coating reservoirs, and conveyor systems that degrades finish quality and increases unplanned downtime. Flush coating reservoirs with appropriate solvents at shift end, removing doctor blades for thorough cleaning to prevent clogging from dried coating residue that alters application patterns and creates streaks or dry spots on finished panels.
Inspect conveyor chains, drive motors, photoelectric sensors, roller bearings, and UV lamp arrays for wear, contamination, or misalignment that could affect positioning accuracy and coating uniformity across panel surfaces. Visual inspection should identify buildup or debris that, if unclean, may hinder even application, with soft lint-free cloths used to wipe components to ensure no scratches or damage occurs during cleaning.
Premium UV coating machine producers track component replacement in operating hours and square meters coated rather than calendar time because coating type, panel, and line speed determine wear rate. Applicator rollers, metering rollers, doctor blades, seals, and UV lamps have defined service life based on operating hours and material compatibility, with replacement scheduled during planned downtime.
Document all component replacements and maintenance activities in computerized maintenance management systems linked to production records for traceability and warranty compliance. Preventive replacement scheduled before defects impact production avoids unplanned stoppages that delay customer orders and disrupt production schedules in high-volume furniture, flooring, and architectural panel manufacturing environments.
Preventive maintenance programs implement scheduled inspections based on equipment manuals and operational hours to avoid unexpected downtime. Weekly maintenance includes checking motor load, lubricating bearings, and inspecting applicator roller alignment to ensure proper nip pressure and coating thickness control.
Monthly maintenance involves calibrating gap settings against coating thickness targets, verifying conveyor speed calibration, checking UV lamp intensity, and documenting all readings. Annual maintenance overhauls all mechanical systems, updates software, replaces worn components including seals and rollers, and performs comprehensive system validation before resuming production.
Roller UV coating machines use precision applicator rollers suitable for flat panels with highest material efficiency and lowest waste. Spray UV coating machines use spray guns suitable for three-dimensional components and complex geometries where roller coating is impractical. Curtain UV coating machines use falling curtains of lacquer for high-gloss mirror finishes on flat panels where exceptional surface quality is critical.
UV coating machines typically reduce coating consumption by 30 to 50 percent compared to traditional spray coating through precise metering, consistent application patterns, and minimal overspray. UV coating machines achieve paint utilization rate of 96 percent or higher with closed-loop recirculation systems and almost no overspray waste, while traditional spray coating achieves only 50 to 75 percent utilization with 25 to 50 percent of paint lost as overspray.
Yes, most modern UV coating machines accommodate multiple coating types including UV-curable, water-based, and solvent-based coatings with appropriate roller materials and curing systems. UV coatings require UV lamp arrays for instant polymerization, while water-based coatings require extended flash-off and drying zones for solvent evaporation before stacking.
Daily maintenance includes flushing coating reservoirs, cleaning applicator rollers and doctor blades, wiping down conveyor systems, and checking UV lamp intensity. Weekly tasks involve lubricating linear guides, verifying applicator roller alignment, checking gap settings, and inspecting coating filters. Monthly maintenance calibrates gap settings against coating thickness targets and verifies conveyor speed calibration.
UV coating machine selection balances production volume, panel dimensions, coating requirements, and budget constraints. Roller coaters suit flat panels with highest material efficiency, spray coaters serve three-dimensional components, curtain coaters deliver high-gloss mirror finishes, and integrated production lines combine coating, UV curing, and handling for maximum efficiency.
