Robot spray painting represents sophisticated automated coating technology that employs articulated robotic arms equipped with precision spray guns, rotary atomizers, electrostatic applicators, and advanced path planning software to apply paint, primers, sealers, and protective finishes to products with exceptional precision, consistency, and efficiency that dramatically surpasses manual painting methods. These advanced systems have revolutionized manufacturing across diverse sectors including automotive, aerospace, furniture, consumer electronics, metalworking, architectural components, and general industrial production, enabling companies to achieve transfer efficiency of 60 to 90 percent compared to 30 to 50 percent for manual spraying, reduce labor costs by 50 to 70 percent, improve finish quality with unprecedented consistency rates approaching 95 to 97 percent first-pass yield, enhance workplace safety by removing operators from spray booths and away from solvents and paint mist, and increase production capacity by 200 to 300 percent while meeting increasingly stringent environmental regulations and quality standards. As global manufacturing continues evolving toward greater automation, sustainability, and data-driven optimization, robot spray painting systems represent critical investments for competitive industrial operations seeking to maintain market leadership and operational excellence in demanding modern markets where finish quality directly impacts product value, brand reputation, and customer satisfaction.
Articulated robotic painting systems employ six-axis or seven-axis robot arms equipped with precision spray guns, rotary atomizers, or electrostatic applicators to coat products with maximum flexibility for irregular shapes, complex geometries, and frequently changing product mixes. These systems offer multiple axes of motion, enabling robot arms to reach difficult angles, recesses, and variable orientations that fixed-axis machines cannot access efficiently. Leading manufacturers including ABB, FANUC, KUKA, and Kawasaki create robots with explosion-proof ratings suitable for hazardous spray booth environments, perfect for automating smaller and hard-to-reach automotive parts painting and finishing applications. Modern robotic painting systems incorporate advanced path planning software that generates optimal spray trajectories based on part geometry, ensuring consistent coating thickness even on complex three-dimensional surfaces. Perhaps the most significant advantage of painting robots is their ability to deliver unprecedented quality consistency, with batch-to-batch variation essentially disappearing to create perfect consistency across production runs. Robotic systems excel at automotive body painting, aerospace components, custom furniture, and applications requiring frequent product changeovers without extensive retooling, providing versatility that fixed automation cannot match.
Electrostatic rotary bell robot spray painting systems incorporate high-speed rotary bells spinning at 30,000 to 70,000 RPM that impart electrical charge to coating particles while atomizing paint into fine, uniform droplets with mean diameter of 10 to 30 microns. Rotary atomizers create fine mist that achieves 85 to 95 percent transfer efficiency for electrostatic applications, representing the pinnacle of paint application technology. The electrostatic attraction causes paint particles to wrap around workpieces, coating back sides and recessed areas that conventional spraying cannot reach effectively. The integration of electrostatic technology in robotic spraying systems has become the industry standard, enabling paint material reduction of 25 to 40 percent compared to conventional air spray guns while delivering superior edge-wetting and coating uniformity. Electrostatic rotary bell systems are particularly valuable for metal components, automotive parts, appliances, and any conductive workpieces where the electrostatic effect can be fully utilized. Lines built around electrostatic rotary bells typically push transfer efficiency to 85 to 92 percent, compared to 40 to 65 percent for conventional air spray guns, while program-locked motion holds paint film thickness within tighter tolerances part after part. The combination of automated precision with electrostatic efficiency and rotary atomization produces exceptional material savings and environmental benefits while maintaining high finish quality.
Collaborative robot painting systems employ cobots designed to work safely alongside human operators in shared workspaces, enabling flexible automation for selected finishing operations where full robotic cells may not be justified. Where the process, coating material and safety requirements permit, collaborative automation can support selected finishing operations in aerospace and industrial manufacturing. Cobots offer easier programming, faster deployment, and lower initial investment compared to traditional industrial robots, making them attractive for small to medium batch production, custom work, and facilities transitioning from manual to automated painting. Collaborative painting systems typically feature force-limiting technology, rounded edges, and safety-rated monitored stop functions that enable safe human-robot interaction without extensive safety fencing. While cobots may not match the speed or payload capacity of full industrial robots, they provide an accessible entry point to automation for many manufacturers and enable hybrid workflows where humans handle complex setup tasks while cobots execute repetitive spray operations with consistent quality.
Multi-robot and integrated cell robot spray painting systems coordinate multiple robots working simultaneously on single workpieces or production lines to maximize throughput and coating quality. These systems employ sophisticated synchronization software that coordinates robot movements, spray timing, and path planning to ensure complete coverage without interference between robots. Integrated cells combine robots with conveyors, positioners, vision systems, and environmental controls to create complete turnkey solutions that address all dimensions of the coating process. Turnkey solutions deliver systems where first-pass yield consistently exceeds 97 percent while reducing coating material consumption by 25 percent compared to conventional reciprocator or manual methods. Multi-robot systems are particularly valuable for large workpieces such as automotive bodies, aircraft fuselages, and architectural panels where single robots cannot efficiently cover all surfaces within required cycle times. The coordination of multiple robots enables comprehensive coverage of complex geometries in single automated cycles, significantly reducing cycle time compared to manual methods requiring multiple handling operations and repositioning.
Spray gun technology and atomization serves as the heart of any robot spray painting system, responsible for atomizing and directing coating material onto workpiece surfaces with precise control over droplet size, pattern, and flow rate. Modern robot spray painting systems feature HVLP high-volume low-pressure spray guns achieving 65 to 75 percent transfer efficiency, airless spray guns providing high paint flow rates with less overspray, air-assisted airless guns reducing overspray further, electrostatic spray guns imparting electrical charge to improve coating wrap and transfer efficiency achieving 70 to 85 percent, and rotary atomizer guns spinning at high speed to atomize paint to very fine particle size for smooth uniform coatings. Rotary bell atomizers represent the pinnacle of paint application technology, delivering the highest transfer efficiencies and finest atomization quality available. The technology works by feeding paint onto the inner surface of a spinning bell cup where centrifugal force creates a thin, uniform film at the bell edge. This film breaks into extremely fine droplets that are then electrostatically charged to 60 to 100 kV and attracted to the grounded workpiece. Automatic gun cleaning mechanisms flush nozzles between cycles, preventing clogging and ensuring consistent spray patterns throughout extended production runs without manual intervention.
Precision motion control systems govern the movement of spray guns throughout the coating cycle, coordinating multiple axes to achieve complex spray patterns while maintaining optimal gun orientation relative to workpiece surfaces. Servo motors and drives provide accurate positioning and smooth motion along programmed paths, maintaining consistent speed and acceleration for uniform coating application. Advanced path planning software generates optimal spray trajectories based on part geometry, coating requirements, and production parameters, ensuring complete coverage with minimal overspray. Paint robot path programming is fundamentally different from conventional robot programming because the quality of the coating depends not only on positional accuracy but on the continuous relationship between robot velocity, spray distance, spray angle, and overlap percentage throughout every segment of the path. The core parameters that must be controlled simultaneously along every path segment include gun-to-surface distance typically 200 to 300mm for bell applicators and 150 to 250mm for HVLP guns, spray angle where the applicator should be perpendicular to the surface plus or minus 15 degrees to prevent uneven droplet deposition, and overlap percentage to ensure uniform coverage without gaps or excessive buildup. Robots can be programmed to apply exactly the required amount of paint, reducing overspray by up to 30 percent compared to manual application.
Electrostatic charging systems impart electrical charge to coating particles, enhancing transfer efficiency through electrostatic attraction to grounded workpieces. Two primary charging methods are used in robotic electrostatic systems. Direct or internal charging charges paint by contact with a high-voltage electrode before atomization, achieving the highest charge-to-mass ratio and best wraparound, particularly suitable for waterborne coatings. Corona or external charging uses high-voltage electrodes positioned near the atomizer to charge paint droplets after atomization, commonly used for solvent-borne coatings. When combined with electrostatic charging typically 60 to 90 kV, transfer efficiency reaches 85 to 92 percent, compared to 40 to 65 percent for conventional air spray guns. The electrostatic attraction causes paint particles to wrap around workpieces, coating back sides and recessed areas that conventional spraying cannot reach effectively. The EPA reports electrostatic spraying achieves 60 to 90 percent deposition efficiency in automotive assembly settings, a substantial jump over conventional air spray. Proper grounding of workpieces is essential for electrostatic systems to function effectively, requiring careful fixturing and conveyor design to ensure reliable electrical contact throughout the coating process.
Modern robot spray painting systems feature sophisticated control systems based on programmable logic controllers (PLCs) and industrial computers with color touchscreen interfaces that allow operators to program spray parameters including gun speed, flow rate, fan width, rotational speed, and motion paths for different products. Recipe management functions enable quick changeover between products by storing and recalling preset parameters for each part type, reducing downtime in multi-style production environments. Plants adopt automated systems mainly to cut paint waste, stabilize film build, change color faster, and move operators out of the booth and away from solvents and paint mist. Advanced systems incorporate diagnostic functions that monitor system performance, predict maintenance requirements, and alert operators to potential issues before they cause production disruptions. Data collection capabilities enable manufacturers to track coating consumption, production rates, and quality metrics for continuous improvement initiatives. Real-time monitoring allows operators to detect deviations from target parameters immediately, enabling corrective action before defects occur.
Robot spray painting delivers dramatically improved transfer efficiency compared to manual methods, with robotic electrostatic lines typically reaching 60 to 90 percent versus the manual 30 to 50 percent band. Companies typically see transfer efficiency, meaning the proportion of paint that actually adheres to a surface during application, increase from 30 to 50 percent with manual painting to 60 to 90 percent with robotic systems. This efficiency translates to substantial annual material cost savings. The cumulative impact of reduced overspray, eliminated edge waste, and minimized rework results in total paint consumption reductions of 25 to 40 percent for most facilities converting to industrial painting robots. If a factory spends $50,000 monthly on paint, saving just 30 percent equates to $180,000 annually, often the cost of the machine itself. Modern automated machines, especially those equipped with 3D scanning and precise gun control, can achieve transfer efficiencies of over 75 to 85 percent for PU and water-based paints and up to 95 percent for UV coatings via recycling. Advanced atomization and precise control reduce paint waste, directly lowering material costs and environmental impact. The practical consequences are less paint purchased per part and less mist generated in the first place, creating both economic and environmental benefits.
Perhaps the most significant advantage of robot spray painting is its ability to deliver unprecedented quality consistency. Unlike human painters who inevitably experience fatigue, distraction, and variation in technique, robotic painting systems maintain perfect consistency throughout their operation. Exceptional repeatability ensures batch-to-batch variation essentially disappears, creating perfect consistency across production runs. Precise application control enables robots to apply exactly the required amount of paint, reducing overspray by up to 30 percent compared to manual application. This consistency is crucial for large orders such as automotive production runs or architectural component batches where every part must match perfectly. Automated systems maintain these quality standards continuously throughout extended production runs without degradation from operator fatigue or shift changes. Quality audits show improved finish quality and consistency reduce rework rates by 40 to 60 percent, dramatically improving overall quality and reducing waste from defective finishes. Uniform coating ensures even application of paint, avoiding streaks, drips, or uneven thickness that plague manual methods. Robotic systems maintain precise spray angles, distances and material flow rates, producing more uniform film thickness and reducing overspray.
Automation dramatically increases production capacity compared to manual painting methods, with robot spray painting systems operating continuously without breaks and maintaining consistent performance throughout multiple shifts. Robotic painting systems compress production timelines by executing repeatable, high-speed motions and maintaining uniform spray parameters across long runs, which cuts setup and rework time and keeps output steady. Processing speeds significantly exceed manual capabilities, allowing manufacturers to fulfill larger orders and respond more quickly to customer demands. Many facilities report 125 percent higher daily throughput on the same footprint after implementing robot spray painting systems. The elimination of manual handling between coating stages further reduces cycle time, while fixed cycle times enable reliable production planning and forecasting without factoring in human variability. Quick color changeover capabilities minimize downtime in multi-color production environments, with some systems changing colors in minutes rather than the 15 to 30 minutes typically required for manual changeovers. Faster operation automates the process, significantly reducing production times compared to manual painting while handling large volumes without compromising quality.
Robot spray painting significantly reduces labor requirements compared to manual finishing operations, with one operator often able to supervise multiple automatic cells compared to two or three skilled painters required for equivalent manual production. This reduction in labor dependence also mitigates challenges associated with skilled labor shortages, which increasingly affect manufacturing industries globally. Companies implementing robotic painting report labor cost savings of 50 to 70 percent in painting operations. The ability to mix and match products without costly tooling for product orientation eliminates downtime to change out spray setups, increasing operating flexibility. Automated systems enable higher levels of automation where human intervention can be eliminated in many operations, further reducing labor costs and improving operational flexibility. Reduced labor costs combined with increased throughput and material savings substantially improve cost per part and overall profitability. When analyzing operational expenditure, automated spraying systems typically offer a return on investment within 14 to 18 months through labor and material savings combined.
Robot spray painting creates significantly safer work environments by moving operators out of the booth and away from solvents and paint mist. Manual spraying typically requires operators inside booths, near solvent and mist, while robotic systems position operators outside booths, supervising from safe distances. This dramatically reduces worker exposure to hazardous volatile organic compounds, solvents, and airborne particulates associated with painting operations. Manual spray operations typically transfer only 30 to 50 percent of paint; the remainder becomes overspray and emissions that workers breathe and that contaminate work environments. Automated electrostatic systems achieve 60 to 90 percent or higher transfer efficiency, directly reducing both material consumption and VOC emissions substantially compared to manual methods. Enclosed spray cells with integrated filtration systems capture overspray and volatile organic compounds, protecting workers and surrounding environments. Traditional spray painting often results in the release of volatile organic compounds and other harmful gases, but robot spray painting through their closed spraying systems reduce the emission of these harmful gases while also minimizing health risks to workers.
Many robot spray painting systems can collect comprehensive data about the painting process including coating consumption, production rates, system performance, transfer efficiency, and quality metrics. This data enables manufacturers to identify optimization opportunities, troubleshoot issues proactively, and maintain rigorous quality control throughout production. Real-time monitoring allows operators to detect deviations from target parameters immediately, enabling corrective action before defects occur. Historical data analysis supports continuous improvement initiatives by revealing trends, bottlenecks, and opportunities for further efficiency gains. Consistent and repeated spraying means less paint sprayed over all, which saves money, reduces maintenance and cleanup, lowers filter costs and VOC emissions. Automated systems bring consistency and efficiency, resulting in both direct and indirect savings that compound over equipment lifecycles. The upgrade to automated systems has eliminated thousands of annual rework hours in facilities by maintaining consistent parameters, demonstrating the substantial operational improvements possible through data-driven optimization.
The automotive industry represents the largest single market for robot spray painting, accounting for approximately 45 percent of global installations. Automotive manufacturers utilize these systems for priming, base coating, and clear coating on vehicle bodies, bumpers, doors, wheels, and EV components with exceptional quality and efficiency. Automotive manufacturers require flawless finishes that meet stringent quality standards while maintaining high production volumes. Robot spray painting enables automotive plants to achieve uniform coating thickness, consistent color matching, and superior gloss levels across thousands of vehicles daily. The most significant benefit of automotive paint robots is their ability to provide consistent and precise paint application, eliminating variations in thickness seen with human painters. Leading automakers report 20 percent reduction in paint waste and 15 percent increase in throughput after integrating robot spray painting systems. Economically, automating painting and finishing operations increases productivity, reduces operating costs, and improves product quality, leading to higher customer satisfaction. Electrostatic robot spray painting maximizes transfer efficiency on conductive automotive bodies, minimizing material consumption and VOC emissions.
Aerospace manufacturers utilize robot spray painting for coating aircraft components including fuselage panels, wing surfaces, engine components, and interior elements with specialized coatings that provide corrosion resistance, thermal protection, and improved aerodynamics. These applications often require exotic coating materials and precise thickness control that robot spray painting delivers consistently across large, complex geometries. Seven-axis robots on linear tracks provide the extended reach necessary for coating large aircraft components while maintaining optimal spray distance and angle. Robotic aircraft painting systems reduce repainting time by 60 percent, improving quality, reducing waste, and boosting MRO efficiency. For MRO operators managing high-volume repainting cycles, robotic painting automation is the single largest lever available to cut bay occupancy time, reduce material waste, and improve first-pass quality. The ability to program complex spray paths for irregular aerospace components ensures complete coverage while minimizing material waste of expensive specialty coatings.

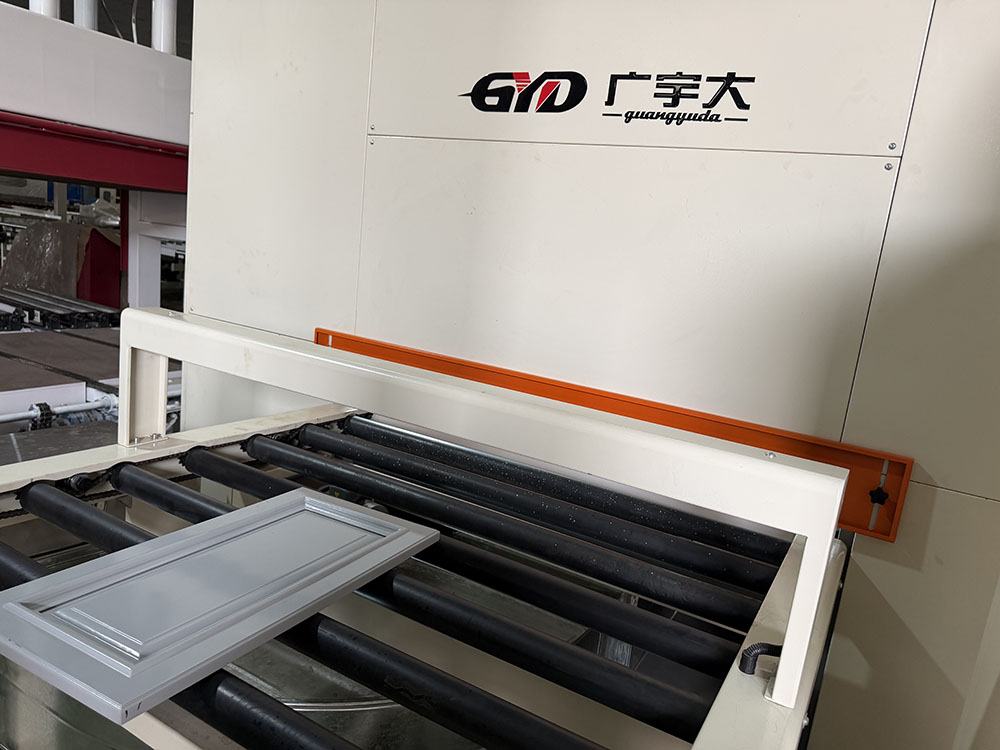

Furniture manufacturers utilize robot spray painting to apply stains, primers, lacquers, and clear coats to cabinets, doors, furniture panels, window frames, and musical instruments with consistent gloss, color accuracy, and faster turnaround times compared to manual methods. These systems handle diverse coating types including water-based paints, UV coatings, solvent-based finishes, and specialty coatings with equal proficiency. The flexibility to handle various wood species, MDF, and composite materials makes robot spray painting valuable across diverse furniture manufacturing segments. Robot spray painting excels at coating carved furniture components, raised panel cabinet doors, and decorative millwork where complex geometries challenge manual spraying. Reduced rework rates and consistent quality significantly improve profitability in competitive furniture markets.
Consumer electronics manufacturers utilize robot spray painting for coating refrigerators, washing machines, ovens, metal furniture, smartphone casings, laptop enclosures, and electronic housings with durable, aesthetically pleasing finishes. These applications often require precise color matching, consistent gloss levels, and defect-free surfaces that robot spray painting delivers reliably at high volumes. The ability to coat complex three-dimensional electronic enclosures with uniform thickness ensures both aesthetic quality and functional protection against scratches, chemicals, and environmental exposure. High throughput capabilities support the rapid production cycles typical of consumer electronics manufacturing. Quick color changeover capabilities enable efficient production of multiple product variants without extensive downtime, supporting the diverse product portfolios characteristic of modern consumer electronics brands.
Metalworking and industrial equipment manufacturers apply robot spray painting for coating machinery parts, agricultural equipment, construction machinery, and industrial components with protective layers that prevent corrosion and extend service life. These applications often involve large, heavy workpieces that benefit from automated handling and coating application. The ability to apply thick protective coatings with consistent thickness ensures adequate corrosion protection while minimizing material consumption. Powder coating robot spray painting provides particularly durable finishes for outdoor equipment and harsh environment applications. Automated systems also improve workplace safety by reducing worker exposure to hazardous coating materials and confined space entry requirements, creating safer work environments while improving coating quality and durability.
Architectural manufacturers utilize robot spray painting for coating aluminum extrusions, window frames, door components, curtain walls, and building panels with durable finishes that withstand environmental exposure while maintaining aesthetic appeal. These applications often require consistent color across large production batches and multiple production runs over extended periods. Robot spray painting maintains color consistency and film thickness across thousands of linear meters of architectural components, ensuring uniform appearance in building facades and interiors. Electrostatic robot spray painting maximizes transfer efficiency on conductive aluminum and steel components, minimizing material consumption and environmental impact. Consistent quality and appearance enhance building aesthetics and property values while reducing long-term maintenance costs through durable finishes.
Successful implementation of robot spray painting requires careful facility planning to accommodate equipment footprint, robot reach envelopes, material flow, ventilation requirements, and environmental controls. Complete robot spray painting cells may need dedicated production areas with proper ventilation, fire suppression systems, and environmental controls. Manufacturers must consider ceiling height for overhead conveyors and robot tracks, floor loading capacity for heavy equipment, and access for material delivery and finished product removal. Proper planning ensures efficient workflow, regulatory compliance, and maximizes return on investment. Explosion-proof ratings and hazardous location classifications must be considered for spray booth environments using solvent-based coatings. Adequate space for maintenance access, material storage, and future expansion ensures long-term operational flexibility.
Robot spray painting must integrate smoothly with existing manufacturing workflows to realize their full benefits. This integration may involve coordinating with upstream processes such as surface preparation, masking, and assembly, as well as downstream operations including drying, curing, inspection, and packaging. Many manufacturers implement robot spray painting incrementally, starting with single cells and expanding to complete lines as experience and confidence grow. Modular system designs facilitate this phased approach, allowing gradual implementation without disrupting ongoing operations. Compatibility with existing conveyor systems and material handling equipment should be evaluated during planning. The automation advantage enables manufacturers to achieve consistent quality across large orders while reducing operational complexity.
While robot spray painting reduces manual labor, they require regular maintenance to ensure optimal performance. Key maintenance activities include cleaning spray guns and bells, inspecting robot axes and gearboxes for wear, calibrating sensors and controls, maintaining filtration systems, and replacing worn components according to manufacturer schedules. Modern designs with sealed components and automatic cleaning functions reduce maintenance frequency, but preventive maintenance programs remain essential for maximizing equipment uptime and longevity. Operators require training in routine maintenance tasks to identify and address minor issues before they cause production disruptions. Consistent and repeated spraying means less paint sprayed over all, which saves money, reduces maintenance and cleanup, and lowers filter costs.
Successful robot spray painting implementation requires appropriate training for operators, maintenance personnel, programmers, and production supervisors. Training programs should cover robot operation, path programming, parameter adjustment, troubleshooting, spray gun maintenance, and safety procedures. Many equipment suppliers offer comprehensive training including on-site installation support, operator certification programs, and ongoing technical assistance. Investing in thorough training ensures that manufacturers realize the full benefits of their robot spray painting equipment while minimizing operational disruptions and quality issues. Advanced path planning and optimization capabilities require specialized training to fully exploit. The transition from manual to automated operations requires workforce development that preserves institutional knowledge while embracing new technologies.
Future robot spray painting will incorporate increasingly sophisticated artificial intelligence and machine learning capabilities that continuously optimize spray paths, atomization parameters, and process settings based on real-time feedback and historical performance data. AI-driven path optimization tunes path speed and bell rotation together rather than independently, since transfer efficiency depends on both simultaneously, commonly achieving material savings without appearance quality tradeoffs. Plants that optimize this with AI are cutting paint consumption meaningfully without touching appearance quality. Continuous atomization monitoring catches component drift before it silently erodes transfer efficiency over months. Material savings are realized without altering film build or appearance, since optimization targets waste, not coverage. Results vary by how far current programs have drifted from optimal tuning, but plants moving from an unoptimized fixed program to AI-tuned path control commonly see material savings in the range of eight to fifteen percent without any appearance quality tradeoff.
Environmental regulations and sustainability goals continue to drive innovation in robot spray painting technology. Future systems will feature enhanced filtration technologies, improved powder recycling capabilities, optimized air flow designs that minimize energy consumption, and compatibility with emerging bio-based and waterborne coating materials. Energy-efficient components and smart power management will further reduce environmental impact while lowering operational costs. Powder coating robot spray painting will expand as manufacturers seek zero-VOC finishing solutions. These developments will help manufacturers achieve carbon neutrality goals while maintaining competitive production costs.
The integration of robot spray painting into Industry 4.0 smart manufacturing ecosystems will enable real-time production monitoring, predictive maintenance, remote diagnostics, and seamless communication with enterprise resource planning (ERP) and manufacturing execution systems (MES). Connected systems will provide valuable data for production planning, quality control, and continuous improvement initiatives across entire production facilities. Digital twins will enable virtual commissioning and optimization before physical installation, reducing startup time and risk. This connectivity will help manufacturers achieve greater transparency and control over their coating operations while enabling data-driven decision-making and optimization.
Robot spray painting represents mature and highly effective technology for modern industrial manufacturing across automotive, aerospace, furniture, electronics, metalworking, and architectural sectors. Their ability to achieve transfer efficiency of 60 to 90 percent versus 30 to 50 percent for manual methods, deliver unprecedented quality consistency approaching 95 to 97 percent first-pass yield, increase production capacity by 200 to 300 percent, reduce labor costs by 50 to 70 percent, achieve material savings of 25 to 40 percent, enhance workplace safety by removing operators from hazardous environments, and improve environmental performance makes robot spray painting invaluable assets for manufacturers seeking to improve competitiveness and profitability. As technology continues to advance with AI-driven optimization, enhanced sensing, adaptive control, and Industry 4.0 connectivity features, robot spray painting will become even more capable and efficient, ensuring their continued importance and expanding adoption in the evolving landscape of automated manufacturing technology.
Q1: How much can robot spray painting reduce material consumption compared to manual methods?
A1: Robot spray painting typically reduces coating material consumption by 25 to 40 percent compared to manual spraying through transfer efficiency improvement from 30 to 50 percent for manual methods to 60 to 90 percent for robotic electrostatic systems. The cumulative impact of reduced overspray, eliminated edge waste, and minimized rework results in substantial annual material cost savings. If a factory spends $50,000 monthly on paint, saving just 30 percent equates to $180,000 annually, often the cost of the machine itself. These savings often justify equipment investment within 14 to 18 months through material and labor cost reduction combined.
Q2: What is the difference in coating quality between robot spray painting and manual painting?
A2: Robot spray painting achieves unprecedented quality consistency approaching 95 to 97 percent first-pass yield compared to variable results from manual application affected by operator skill and fatigue. Batch-to-batch variation essentially disappears, creating perfect consistency across production runs. Robots apply exactly the required amount of paint with precise control, reducing overspray by up to 30 percent. Improved finish quality and consistency reduce rework rates by 40 to 60 percent, dramatically improving overall quality and reducing waste from defective finishes while ensuring every part matches perfectly in large orders.
Q3: Can robot spray painting handle complex three-dimensional parts effectively?
A3: Yes, robotic spray painting with six or more axes of motion excels at coating complex three-dimensional parts including automotive bodies, aerospace components, carved furniture, and irregular electronic enclosures. Multiple degrees of freedom enable robots to reach difficult angles, recesses, and variable orientations while maintaining optimal spray distance and angle throughout complex spray paths. Advanced path planning software generates optimal trajectories based on part geometry, ensuring complete coverage with minimal overspray.
Q4: How quickly can robot spray painting changeover between different colors or products?
A4: Modern robot spray painting with quick-change bell cups and automated flush cycles can change colors in minutes rather than the 15 to 30 minutes typically required for manual changeovers. Advanced systems with color valves and circulating systems enable even faster changeovers. This flexibility enables efficient multi-color production and high-mix manufacturing without extensive downtime, supporting just-in-time production and custom order fulfillment. Faster color and part changeovers support mixed-model production with less downtime than manual operations.
Q5: What safety improvements does robot spray painting provide for workers?
A5: Robot spray painting moves operators out of the booth and away from solvents and paint mist, positioning them outside booths supervising from safe distances instead of inside booths near hazardous materials. This dramatically reduces worker exposure to volatile organic compounds, solvents, and airborne particulates. Manual spray operations lose 30 to 50 percent of paint as overspray and emissions; automated electrostatic systems achieve 60 to 90 percent or higher transfer efficiency, substantially reducing VOC emissions. Enclosed spray cells with integrated filtration systems capture overspray and VOCs, protecting workers and surrounding environments while minimizing health risks.
