When manufacturers compare an auto spray machine vs hand spraying, the real difference is not simply whether a machine or a person applies the coating. Both methods can produce attractive results. The larger production differences appear in throughput, repeatability, labor structure, coating utilization, rework, changeover time, safety, and scalability.
Hand spraying gives a skilled operator immediate control over unusual surfaces and custom products. An auto spray machine provides programmed movement, stable application parameters, and more predictable output. For standardized wooden doors, furniture panels, cabinet doors, flooring, glass, and fibre cement products, automation is usually more efficient. For customized, low-volume, and frequently changing work, hand spraying may remain more practical.
GYDFinishing—also known as GYD Machinery—has supplied machinery and surface-finishing solutions since 2007. Drawing on global experience and more than two decades of technological heritage, GYD Machinery develops automatic coating equipment ranging from individual machines to complete turnkey production lines.
Hand spraying uses a manual spray gun operated by a trained painter. The operator controls:
- Gun distance.
- Spray angle.
- Movement speed.
- Material flow.
- Air pressure.
- Spray overlap.
- Trigger timing.
- Part orientation.
- Touch-up decisions.
The operator may also prepare coating materials, load parts, inspect the wet film, clean the gun, and move products to the drying area.
High flexibility. A painter can adapt to different product sizes, shapes, colors, and surface conditions.
Strong custom capability. Complex furniture, prototypes, special doors, architectural parts, and repair work can be processed without extensive programming.
Fast visual adjustment. The operator can react to grain direction, recesses, sharp edges, surface defects, and changes in wet-film appearance.
Lower initial investment. A manual booth and spray-gun setup generally costs less than an integrated automated line.
Simple product introduction. A new product may require only operator instruction rather than robot programming and sensor development.
Hand spraying remains valuable wherever adaptability is more important than repeatability.

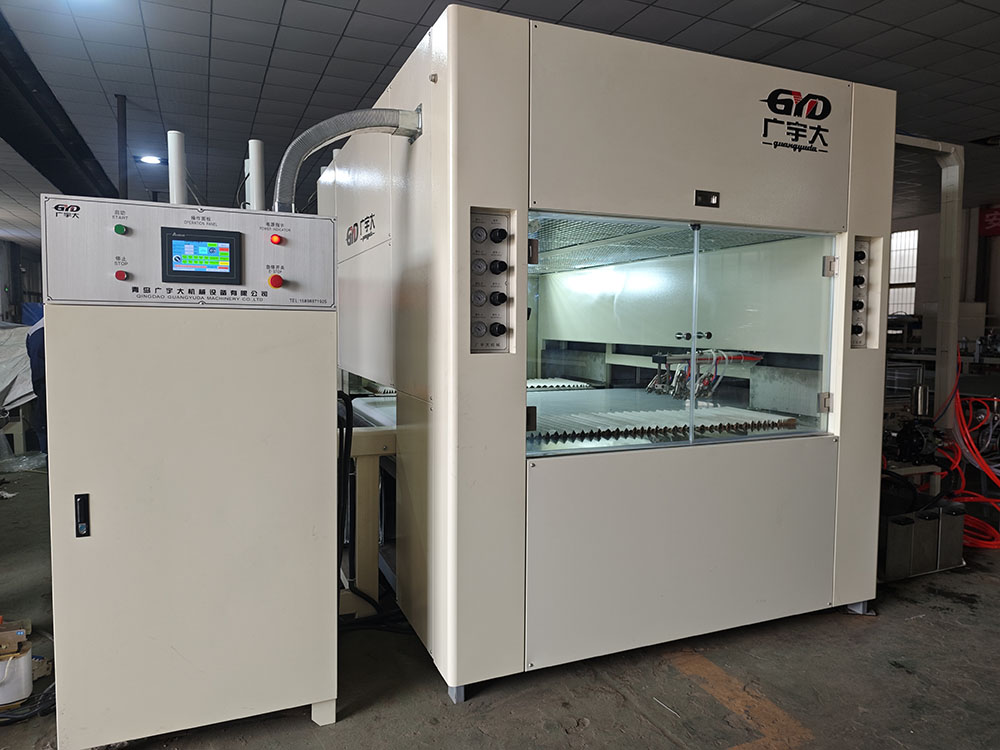

An auto spray machine uses programmed spray guns, reciprocators, robots, pumps, conveyors, sensors, and control systems to apply coatings with limited manual intervention.
A complete automated finishing system may include:
- Automatic loading.
- Dust removal.
- Conveyor transport.
- Automatic or robotic spray guns.
- Recipe-based PLC and HMI controls.
- Automatic color-change equipment.
- Gun-cleaning systems.
- Overspray filtration.
- Flash-off areas.
- Drying or curing equipment.
- Inspection and stacking stations.
The machine can control spray path, gun-to-part distance, travel speed, spray angle, pressure, material flow, trigger timing, number of passes, and coating recipes.
Repeatable application. The same spray path and operating parameters can be reproduced across many parts.
Higher production capacity. Continuous or semi-continuous equipment can process parts with less manual handling.
Lower direct labor per part. Operators supervise the line instead of manually spraying every surface.
Better process records. Recipes and settings can be saved for repeat production.
Improved coating utilization. Programmed movement reduces unnecessary variation and overspray. Automated coating systems are designed to improve transfer efficiency by controlling spray distance, pattern, speed, and material flow. [arnoldmachine]
Easier integration. The spray process can be connected to sanding, drying, inspection, and automatic handling.
Throughput is one of the clearest differences between auto spraying and hand spraying.
Hand spraying is limited by:
- Operator speed.
- Breaks.
- Fatigue.
- Product complexity.
- Number of available painters.
- Manual loading and unloading.
- Touch-up and rework.
An auto spray machine can maintain a defined cycle time for standardized products. It can also operate for longer periods without the variation created by fatigue or changing operator technique.
Industry sources describe automatic coating systems as suitable for high-throughput environments because they reduce manual intervention and maintain stable operating parameters. [arnoldmachine]
However, machine speed alone does not determine finished output. The complete line must also provide enough capacity for:
- Loading.
- Sanding.
- Dust removal.
- Drying.
- Inspection.
- Unloading.
- Packaging.
If drying is the bottleneck, a faster spray machine will not increase accepted production.
Hand spraying can produce excellent results, especially with an experienced painter. The challenge is maintaining the same result across:
- Different operators.
- Different shifts.
- Different production days.
- Different product sizes.
- Long production runs.
Common manual variation comes from:
- Changing gun distance.
- Uneven overlap.
- Inconsistent spray speed.
- Incorrect gun angle.
- Different trigger timing.
- Operator fatigue.
- Changing coating viscosity.
An auto spray machine reduces these variables by programming them into the process. This is particularly valuable for standardized cabinet doors, furniture panels, flooring components, and repeatable wooden-door models.
Automation does not guarantee quality. Incorrect paint viscosity, blocked nozzles, poor part positioning, unstable airflow, or a wrong recipe can produce repeated defects. Automation improves a stable process; it does not replace process engineering.
Hand spraying requires more direct application labor. A factory may need separate workers for:
- Loading.
- Spraying.
- Inspection.
- Touch-up.
- Unloading.
- Cleaning.
As output grows, the factory may need more painters, longer shifts, or additional booths.
An auto spray machine changes the labor structure. The factory may need fewer direct sprayers but still require workers for:
- Loading and unloading.
- Quality inspection.
- Coating preparation.
- Recipe selection.
- Preventive maintenance.
- Filter replacement.
- Troubleshooting.
- Process supervision.
This is not simply a reduction in headcount. It is a shift from repetitive manual work to technical operation and process control.
Transfer efficiency describes how much coating reaches the product compared with the amount leaving the spray gun.
Manual transfer efficiency depends heavily on:
- Operator technique.
- Product geometry.
- Gun selection.
- Spray pressure.
- Coating viscosity.
- Gun maintenance.
A skilled painter can achieve good results, but performance may vary from one operator to another.
Automatic spray systems can improve utilization by controlling:
- Spray pattern.
- Gun distance.
- Spray speed.
- Material flow.
- Trigger timing.
- Overlap.
- Part spacing.
Industry references report that suitable robotic or electrostatic systems can achieve substantially higher transfer efficiency than conventional manual application, although the actual result depends on coating chemistry, part geometry, and equipment configuration. [evsint]
Higher material utilization can reduce:
- Paint purchases.
- Overspray.
- Filter loading.
- Booth cleaning.
- Solvent consumption.
- Waste-disposal costs.
- Rework caused by excessive film buildup.
Do not use a generic savings percentage without testing the actual product and coating. A factory trial is more reliable.
Hand spraying can create rework when the film is too thin, too thick, uneven, contaminated, or visually inconsistent.
Typical defects include:
- Runs and sags.
- Dry spray.
- Orange peel.
- Missed edges.
- Uneven gloss.
- Color variation.
- Excessive coating buildup.
- Poor coverage in recesses.
Rework may require sanding, cleaning, repainting, drying, and reinspection. It also delays delivery and consumes production capacity.
An auto spray machine can reduce variation in spray path, speed, pressure, and distance. This can lower rework for standardized products.
But a machine can repeat an error across an entire batch. Quality assurance should therefore include:
1. Recipe validation.
2. Nozzle and pump inspection.
3. Film-thickness measurement.
4. Color and gloss checks.
5. Edge-coverage inspection.
6. Adhesion testing.
7. Drying and curing verification.
Hand spraying is generally more flexible for high-mix, low-volume production.
It is well suited to:
- Custom furniture.
- One-off doors.
- Prototypes.
- Repair work.
- Special colors.
- Irregular surfaces.
- Small sample batches.
An auto spray machine is generally more efficient for low-mix, high-volume production.
It is well suited to:
- Standard cabinet doors.
- Repeated furniture panels.
- Flooring components.
- Standard wooden doors.
- Glass sheets.
- Fibre cement boards.
Modern automated systems can handle more variation through product recipes, part detection, adjustable fixtures, and robotic programming. However, frequent changes in size, shape, coating, and color can increase programming and cleaning time.
Hand spraying appears flexible because the operator can begin a new product quickly. However, each changeover still requires cleaning, material preparation, fixture adjustment, and quality verification.
Auto spray machines may require more planned setup, including:
- Recipe selection.
- Conveyor-speed adjustment.
- Product detection.
- Fixture changes.
- Spray-path programming.
- Color-change flushing.
- Trial parts.
Once these settings are validated, automated changeovers can be more repeatable and easier to document. Quick color-change systems are specifically designed to reduce flushing and material losses in automatic spray applications. [nordson]
The best approach is to group compatible products into families that share:
- Similar dimensions.
- Similar spray paths.
- Similar coating chemistry.
- Similar drying requirements.
- Similar fixtures.
Many manufacturers compare the number of painters with the number of machines. A better method is to measure total finishing labor per accepted part.
Record:
- Direct spraying hours.
- Loading and unloading time.
- Inspection time.
- Touch-up time.
- Rework time.
- Cleaning time.
- Material preparation time.
- Maintenance time.
- Waiting time before drying.
An automatic spray machine may not eliminate all these activities, but it can reduce the largest labor drivers in repeatable production.
This is particularly important for GYD applications. A factory may need an individual automatic coating machine, an automatic spray booth with conveyor, or a complete line that also handles sanding, drying, inspection, and stacking.
Both hand spraying and automatic spray systems require engineered safety controls.
OSHA identifies spray operations as presenting physical and health hazards. Applicable spray-finishing requirements address:
- Mechanical ventilation.
- Flammable and combustible materials.
- Ignition sources.
- Electrical equipment.
- Booth construction.
- Exhaust systems.
- Fire protection.
- Safe storage and handling.
OSHA's ventilation requirements state that spray rooms must be adequately ventilated to protect the operator's breathing zone. The factory should also evaluate local environmental requirements for VOCs, hazardous air pollutants, waste coating, and solvent disposal. [osha]
Automation may reduce the time workers spend directly in the spray zone, but it does not eliminate the need for PPE, ventilation, training, maintenance, or safe lockout procedures.
- Products are highly customized.
- Production volume is low.
- Dimensions change frequently.
- Short runs are common.
- Skilled craftsmanship adds value.
- Frequent visual adjustment is required.
- Capital investment must remain limited.
- Products are standardized.
- Production volume is stable or growing.
- Multiple shifts are operating.
- Coating consistency is critical.
- Labor availability is limited.
- Rework is expensive.
- Production data and recipe control are valuable.
- The factory plans to add automatic drying and handling.
- The factory produces both standard and custom products.
- Automatic equipment can handle the highest-volume product family.
- Manual capacity is still needed for samples, repairs, or special finishes.
- Management prefers staged investment.
Before choosing a system, complete these steps:
1. Classify products as standard, semi-standard, or custom.
2. Record annual volume and parts per shift.
3. Measure labor hours per accepted part.
4. Record paint consumption and rework.
5. Measure changeover and cleaning time.
6. Identify the current process bottleneck.
7. Define future production requirements.
8. Test representative workpieces with actual coatings.
9. Compare manual, automated, and hybrid scenarios.
10. Establish acceptance criteria for quality and throughput.
Add these visual assets to improve UX:
- Process-flow illustration: Show hand spraying versus automated spraying from loading to inspection.
- Labor comparison graphic: Display direct spraying, inspection, maintenance, and rework tasks.
- Coating-efficiency diagram: Illustrate coating deposited on the part versus overspray.
- Factory video: Demonstrate automatic spraying of cabinet doors or wooden panels.
- Decision-tree infographic: Help readers select manual, automatic, or hybrid equipment.
Photorealistic industrial finishing factory, split-screen comparison of a skilled painter using a manual spray gun on a custom furniture panel and an automated spray machine coating standardized wooden doors and cabinet doors on a conveyor, visible spray guns, drying tunnel, inspection station, clean modern machinery, realistic engineering details, professional B2B editorial style, no logos, no text.
The real production difference is simple:
- Hand spraying provides adaptability.
- Auto spray machines provide repeatability.
- Hybrid systems combine both advantages.
For custom and low-volume products, hand spraying is often more economical and flexible. For standardized, medium- and high-volume production, an auto spray machine usually delivers higher throughput, more consistent quality, lower direct labor per part, and better process data.
The right investment should be based on cost per accepted part, product mix, production volume, rework, coating consumption, and future demand—not only on the purchase price.
Contact GYDFinishing / GYD Machinery with your product dimensions, coating materials, daily output, current staffing, defect rate, and future production goals. GYD Machinery can help determine whether your factory needs hand-spray equipment, an auto spray machine, a hybrid process, or a complete turnkey coating line.
It is usually better for standardized, repeatable, medium- and high-volume production. Hand spraying is often better for custom, irregular, and low-volume products.
No. Workers are still needed for loading, inspection, material preparation, maintenance, programming, and supervision.
An auto spray machine generally provides better part-to-part consistency because it controls spray path, distance, speed, pressure, and timing.
Hand spraying usually has a lower initial cost. It may have higher operating costs when labor, rework, paint waste, and limited throughput are included.
Yes, if the system includes appropriate recipes, sensors, fixtures, conveyor adjustments, or robotic programming.
Automatic spraying is usually better for standardized product families. Hand spraying or hybrid production may be better for custom designs and special finishes.
Test film thickness, color, gloss, edge coverage, adhesion, drying, cycle time, coating consumption, changeover time, and accepted output using real production workpieces.
1. [OSHA — Spray Operations Standards] — Standards relevant to industrial spray-finishing operations.
2. [OSHA — 29 CFR 1910.94: Ventilation] — Ventilation requirements for spray rooms and industrial operations.
3. [eCFR — 29 CFR 1910.107: Spray Finishing Using Flammable and Combustible Materials] — Requirements for spray-finishing areas, ventilation, flammable materials, and electrical safety.
4. [Arnold Machine — Automated Spray Coating Systems] — Information on automated coating systems, consistency, throughput, and material utilization.
5. [Arnold Machine — Benefits of Automated Spray Coating Systems] — Explanation of transfer efficiency and automated coating performance.
6. [Canadian Metalworking — Don't Be Afraid of Paint Automation] — Industry discussion of robotics, throughput, part presentation, labor, and finishing challenges.
7. [Nordson — Plug and Spray Quick Color Change System] — Example of quick color-change technology for spray applications.
8. [Graco — Paint Automation and Robotic Paint Systems] — Information on automatic spray guns, fluid control, and color-change systems.
9. [CEFla Finishing — Automatic Spray Coating Systems] — Industry discussion of automated finishing for wood and furniture surfaces.
10. [GYDFinishing — Auto Spray Machine vs Manual Spray Gun] — Manufacturer context for automated and manual factory spraying.
