Choosing between a batch spray booth and a conveyor spray booth is one of the most important decisions in industrial finishing. The choice affects throughput, labor, coating consistency, changeover flexibility, factory layout, and long-term scalability.
A batch spray booth is typically used for discrete, non-continuous production where workpieces are loaded, sprayed, and unloaded in separate cycles. A conveyor spray booth is designed for continuous production where parts move through the booth on a conveyor system, often integrated with drying, inspection, and handling.
For manufacturers of wooden doors, furniture, cabinet doors, flooring, glass, and fibre cement products, the correct choice depends on production volume, product standardization, changeover frequency, and future growth plans.
GYDFinishing—also known as GYD Machinery—has supplied machinery and surface-finishing solutions since 2007. Drawing on worldwide practical experience and more than two decades of technological heritage, GYD Machinery develops automatic coating equipment ranging from individual machines to complete turnkey production lines.
A batch spray booth processes workpieces in separate production cycles.
A typical batch operation includes:
- Loading parts into the booth.
- Spraying one or more operators.
- Unloading finished parts.
- Cleaning or reconfiguring for the next batch.
- Repeating the cycle.
Batch booths may be open-face, enclosed, downdraft, crossdraft, or side-draft designs. They may be used for manual spraying, robotic spraying, or a combination.
High flexibility. Batch booths can handle different product sizes, shapes, and coatings with minimal reconfiguration.
Lower initial investment. Batch systems usually require less equipment than a complete conveyorized line.
Suitable for custom work. Irregular dimensions, short runs, prototypes, and special finishes can be processed efficiently.
Simple maintenance. Batch booths generally have fewer moving parts than conveyor systems.
Easier to expand gradually. A factory can add more batch booths as demand increases.
Batch spray booths are often used by custom furniture manufacturers, architectural-product workshops, repair operations, and factories with many product variations.
Lower throughput. Production is limited by loading, spraying, and unloading cycles.
Higher labor per part. Each batch may require manual handling and operator time.
Quality variation. Different operators may produce different results across batches.
Changeover downtime. Cleaning and reconfiguration between batches can consume time.
Difficult to standardize. Output may vary according to operator skill, fatigue, and product complexity.
Batch booths are flexible but may struggle to maintain consistent output when production volume grows.

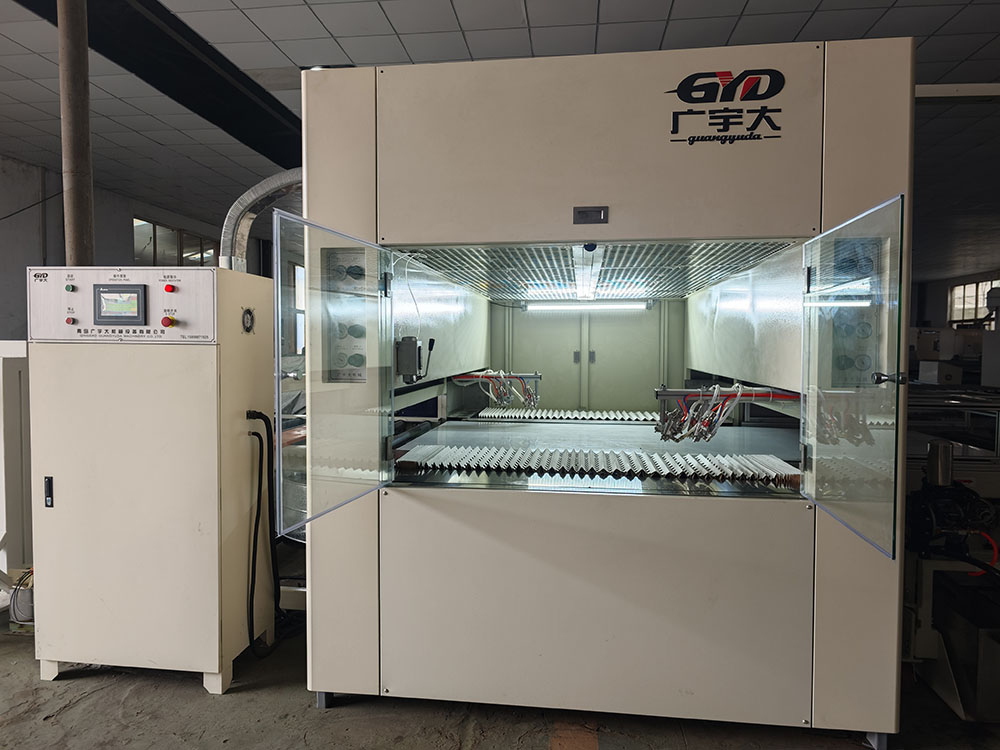

A conveyor spray booth is part of a continuous production line where workpieces move through the booth on a conveyor system.
A typical conveyorized finishing line may include:
- Automatic loading.
- Dust removal.
- Conveyor transport.
- Spray booth with automatic or manual guns.
- Flash-off zone.
- Drying or curing oven.
- Inspection station.
- Automatic unloading and stacking.
Conveyor systems may use overhead conveyors, monorails, power-and-free conveyors, or flat conveyors depending on the product.
Higher throughput. Continuous movement allows more parts to be processed per hour.
Lower labor per part. Operators can supervise the line rather than handling every part manually.
Better consistency. Stable conveyor speed and programmed spray parameters reduce variation.
Easier integration. Conveyor booths can connect with sanding, drying, inspection, and material handling.
Predictable output. Production capacity is easier to forecast.
Scalability. Additional modules can be added to increase capacity.
Conveyor spray booths are well suited for standardized cabinet doors, furniture panels, wooden doors, flooring components, glass sheets, and fibre cement boards.
Higher initial investment. Conveyor systems require more equipment, engineering, and installation.
Less flexibility for irregular products. Very large or unusual shapes may be difficult to handle.
More complex maintenance. Conveyors, drives, and controls require specialized maintenance.
Changeover planning. Product changes may require conveyor adjustments, fixture changes, or recipe updates.
Longer commissioning. Conveyor lines may take more time to install and validate.
Conveyor booths are powerful for repeatable production but may be less suitable for highly customized work.
| Factor | Batch spray booth | Conveyor spray booth |
|---|---|---|
| Production type | Discrete batches | Continuous flow |
| Initial investment | Lower | Higher |
| Throughput | Lower | Higher |
| Labor per part | Higher | Lower |
| Product flexibility | Excellent | Best for standardized products |
| Changeover flexibility | High | Requires planning |
| Coating consistency | Operator-dependent | More stable |
| Integration potential | Limited | Strong |
| Maintenance complexity | Simpler | More technical |
| Scalability | Add more booths | Add line modules |
| Best application | Custom and low-volume | Medium- and high-volume |
The most important factor is production volume and utilization.
A batch booth may be more economical when:
- Annual production is low.
- Orders are unpredictable.
- Products change frequently.
- The factory produces prototypes.
- Capital availability is limited.
A conveyor booth may be more economical when:
- Production is stable or growing.
- Products are standardized.
- Multiple shifts are operating.
- Quality must remain consistent.
- Labor availability is a concern.
- The factory wants automatic drying and handling.
The correct decision is not based only on current production. It should consider the next three to five years of demand.
Changeover frequency affects both systems differently.
Batch booths can change products quickly because the operator adapts immediately. However, each change may require:
- Cleaning the booth.
- Changing fixtures.
- Adjusting spray parameters.
- Training operators.
- Validating quality.
Frequent changeovers can reduce effective capacity.
Conveyor booths may require more planning for product changes. The system may need:
- Recipe updates.
- Conveyor-speed adjustments.
- Fixture changes.
- Spray-path modifications.
- Trial parts.
However, once validated, a conveyor system can repeat the same process reliably across many batches.
For factories with defined product families, conveyor systems can manage changeovers efficiently through recipe control and part detection.
Coating consistency is often better in conveyor spray booths because:
- Conveyor speed is stable.
- Spray parameters are programmed.
- Gun distance is controlled.
- Part orientation is repeatable.
- Recipes can be stored and recalled.
Batch booths depend more on operator skill. A skilled painter can produce excellent results, but consistency across operators and shifts is more difficult.
For products requiring strict film-thickness control, color consistency, and appearance standards, conveyor systems usually provide better repeatability.
Labor costs differ significantly between the two systems.
- Direct spraying labor is higher.
- Loading and unloading are manual.
- Cleaning between batches consumes time.
- Rework may increase with volume.
- Additional operators are needed for growth.
- Operators supervise the line.
- Loading and unloading may be automated.
- Maintenance is more technical.
- Fewer direct spraying positions are required.
- Output per operator is higher.
The total cost per accepted part should include:
- Direct labor.
- Indirect labor.
- Coating consumption.
- Energy.
- Maintenance.
- Rework.
- Depreciation.
A conveyor system may have higher depreciation but lower variable costs at sufficient volume.
Both batch and conveyor spray booths must meet safety and environmental standards.
OSHA identifies spray operations as presenting physical and health hazards. Its spray-finishing requirements address ventilation, flammable and combustible materials, ignition sources, electrical equipment, and operating controls. [govinfo]
Key requirements include:
- Mechanical ventilation during spraying and afterward. [michigan]
- Adequate exhaust to remove flammable vapors and mists. [connect.ncdot]
- Air velocity of at least 100 feet per minute for conventional booths. [cdc]
- Exhaust systems designed according to NFPA standards. [law.cornell]
- Ventilation sufficient to keep vapor concentrations below 25 percent of the lower explosive limit. [dli.mn]
- Noncombustible booth construction. [legalclarity]
- Proper exhaust termination away from combustible structures. [legalclarity]
Conveyor systems may reduce direct worker exposure to spray mist, but they still require compliant booth design, training, and safe maintenance.
Many factories do not need to choose only one system. A hybrid finishing department can include:
- Batch spray booths for custom work and prototypes.
- Conveyor spray booths for standardized products.
- Manual touch-up after automatic coating.
- Shared drying and inspection resources.
This approach provides flexibility where it is needed and efficiency where repetition exists.
For example, a furniture manufacturer may use a conveyor line for standard cabinet doors and a batch booth for custom dining tables. A door manufacturer may use a conveyor system for standard models and a batch booth for special finishes.
Before selecting a spray booth, complete the following steps:
1. Define product families. Group products by dimensions, shapes, coatings, and volumes.
2. Measure current production. Record parts per shift, labor hours, coating consumption, and defects.
3. Forecast future demand. Consider new customers, additional shifts, and product expansion.
4. Evaluate factory layout. Check available space, ceiling height, utilities, and material flow.
5. Assess utilities. Confirm electrical capacity, compressed air, ventilation, and drying requirements.
6. Test representative products. Use actual workpieces and coatings in a supplier trial.
7. Compare total costs. Include labor, coating, energy, maintenance, rework, and depreciation.
8. Plan for growth. Design the system to accommodate future capacity increases.
9. Define acceptance criteria. Specify film thickness, appearance, cycle time, and accepted output.
Enhance the article with:
- Production-flow diagram: Show batch versus conveyor production sequences.
- Factory layout illustration: Display batch booths and conveyor lines in a finishing department.
- Throughput chart: Compare parts per hour for batch and conveyor systems.
- Video demonstration: Show a conveyorized coating line in operation.
- Safety infographic: Highlight ventilation, exhaust, and fire-protection requirements.
"Photorealistic industrial finishing factory, split-screen comparison of a batch spray booth processing custom furniture and a conveyor spray booth coating standardized wooden doors, cabinet doors and flooring panels, visible spray guns, conveyor system, drying oven, inspection station, clean modern machinery, realistic engineering details, professional B2B editorial style, no logos, no text."
For custom, low-volume, and frequently changing products, a batch spray booth is usually the better choice because of its flexibility and lower initial investment.
For standardized, medium- and high-volume production, a conveyor spray booth is generally better because it provides higher throughput, lower labor per part, better consistency, and easier integration with drying and handling.
For factories producing both types of products, a hybrid system combining batch and conveyor equipment may offer the best balance.
The correct decision should be based on production data, product mix, future growth plans, and total cost per accepted part—not only equipment price.
Contact GYDFinishing / GYD Machinery with your product dimensions, coating materials, production volume, current labor structure, and quality requirements. GYD Machinery can help determine whether your factory needs a batch spray booth, conveyor spray booth, hybrid system, or complete turnkey coating line.
A batch spray booth processes workpieces in separate cycles, while a conveyor spray booth processes parts continuously on a conveyor system.
A batch spray booth is usually better for custom furniture because it can handle different sizes, shapes, and finishes with minimal reconfiguration.
Yes, if the products belong to defined families and the system includes suitable fixtures, recipes, and part detection.
Usually, yes. Conveyor systems require more equipment, engineering, and installation than a single batch booth.
Conveyor spray booths generally provide better part-to-part consistency because conveyor speed and spray parameters are more stable.
Yes. Many factories use batch booths for custom work and conveyor booths for standardized products.
Both systems must meet OSHA requirements for ventilation, flammable materials, ignition sources, electrical equipment, exhaust systems, and safe operating procedures.
