Automatic spray painting machines are designed to apply paint, varnish, lacquer, and other coatings to a variety of products with precision and consistency. They are suitable for painting furniture parts, doors, panels, and other components of varying dimensions. The adaptability of these machines makes them a valuable asset in various manufacturing settings.
Specific Capabilities:
* Size and Weight Handling: Automatic spray painting machines can handle parts with lengths ranging from 300 to 4,000 mm, widths from 5 to 1,200 mm, and heights from 5 to 80 mm, with a maximum part weight of 75 kg. This capacity allows for a wide range of product sizes, from small components to larger panels.
* Material Compatibility: These machines are compatible with all kinds of paints, including PU, PE, UV, NC, and water-based materials. The ability to work with different paint types enhances their versatility, making them suitable for various industries with different coating requirements.

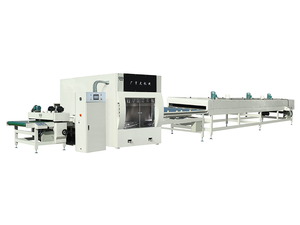

* Versatility: Automatic spray painting machines can be integrated into complete finishing lines, including belt conveyors, laminar flow tunnels, UV dryers, and roller conveyors. They can also handle non-flat workpieces, providing an optimum surface result. This adaptability streamlines production processes and ensures high-quality finishing.
An automatic paint spraying machine consists of several key components that work together to ensure efficient and precise coating application. Understanding these components is crucial for operating and maintaining the machine effectively.
Key Components:

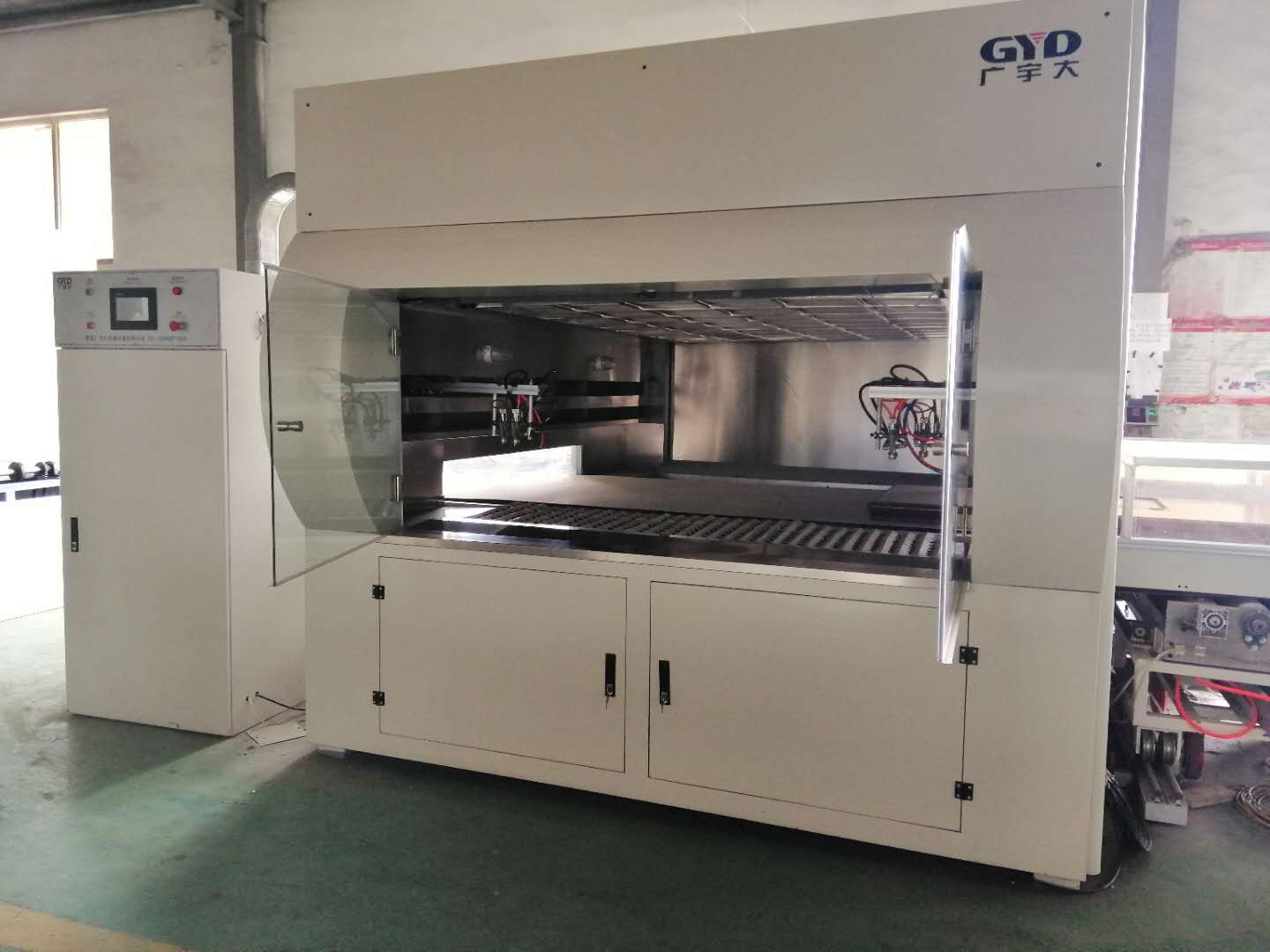

* Spray Painting Machine Body: Includes a supply and exhaust ventilation system, paintwork material recuperation, and a hydraulic filter. The body is often made of stainless steel for durability and resistance to corrosion. The ventilation system ensures a safe and clean working environment, while the hydraulic filter maintains the purity of the paint supply.
* Spray Guns: The number of spray guns can vary, with a basic set typically including four guns and the option to install up to eight. The types of spray guns include AirPro Automatic spray guns, AirPro EFX air spray automatic guns and AL Series Automatic spray guns. The choice of spray gun affects the quality and efficiency of the coating process.
* Conveyor System: A belt conveyor with smooth, stepless speed control is used for part feeding. The feed speed is adjustable during operation, and the current speed is displayed digitally. The feed belt is antistatic and highly resistant to mechanical and chemical exposure. This precise control allows for optimizing the coating process for different materials and paint types.
* PLC and Control Systems: Programmable logic controllers (PLCs) and frequency controllers, often from brands like Matsushita, are used to control the machine's operation. These systems allow for automatic recognition of a part's position and size. The PLCs enable complex automation sequences, enhancing efficiency and accuracy.
* Pneumatic System: Includes pneumatic cylinders and electro-pneumatic solenoid valves for actuating the paint gun and controlling its movement. The pneumatic system ensures the precise and reliable operation of the spray guns.
* Filtration System: A 3-stage air purification system includes a pre-filter, fine filter, and hydraulic filter. This system ensures that the air used in the spraying process is clean, preventing contamination and maintaining the quality of the coating.
* Paint Delivery System: Includes a piston pump for delivering paint to the spray guns. The piston pump ensures a consistent and reliable supply of paint, which is crucial for maintaining the uniformity of the coating.
Automatic paint spraying machines incorporate several advanced technical features to optimize performance and efficiency. These features contribute to the machines' ability to deliver high-quality, consistent results.
Technical Features:
* Automatic Part Recognition: A system for automatic recognition of a part's position and size helps to ensure accurate and consistent coating. Sensors detect the dimensions and orientation of the part, allowing the spray guns to adjust their spray patterns accordingly.
* Paintwork Material Recuperation: An automatically adjusted paintwork material recuperation system collects overspray for possible reuse. A pull-out recuperation unit minimizes setup time when changing paint types. This feature reduces waste and lowers operating costs by recycling unused paint.
* Ventilation System: A supply and exhaust ventilation system with 3-stage air purification ensures a clean and safe operating environment. This system protects workers from harmful fumes and dust particles, maintaining a healthy workplace.
* Hydraulic Filter: A stainless steel hydraulic filter is particularly effective in high-capacity painting. It removes impurities from the paint, ensuring a smooth and consistent finish.
There are various types of automatic spray painting machines designed to meet specific needs and applications.
Types of Machines:
* Flatbed Spray Painting Machines: Ideal for coating flat surfaces like doors, panels, and furniture components. These machines provide consistent and uniform coverage.
* Robotic Spray Painting Machines: Use robotic arms for precise and flexible spraying, suitable for complex shapes and intricate designs.
* Rotary Spray Painting Machines: Used for coating cylindrical or round objects, providing even coverage through rotation.
* Linear Spray Painting Machines: Designed for long, continuous objects like pipes and profiles, ensuring consistent coating along the entire length.
Automatic paint spraying machines are used in various industries due to their efficiency, precision, and versatility.
Applications:
* Furniture Industry: Coating wooden furniture, panels, and components with varnishes, lacquers, and paints.
* Automotive Industry: Painting car bodies, parts, and accessories with high precision and consistency.
* Electronics Industry: Applying protective coatings to electronic components and devices.
* Aerospace Industry: Coating aircraft parts with specialized paints and coatings for protection and performance.
* Appliance Industry: Painting refrigerators, washing machines, and other appliances with durable and aesthetically pleasing finishes.
* Construction Industry: Coating building materials, doors, and windows with protective paints and coatings.
The adoption of automatic paint spraying machines offers numerous advantages over manual spraying methods. These benefits translate into improved productivity, reduced costs, and higher-quality products.
Advantages:
* Increased Efficiency: Automated spraying can significantly increase production speed. For example, automated spraying can spray 15-18 doors per minute compared to manual spraying completing only 3-4 doors per minute. This increased throughput allows manufacturers to meet higher demands and reduce lead times.
* Improved Consistency: Machines provide a more uniform coating quality, reducing the likelihood of defects and inconsistencies. This results in fewer rejects and rework, leading to cost savings and improved customer satisfaction.
* Reduced Labor Costs: Automation reduces the need for manual labor, lowering overall production costs. This allows businesses to allocate resources to other critical areas and improve their overall profitability.
* Higher Transfer Efficiency: Automated systems can achieve higher transfer efficiency, minimizing paint waste. This not only reduces material costs but also minimizes environmental impact.
* Safer Working Environment: Enclosed systems and advanced filtration reduce worker exposure to harmful chemicals and fumes. This creates a healthier and safer workplace, reducing the risk of occupational illnesses and injuries.
Selecting the right automatic paint spraying machine requires careful consideration of various factors to ensure it meets specific needs and requirements.
Factors to Consider:
* Production Volume: Determine the required production capacity to choose a machine that can handle the workload efficiently.
* Part Size and Shape: Ensure the machine can accommodate the dimensions and shapes of the parts to be coated.
* Paint Type: Verify the machine is compatible with the types of paints and coatings to be used.
* Budget: Consider the initial investment, operating costs, and maintenance expenses to choose a machine that fits within the budget.
* Available Space: Ensure the machine fits within the available floor space in the production facility.
* Integration Requirements: Consider the compatibility of the machine with existing production lines and equipment.
* Maintenance and Support: Evaluate the availability of maintenance services, spare parts, and technical support from the manufacturer.
Regular maintenance and proper troubleshooting are essential for ensuring the optimal performance and longevity of automatic paint spraying machines.
Maintenance Tips:
* Daily Cleaning: Clean spray guns, nozzles, and filters daily to prevent clogs and ensure consistent performance.
* Regular Inspections: Inspect the machine regularly for worn or damaged parts and replace them promptly.
* Lubrication: Lubricate moving parts according to the manufacturer's recommendations to reduce friction and wear.
* Filter Replacement: Replace air and fluid filters regularly to maintain air and paint purity.
* Calibration: Calibrate the machine periodically to ensure accurate and consistent coating application.
Troubleshooting Tips:
* Uneven Coating: Check spray gun nozzles for clogs or damage, adjust spray patterns, and verify paint viscosity.
* Paint Drips: Adjust air pressure, check for loose connections, and ensure proper nozzle alignment.
* Air Bubbles: Check for air leaks in the paint supply system and ensure proper mixing of paint components.
* Inconsistent Performance: Check electrical connections, pneumatic lines, and control systems for malfunctions.
Q1: What types of paints can be used with automatic spray painting machines?
A: Automatic spray painting machines are suitable for spraying all kinds of paints, including PU, PE, UV, NC, and water-based materials.
Q2: What are the ideal climatic conditions for operating these machines?
A: The ideal conditions include an outside temperature of 10-30°C and relative humidity of 40-70%. The machines should also be protected from direct sun rays.
Q3: What maintenance is required for automatic spray painting machines?
A: Regular maintenance includes cleaning the spray guns, filters, and conveyor system. Also, checking and replacing worn parts, and ensuring the proper functioning of the electrical and pneumatic systems.
Q4: Can these machines be integrated into existing production lines?
A: Yes, automatic spray painting machines can be integrated into complete finishing lines, including belt conveyors, laminar flow tunnels, UV dryers, and roller conveyors.
Q5: What safety features are included in automatic spray painting machines?
A: Safety features include enclosed systems, supply and exhaust ventilation, and 3-stage air purification to minimize worker exposure to harmful chemicals and fumes.
Q6: How do I choose the right spray gun for my application?
A: Consider factors such as the type of paint, the size and shape of the parts, and the desired finish quality. Consult with a spray gun supplier for expert advice.
Q7: What is the typical lifespan of an automatic paint spraying machine?
A: With proper maintenance, an automatic paint spraying machine can last for 10-15 years or more.
