The choice between a conveyor spray booth and a batch spray booth is fundamentally a question of production volume, product standardization, and future growth. A batch spray booth processes workpieces in discrete cycles and is ideal for custom, low-volume, or frequently changing products. A conveyor spray booth moves parts continuously through the booth and is designed for standardized, medium- to high-volume production.
For manufacturers of wooden doors, furniture, cabinet doors, flooring, glass, and fibre cement products, selecting the right system affects throughput, labor, coating consistency, changeover flexibility, factory layout, and long-term return on investment.
GYDFinishing—also known as GYD Machinery—has supplied machinery and surface-finishing solutions since 2007. With worldwide hands-on experience and more than two decades of technological heritage, GYD Machinery develops automatic coating equipment ranging from individual machines to complete turnkey production lines.
Production volume is the primary driver in choosing between a conveyor spray booth and a batch spray booth.
Low to medium production volumes, or operations handling many different part types, often favor a batch-type spray booth that can be loaded and unloaded manually or with simple fixtures. High-volume lines, especially those running a limited range of part geometries, benefit from a spray booth integrated into a continuously moving conveyor system. [ourscoatingline]
Production volume should be evaluated in terms of:
- Parts per shift.
- Shifts per day.
- Operating days per year.
- Product families.
- Batch sizes.
- Changeover frequency.
- Future growth expectations.
A system that fits today's volume may not fit next year's demand. The decision should consider the next three to five years of production, not only current output.
A batch spray booth processes workpieces in separate production cycles.
A typical batch operation includes:
- Loading parts into the booth.
- Spraying by one or more operators.
- Unloading finished parts.
- Cleaning or reconfiguring for the next batch.
- Repeating the cycle.
Batch booths may be open-face, enclosed, downdraft, crossdraft, or side-draft designs. They may be used for manual spraying, robotic spraying, or a combination.
High flexibility. Batch booths can handle different product sizes, shapes, and coatings with minimal reconfiguration.
Lower initial investment. Batch systems usually require less equipment than a complete conveyorized line.
Suitable for custom work. Irregular dimensions, short runs, prototypes, and special finishes can be processed efficiently.
Simple maintenance. Batch booths generally have fewer moving parts than conveyor systems.
Easier to expand gradually. A factory can add more batch booths as demand increases.
Lower throughput. Production is limited by loading, spraying, and unloading cycles.
Higher labor per part. Each batch may require manual handling and operator time.
Quality variation. Different operators may produce different results across batches.
Changeover downtime. Cleaning and reconfiguration between batches can consume time.
Difficult to standardize. Output may vary according to operator skill, fatigue, and product complexity.
Batch spray booths are flexible but may struggle to maintain consistent output when production volume grows significantly.

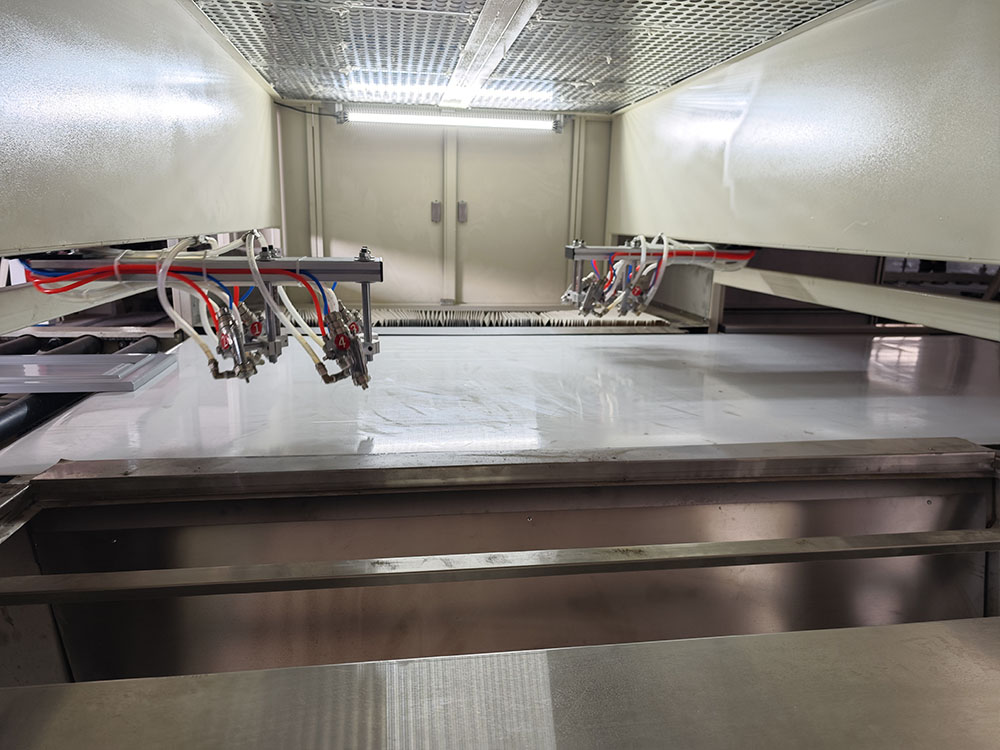

A conveyor spray booth is part of a continuous production line where workpieces move through the booth on a conveyor system.
A typical conveyorized finishing line may include:
- Automatic loading.
- Dust removal.
- Conveyor transport.
- Spray booth with automatic or manual guns.
- Flash-off zone.
- Drying or curing oven.
- Inspection station.
- Automatic unloading and stacking.
Conveyor systems may use overhead conveyors, monorails, power-and-free conveyors, or flat conveyors depending on the product.
Higher throughput. Continuous movement allows more parts to be processed per hour. Industry data indicates that adding a conveyor to a paint booth can increase throughput three to five times compared with manual cart-in and cart-out batch operation. [pfsspraybooths]
Lower labor per part. Operators can supervise the line rather than handling every part manually.
Better consistency. Stable conveyor speed and programmed spray parameters reduce variation.
Easier integration. Conveyor booths can connect with sanding, drying, inspection, and material handling.
Predictable output. Production capacity is easier to forecast.
Scalability. Additional modules can be added to increase capacity.
Higher initial investment. Conveyor systems require more equipment, engineering, and installation.
Less flexibility for irregular products. Very large or unusual shapes may be difficult to handle.
More complex maintenance. Conveyors, drives, and controls require specialized maintenance.
Changeover planning. Product changes may require conveyor adjustments, fixture changes, or recipe updates.
Longer commissioning. Conveyor lines may take more time to install and validate.
Conveyor spray booths are powerful for repeatable production but may be less suitable for highly customized work.
For low-volume production, a batch spray booth is usually the better choice.
- Products may change frequently.
- Batch sizes are small.
- Capital investment should remain controlled.
- Flexibility is more valuable than maximum throughput.
For medium-volume production, the decision depends on product standardization.
- If products are standardized, a conveyor spray booth can provide better consistency and lower labor per part.
- If products change frequently, a batch spray booth or hybrid system may be more practical.
For high-volume production, a conveyor spray booth is generally the better choice.
- Products are usually standardized.
- Throughput is critical.
- Labor efficiency is important.
- Consistency and repeatability are essential.
- Integration with drying and handling is valuable.
Industry experience shows that continuous-flow conveyor systems can increase capacity three to six times compared with batch operation without adding shifts. [pfsspraybooths]
Changeover frequency affects both systems differently.
Batch booths can change products quickly because the operator adapts immediately. However, each change may require cleaning the booth, changing fixtures, adjusting spray parameters, and validating quality. Frequent changeovers can reduce effective capacity.
Conveyor booths may require more planning for product changes. The system may need recipe updates, conveyor-speed adjustments, fixture changes, spray-path modifications, and trial parts. However, once validated, a conveyor system can repeat the same process reliably across many batches.
For factories with defined product families, conveyor systems can manage changeovers efficiently through recipe control and part detection.
Labor costs differ significantly between the two systems.
Direct spraying labor is higher. Loading and unloading are manual. Cleaning between batches consumes time. Rework may increase with volume. Additional operators are needed for growth.
Operators supervise the line. Loading and unloading may be automated. Maintenance is more technical. Fewer direct spraying positions are required. Output per operator is higher.
The total cost per accepted part should include direct labor, indirect labor, coating consumption, energy, maintenance, rework, and depreciation. A conveyor system may have higher depreciation but lower variable costs at sufficient volume.
Coating consistency is often better in conveyor spray booths because conveyor speed is stable, spray parameters are programmed, gun distance is controlled, part orientation is repeatable, and recipes can be stored and recalled.
Batch booths depend more on operator skill. A skilled painter can produce excellent results, but consistency across operators and shifts is more difficult.
For products requiring strict film-thickness control, color consistency, and appearance standards, conveyor systems usually provide better repeatability.
Both batch and conveyor spray booths must meet safety and environmental standards.
OSHA identifies spray operations as presenting physical and health hazards. Its spray-finishing requirements address ventilation, flammable and combustible materials, ignition sources, electrical equipment, and operating controls.
Key requirements include mechanical ventilation during spraying and afterward, adequate exhaust to remove flammable vapors and mists, air velocity of at least 100 feet per minute for conventional booths, exhaust systems designed according to NFPA standards, ventilation sufficient to keep vapor concentrations below 25 percent of the lower explosive limit, noncombustible booth construction, and proper exhaust termination away from combustible structures.
Conveyor systems may reduce direct worker exposure to spray mist, but they still require compliant booth design, training, and safe maintenance.
Many factories do not need to choose only one system. A hybrid finishing department can include batch spray booths for custom work and prototypes, conveyor spray booths for standardized products, manual touch-up after automatic coating, and shared drying and inspection resources.
This approach provides flexibility where it is needed and efficiency where repetition exists. For example, a furniture manufacturer may use a conveyor line for standard cabinet doors and a batch booth for custom dining tables. A door manufacturer may use a conveyor system for standard models and a batch booth for special finishes.
Before selecting a spray booth, complete the following steps:
1. Define product families by dimensions, shapes, coatings, and volumes.
2. Measure current production including parts per shift, labor hours, coating consumption, and defects.
3. Forecast future demand considering new customers, additional shifts, and product expansion.
4. Evaluate factory layout including available space, ceiling height, utilities, and material flow.
5. Assess utilities including electrical capacity, compressed air, ventilation, and drying requirements.
6. Test representative products using actual workpieces and coatings in a supplier trial.
7. Compare total costs including labor, coating, energy, maintenance, rework, and depreciation.
8. Plan for growth by designing the system to accommodate future capacity increases.
9. Define acceptance criteria for film thickness, appearance, cycle time, and accepted output.
Enhance the article with:
- Production-flow diagram showing batch versus conveyor production sequences.
- Factory layout illustration displaying batch booths and conveyor lines in a finishing department.
- Throughput chart comparing parts per hour for batch and conveyor systems.
- Video demonstration showing a conveyorized coating line in operation.
- Safety infographic highlighting ventilation, exhaust, and fire-protection requirements.
Photorealistic industrial finishing factory, split-screen comparison of a batch spray booth processing custom furniture and a conveyor spray booth coating standardized wooden doors, cabinet doors and flooring panels, visible spray guns, conveyor system, drying oven, inspection station, clean modern machinery, realistic engineering details, professional B2B editorial style, no logos, no text.
For custom, low-volume, and frequently changing products, a batch spray booth is usually the better choice because of its flexibility and lower initial investment.
For standardized, medium- and high-volume production, a conveyor spray booth is generally better because it provides higher throughput, lower labor per part, better consistency, and easier integration with drying and handling.
For factories producing both types of products, a hybrid system combining batch and conveyor equipment may offer the best balance.
The correct decision should be based on production data, product mix, future growth plans, and total cost per accepted part—not only equipment price.
Contact GYDFinishing / GYD Machinery with your product dimensions, coating materials, production volume, current labor structure, and quality requirements. GYD Machinery can help determine whether your factory needs a batch spray booth, conveyor spray booth, hybrid system, or complete turnkey coating line.
A batch spray booth processes workpieces in separate cycles, while a conveyor spray booth processes parts continuously on a conveyor system.
A batch spray booth is usually better for low production volume because it offers flexibility and lower initial investment.
Yes, if the products belong to defined families and the system includes suitable fixtures, recipes, and part detection.
Usually, yes. Conveyor systems require more equipment, engineering, and installation than a single batch booth.
Conveyor spray booths generally provide better part-to-part consistency because conveyor speed and spray parameters are more stable.
Yes. Many factories use batch booths for custom work and conveyor booths for standardized products.
Both systems must meet OSHA requirements for ventilation, flammable materials, ignition sources, electrical equipment, exhaust systems, and safe operating procedures.
