When manufacturers compare a robotic spray system vs a reciprocating sprayer, the most important issue is not simply automation level. It is which system can maintain correct gun angle, distance, speed, and overlap when product dimensions, geometry, and surface orientation change.

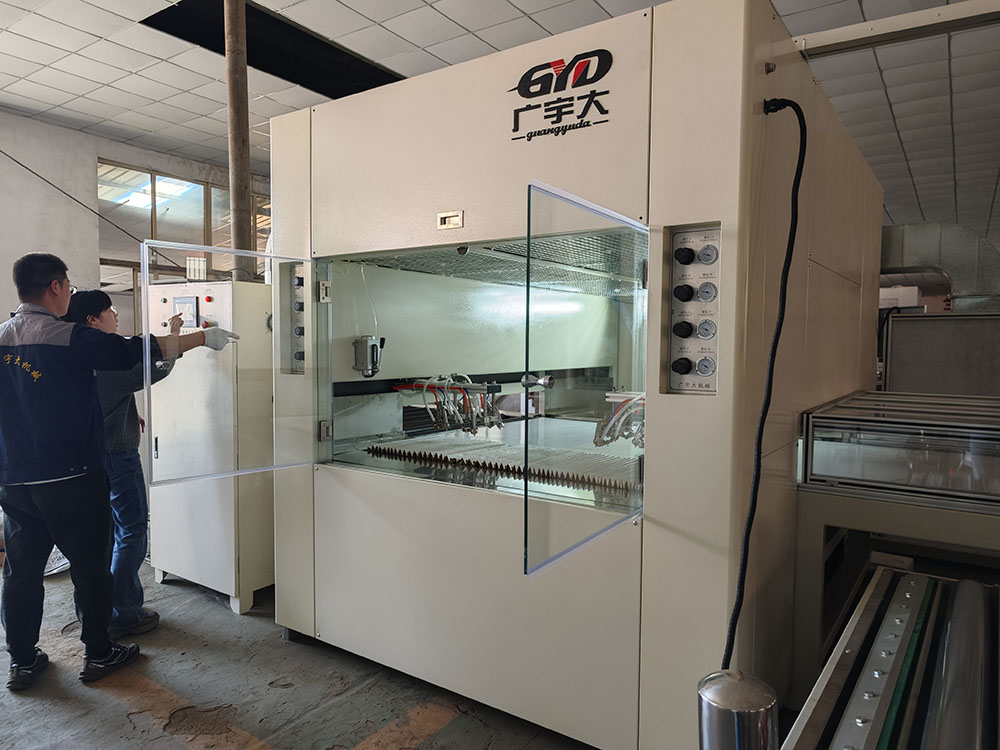

A reciprocating sprayer moves spray guns along a fixed vertical or horizontal path. It is highly effective for flat panels and standardized products. A robotic spray system uses a multi-axis robot arm to follow flexible paths around complex workpieces and changing product sizes.
For wooden doors, furniture, cabinet doors, flooring, glass, and fibre cement products, neither technology is universally better. Reciprocating sprayers usually provide the best value for high-volume, standardized products. Robotic spray systems are generally better for complex geometries, mixed product sizes, and flexible production.
GYDFinishing—also known as GYD Machinery—has supplied machinery and surface-finishing solutions since 2007. Drawing on global experience and more than two decades of technological heritage, GYD Machinery develops automatic coating equipment ranging from individual machines to complete turnkey production lines.
A reciprocating sprayer moves one or more spray guns back and forth along a controlled linear axis while workpieces pass through the spray zone on a conveyor.
The system may control:
- Gun travel speed.
- Gun-to-part distance.
- Spray-gun activation.
- Coating flow.
- Atomizing pressure.
- Conveyor speed.
- Spray overlap.
- Number of passes.
- Product recipes.
- Gun height and stroke length.
Reciprocating sprayers are commonly used for:
- Cabinet doors.
- Furniture panels.
- Flat wooden doors.
- Flooring boards.
- Glass sheets.
- Fibre cement panels.
- Other flat or regularly shaped products.
High throughput. A fixed linear movement is efficient for continuous production.
Strong repeatability. The same spray pattern can be repeated on compatible workpieces.
Lower capital cost. A reciprocating system is generally less expensive than a multi-axis robotic cell.
Simple operation. Operators can manage recipes, material supply, conveyor speed, and routine maintenance without advanced robot programming.
Lower programming requirements. New products within the machine's working range may require parameter changes rather than completely new spray paths.
Predictable maintenance. The system is mechanically simpler than a multi-axis robot.
A reciprocating sprayer may struggle when:
- Product dimensions change significantly.
- Surfaces are curved or irregular.
- Deep recesses block the spray path.
- Edges require different angles.
- The workpiece has complex geometry.
- Product orientation is inconsistent.
- The spray path must change continuously.
A reciprocator repeats a defined movement. If the workpiece geometry exceeds the design range, edge coverage and recess coverage may become inconsistent.
A robotic spray system uses a programmable robot arm to move spray guns through multiple axes.
The system may include:
- Six-axis articulated robot.
- Automatic spray gun.
- Fluid pump.
- Color-change valves.
- Positioner or rotary table.
- Product-recognition sensors.
- Safety fencing and interlocks.
- Recipe management.
- Vision or scanning systems.
- Automatic cleaning equipment.
The robot can adjust:
- Spray angle.
- Gun distance.
- Movement direction.
- Path speed.
- Material flow.
- Trigger timing.
- Number of passes.
- Approach direction.
Robotic systems are designed to reach complex geometries and hard-to-access areas that are difficult for fixed-path machines. [standardbots]
High flexibility. Robots can handle different sizes, profiles, and surface geometries through programming.
Multi-axis access. The gun can approach edges, corners, curves, and recesses from different directions.
Better complex-surface coverage. A robot can follow three-dimensional workpiece geometry more effectively than a fixed linear path.
Product-mix capability. Recipes can be created for several product families.
Reduced mechanical changeover. New products may require programming rather than extensive machine rebuilding.
Future adaptability. Robotic systems can support product innovation and new designs.
Reduced direct exposure. Workers can remain outside the main spray zone when the cell is correctly enclosed and safeguarded.
Higher initial investment. A robotic cell may require the robot, controller, safety fencing, positioner, sensors, pumps, programming, installation, and commissioning.
More technical maintenance. Calibration, robot axes, cables, controllers, fluid systems, and safety devices require trained personnel.
Longer programming time. New products may require path development, collision checks, trial spraying, and quality validation.
More complicated troubleshooting. Problems may involve software, robot motion, sensors, fluid delivery, or communication systems.
Potential overinvestment. A robot may be unnecessary for a factory coating only flat panels in long, stable production runs.
Reciprocating sprayers work best when product dimensions remain within a defined range. Large variations may require mechanical adjustments or multiple spray stations.
Robotic systems can handle wider dimensional variation through programming and sensor-based part detection.
Reciprocating sprayers are effective for flat and regularly shaped products. Complex geometry may require manual touch-up.
Robotic systems excel at curved, recessed, irregular, and multi-angle surfaces.
Reciprocating sprayers offer strong repeatability within a defined product range. Frequent product changes may reduce efficiency.
Robotic systems can store multiple recipes and switch between product families more easily.
Reciprocating sprayers may leave thin areas on complex edges and recesses. Manual touch-up may be required.
Robotic systems can change spray angle and approach direction to improve coverage.
Reciprocating sprayers typically require adjustments to conveyor speed, gun height, spray width, recipe settings, fixture position, and number of active guns.
Robotic systems may require new spray paths, product coordinate systems, approach-angle adjustments, collision checks, part-recognition settings, trial spraying, and quality approval.
Manufacturers often say they need robots because they produce "many products." That statement should be divided into two separate questions:
If all products are flat and only their length or width changes, a reciprocating system may handle the range with recipes and adjustable settings.
If products include deep recesses, curved edges, profiles, and several surface angles, a robot may provide better coverage.
A factory with 30 flat-panel sizes may still be an excellent reciprocating-spray candidate. A factory with only three products may need a robot if those products have complex three-dimensional profiles.
This distinction helps prevent overinvestment.
Use the following steps before choosing a system:
1. Classify products as flat, profiled, recessed, curved, or irregular.
2. Record product dimensions, weight, material, and coating requirements.
3. Measure daily and annual production volume.
4. Document product-mix and changeover frequency.
5. Define film-thickness and appearance standards.
6. Identify the most difficult edges, profiles, and recesses.
7. Test representative workpieces with both technologies where practical.
8. Compare cycle time, coating consumption, touch-up, and rework.
9. Include programming, maintenance, installation, and training costs.
10. Define acceptance criteria before purchasing equipment.
Both technologies must be engineered for safe spray finishing.
OSHA identifies spray operations as presenting physical and health hazards. Applicable standards address:
- Mechanical ventilation.
- Flammable and combustible materials.
- Ignition sources.
- Electrical equipment.
- Booth construction.
- Exhaust systems.
- Fire protection.
- PPE.
- Lockout and maintenance procedures.
OSHA's ventilation standard requires spray rooms to be adequately ventilated to protect the operator's breathing zone.
Robotic cells also require safety fencing, interlocks, emergency stops, access controls, and safe programming procedures. Automation may reduce direct exposure, but it does not remove the need for training and compliant equipment.
Add these visual elements:
- Product-variation infographic: Compare flat, profiled, recessed, curved, and irregular products.
- Spray-path animation: Show linear reciprocating movement versus multi-axis robotic movement.
- Coverage diagram: Highlight areas a fixed spray path may miss.
- Touch-up comparison chart: Use real factory data for robotic and reciprocating finishing.
- Factory video: Demonstrate robot spraying of a curved furniture component.
Photorealistic industrial finishing factory, split-screen comparison of a reciprocating sprayer coating flat cabinet doors on a conveyor and a robotic spray system coating a complex carved wooden door with recessed details, visible spray guns, rotating fixture, drying tunnel, inspection station, clean modern machinery, realistic engineering details, professional B2B editorial style, no logos, no text.
Choose a reciprocating sprayer when your production line handles high volumes of flat or regularly shaped products with stable dimensions and repeatable coating recipes.
Choose a robotic spray system when your products are complex, curved, recessed, irregular, or frequently changing in size and geometry.
A reciprocator often provides the best value for standard cabinet doors, furniture panels, flooring, and flat wooden doors. A robot may provide better value for carved doors, curved furniture, profiled components, and mixed product families.
For mixed production, a hybrid system may be the strongest strategy:
- Reciprocators for flat panels.
- Robots for complex components.
- Manual stations for prototypes and touch-up.
- Shared drying, inspection, and handling systems.
The best choice is not the most advanced technology. It is the technology that matches your product geometry, production volume, quality requirements, workforce, and future expansion plans.
Contact GYDFinishing / GYD Machinery with your product drawings, dimensions, coatings, annual volume, product mix, and current quality challenges. GYD Machinery can help determine whether your factory needs a reciprocating sprayer, robotic spray system, hybrid solution, or complete turnkey coating line.
Usually, yes. A multi-axis robot can change spray angle, distance, and direction to handle different sizes, shapes, and geometries.
Yes, if the sizes fall within the machine's working range and the system includes adjustable recipes, fixtures, and conveyor settings.
A reciprocating sprayer is generally easier to maintain because it has simpler mechanical movement and less complex programming.
For simple flat products, a reciprocating sprayer may provide higher throughput. For complex products, a robot may reduce touch-up and rework, improving total finishing efficiency.
No. Material efficiency depends on path programming, gun settings, coating chemistry, surface geometry, and maintenance.
Carved doors, curved furniture, profiled cabinet doors, irregular architectural components, and parts with multiple surface angles are common candidates.
Yes. A hybrid system can use reciprocators for standard panels and robots for profiled or complex workpieces.
