Views: 269 Author: 广宇大 Publish Time: 2026-10-09 Origin: Site
Content Menu
● Understanding UV Curing Machine - Three Lamps Technology
>> What Is a UV Curing Machine - Three Lamps?
>> Core Components of UV Curing Machine - Three Lamps Systems
● Types of UV Curing Machine - Three Lamps Configurations
>> Sequential Triple-Lamp Configurations
>> Multi-Wavelength Triple-Lamp Configurations
>> Hybrid LED and Traditional Triple-Lamp Configurations
● UV Curing Machine - Three Lamps vs Single or Dual-Lamp: Comparative Analysis
>> Curing Speed and Production Throughput
>> Curing Uniformity and Quality
>> Energy Consumption and Operating Costs
● Leading UV Curing Machine - Three Lamps Manufacturers and Suppliers
>> SENLIAN and Qingdao INCRI Machinery (China)
>> Cefla Finishing and Uvitron (Italy and USA)
>> Dongguan Lan Dun and Shenzhen Mingshenggang (China)
● Key Selection Criteria for UV Curing Machine - Three Lamps Systems
>> Production Volume and Panel Geometry
>> Coating Type Compatibility and Curing Requirements
>> Panel Dimensions and Tolerance Requirements
● Maintenance and Operational Best Practices
>> Daily Cleaning and Inspection Procedures
>> Scheduled Component Replacement
>> Preventive Maintenance and Calibration
>> How much energy can be saved by using triple-lamp UV curing versus single-lamp systems?
>> Can triple-lamp UV curing machines handle both clear and heavily pigmented coatings?
>> What maintenance is required for triple-lamp UV curing machines?
>> How do you select the correct triple-lamp UV curing machine for specific applications?
Modern furniture, flooring, door, cabinet, and high-speed manufacturing demands flawless surface finishes, minimal energy consumption, and maximum production efficiency to remain competitive in global markets. A UV curing machine - three lamps has evolved from simple single-lamp or dual-lamp ultraviolet curing units into sophisticated triple-lamp systems that integrate precision UV exposure, independent lamp control, real-time intensity monitoring, and intelligent conveyor handling specifically engineered for flat wood panels, MDF, particleboard, plywood, melamine-faced boards, decorative laminates, glass, metal sheets, and composite panels. This comprehensive guide explores leading UV curing machine - three lamps technologies, system configurations, and selection criteria that transform curing operations from production bottlenecks into streamlined competitive advantages across furniture, flooring, automotive, architectural, consumer electronics, and industrial equipment manufacturing sectors.

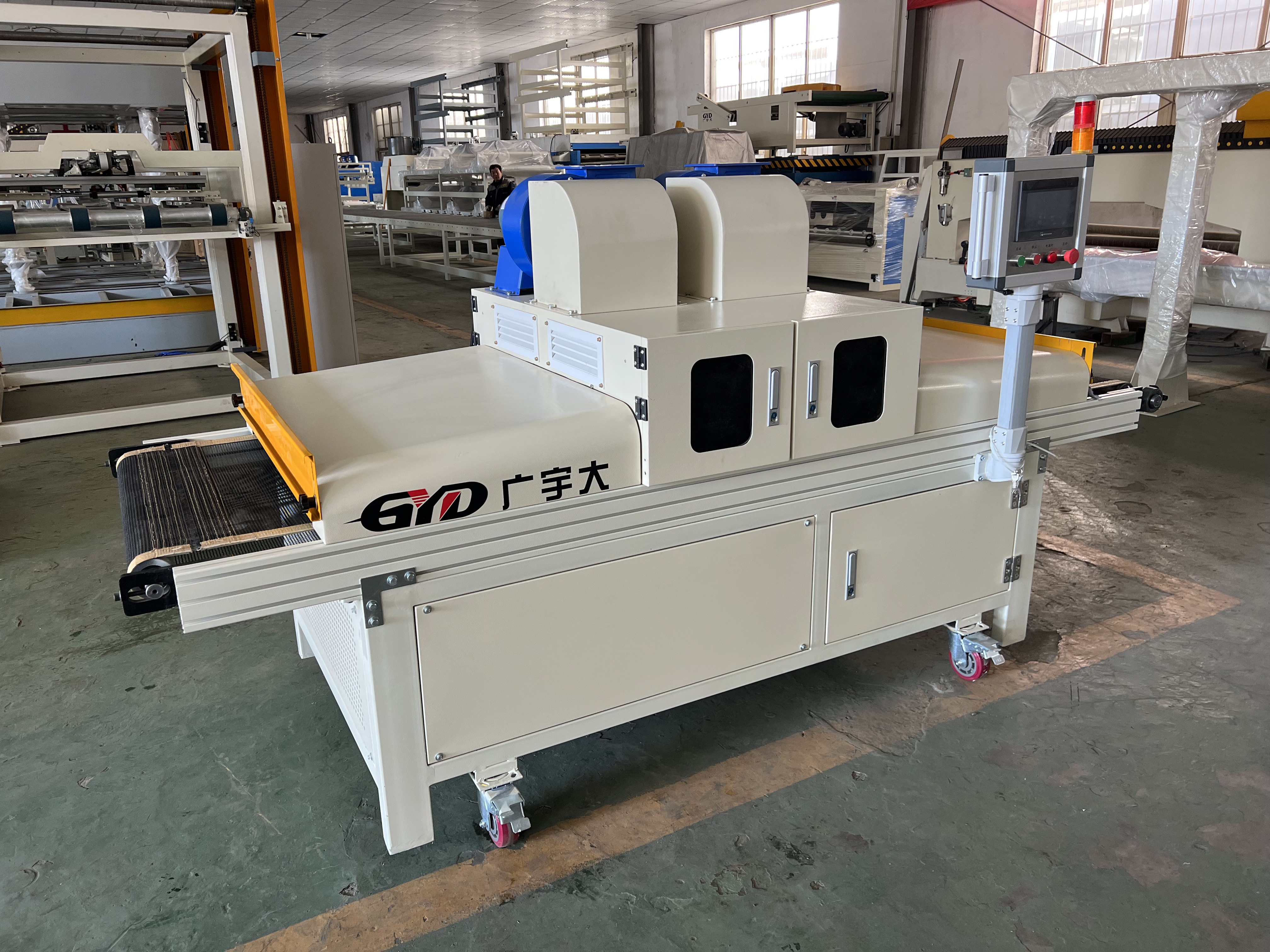

A UV curing machine - three lamps is a specialized finishing system widely adopted in industries such as furniture manufacturing, bamboo and wood crafts, flooring, wall panels, and footwear production that applies precise ultraviolet exposure through three independent lamp assemblies to rapidly cure UV-sensitive coatings, inks, adhesives, and decorative finishes onto flat panels with repeatable precision. Unlike single-lamp or dual-lamp configurations that may create uneven curing or require slower conveyor speeds, triple-lamp UV curing machines deliver enhanced UV coverage from multiple angles and exposure stages, ensuring superior coating hardness, durability, and complete cure even on complex surfaces, thick film builds, or challenging pigmented coatings.
These systems integrate three independent UV lamp assemblies, typically high-pressure mercury lamps, gallium-doped lamps, iron-doped lamps, or UV LED arrays, with precise parameter control that maintains optimal UV intensity ranging from 80 to 200 watts per centimeter depending on coating type and application requirements. Advanced UV curing machine - three lamps configurations feature programmable logic controllers, human-machine interfaces, servo-driven conveyor systems, independent lamp cooling channels, real-time UV intensity monitoring, and variable frequency drive controls that maintain optimal curing parameters throughout high-volume production cycles, enabling continuous flow manufacturing in modern smart factories with minimal operator oversight while achieving curing speeds far superior to single-lamp or dual-lamp systems.
Industrial UV curing machines with three lamps consist of several integrated subsystems working in concert to achieve reliable high-quality cures at production speeds optimized for diverse substrate geometries. The process starts with conveyor feeding systems that transport workpieces through UV exposure zones at controlled speeds ranging from 0 to 20 meters per minute depending on coating formulation, substrate thickness, and desired cure depth. Three independent UV lamp assemblies positioned sequentially or in specialized configurations deliver controlled UV exposure to substrate surfaces with uniform intensity and coverage across multiple exposure stages.
Each lamp assembly features independent power supplies, cooling systems, and intensity controls that enable operators to configure different lamp types or power settings for different coating layers or curing stages. For example, the first lamp might use a mercury lamp optimized for initial surface cure, the second lamp might use a gallium-doped lamp better suited for colored or pigmented coatings, and the third lamp might use an iron-doped lamp optimized for deep penetration and final cure. This flexibility enables manufacturers to cure complex multi-layer coating systems in a single pass without requiring separate curing stations.
Conveyor systems transport panels through all three UV exposure zones at controlled speeds, with photoelectric sensors detecting panel dimensions to trigger automatic lamp activation and intensity adjustment without manual intervention. Each light box is typically equipped with a 0.75 kilowatt cooling fan with an independent lamp cooling channel to maintain optimal lamp temperature and extend lamp life. The coordinated control among conveyor system, triple lamp assemblies, and precision monitoring components enables exceptionally uniform UV curing, high production efficiency, and significantly reduced energy consumption compared to single-lamp, dual-lamp, or thermal curing methods.
Sequential triple-lamp configurations represent the most widely deployed UV curing machine - three lamps arrangement for flat panel applications in furniture, flooring, door, cabinet, and architectural millwork manufacturing where high throughput and complete cure are paramount. These machines feature working widths from 600 to 1,300 millimeters with feeding speeds from 0 to 20 meters per minute, fully automating curing of UV coatings, primers, sealers, and decorative finishes with exceptional uniformity that effectively replaces inconsistent single-lamp or dual-lamp methods.
High precision sequential triple-lamp UV curing machines for primer and top coating feature working widths from 600 to 1,300 millimeters, working heights from 2 to 90 millimeters, minimum working lengths of 300 millimeters, and feeding speeds from 0 to 20 meters per minute for compact, high-precision, and versatile curing application on flat panels. These machines are designed for flawless UV curing with minimal energy waste and consistent cure quality across extended production runs.
Sequential triple-lamp UV curing machines cure UV coatings onto flat panels including MDF, plywood, particleboard, metal sheets, PVC, and calcium silicate boards. They are widely used in furniture, flooring, cabinet doors, and wall panel production where simplicity and cost-effectiveness are paramount for small to medium-volume operations. Common widths include 600 millimeters, 1,000 millimeters, and 1,300 millimeters for diverse production requirements. SENLIAN UV curing machines cure clear, colored, and dark UV coatings in 3 to 5 seconds with a three-lamp irradiation system configured around the coating response for high-volume furniture and panel production.
Multi-wavelength triple-lamp configurations represent advanced UV curing machine - three lamps arrangements for challenging coating applications where different wavelengths are required for optimal cure of different coating components. These machines feature three lamp assemblies with different spectral outputs, typically mercury, gallium-doped, and iron-doped lamps, each optimized for specific coating chemistries or curing stages.
Multi-wavelength triple-lamp UV curing machines achieve maximum processing widths of 600 to 1,300 millimeters, thickness ranges from 2 to 90 millimeters, and feeding speeds from 0 to 20 meters per minute for diverse curing requirements. These systems deliver consistent curing across complex coating formulations, excellent surface quality, and high production efficiency while reducing the need for multiple curing stations or rework due to incomplete cure.
Multi-wavelength triple-lamp UV curing machines serve furniture components, cabinet doors, architectural millwork, solid wood components, and decorative objects where complex coating formulations require multiple wavelengths for complete cure. Unlike single-wavelength systems that may create incomplete cure in certain coating layers, multi-wavelength triple-lamp configurations ensure uniform UV exposure across the full spectrum required by modern coating chemistries, creating uniform cure quality for every workpiece with stable lamp positioning that reduces defects and rework.
Hybrid LED and traditional triple-lamp configurations represent cutting-edge UV curing machine - three lamps technology that combines the instant-on advantages of UV LED arrays with the deep penetration capabilities of traditional mercury, gallium, or iron-doped lamps. These systems feature one or more LED lamp assemblies combined with traditional lamp assemblies, enabling manufacturers to leverage the benefits of both technologies in a single curing station.
Hybrid triple-lamp UV curing machines achieve coating cure in 3 to 5 seconds with three-lamp irradiation systems configured around the coating response, but hybrid systems offer similar performance with reduced energy consumption and extended lamp life. The LED lamp provides instant-on capability with no warm-up time, while the traditional lamps deliver broad-spectrum UV output that penetrates deeper into thick or pigmented coatings.
Hybrid triple-lamp UV curing machines serve furniture, flooring, architectural millwork, consumer electronics, and industrial equipment where energy efficiency, instant curing, and exceptional durability are critical. These systems achieve coating thickness from 6 to 25 grams per square meter with precise control, enabling manufacturers to optimize energy usage while maintaining exceptional cure quality across extended production runs with dramatically reduced energy consumption compared to traditional triple-mercury configurations.
UV curing machines with three lamps cure within 3 to 5 seconds when exposed to triple ultraviolet lamp arrays, dramatically faster than single-lamp systems that may require 5 to 10 seconds or more, or dual-lamp systems that may require 4 to 7 seconds for complete cure depending on coating thickness, lamp power, and conveyor speed. A typical triple-lamp UV process would entail application of the coating, followed by sequential or simultaneous exposure to three UV lamps that complete curing within seconds, enabling continuous flow production without incomplete cure or production bottlenecks that constrain throughput in single-lamp or dual-lamp operations.
In contrast, single-lamp or dual-lamp systems often require slower conveyor speeds or multiple passes to achieve equivalent cure, especially in thick builds or pigmented coatings where UV penetration is limited. For high-volume production and large-scale manufacturing, triple-lamp UV curing is usually more efficient and cost-effective compared to single-lamp or dual-lamp methods that constrain throughput and increase work-in-process inventory.
Triple-lamp UV curing is almost instantaneous, with photopolymerization rates that can be very fast, enabling near-instant cure and immediate processing and handling of finished product. This dramatically increases throughput compared to single-lamp or dual-lamp processes that require extended exposure times or multiple curing stations before parts can be handled or packaged. Automatic furniture coating lines achieve speeds of 12 to 20 meters per minute with only 3 to 5 workers needed for complete operation when equipped with triple-lamp UV curing systems.
UV curing machines with three lamps deliver highly uniform curing because UV exposure is evenly distributed by triple lamp assemblies with curing intensity tolerances far superior to single-lamp or dual-lamp methods. Triple-lamp curing provides highly uniform exposure because the UV material is pre-metered by precise lamp positioning, power settings, and conveyor speed control, with curing typically ranging from 3 to 5 seconds for films that are consistent across the entire panel.
The triple-lamp application process also creates a durable surface with excellent hardness that far exceeds single-lamp or dual-lamp curing quality on flat panels. In contrast, single-lamp or dual-lamp curing produces highly variable cure affected by lamp age, positioning, and power settings, suitable for thin builds but difficult to control for thick uniform films that require precise exposure control for optimal performance.
Triple-lamp curing delivers smooth, even cure with coating mechanically pressed into wood grain, eliminating incomplete cure, stickiness, and curing defects that plague single-lamp or dual-lamp methods. Single-lamp or dual-lamp curing can produce acceptable results for thin coatings, but is prone to incomplete cure, yellowing, and uneven hardness if not optimally controlled by skilled operators with extensive training and experience.
Standard triple-lamp coaters can apply precise cure without having a streaked appearance, while single-lamp or dual-lamp curing produces variable cure that requires skilled operators to achieve acceptable uniformity. The cure from triple-lamp machines rivals or exceeds single-lamp or dual-lamp quality but with faster, more controlled exposure that minimizes energy consumption while maximizing protection and aesthetic appeal. Flooring finished on triple-lamp UV curing machines exhibits smooth, uniform cure with consistent film hardness and no defects. Precision lamp control ensures uniform curing without variation or defects – quality far superior to single-lamp or dual-lamp operations.
UV curing machines with three lamps achieve energy utilization rate of over 96 percent with closed-loop control systems and minimal energy waste, while single-lamp or dual-lamp systems may require higher power settings or slower speeds to achieve equivalent cure. Excellent energy economy with over 96 percent of energy used effectively makes triple-lamp curing very cost-effective for expensive UV formulations that represent significant material and energy costs in high-volume production.
Triple-lamp UV curing machines waste almost no energy, need almost no warm-up time, and push UV exposure into wood grain so the cure actually lasts longer, while single-lamp or dual-lamp systems produce significant energy waste from incomplete cure or excessive exposure that creates heat buildup and substrate damage. The UV exposure is metered onto the substrate by precision setting of lamp power, conveyor speed, and lamp positioning, ensuring precise cure control without energy waste.
Triple-lamp systems are best suited for flat-panel production, nearing 100 percent energy efficiency with minimal waste and unused energy staying in the lamp for recirculation or cooling. Single-lamp or dual-lamp systems achieve only about 80 to 90 percent energy efficiency with 10 to 20 percent loss from incomplete cure, excessive exposure, or heat generation, making them less economical for high-volume flat panel production. To put this in perspective: a triple-lamp curing machine typically cures in 3 to 5 seconds, while single-lamp systems may require 5 to 10 seconds or multiple passes. This means the triple-lamp curing process reduces energy consumption by over 50 percent compared to single-lamp systems.
SENLIAN manufactures UV curing machines for flat-panel coating lines with three-lamp irradiation systems configured around the coating response. The company's systems cure clear, colored, and dark UV coatings in 3 to 5 seconds with independent lamp sections that irradiate the workpiece as it travels across the conveyor.
SENLIAN's UV curing machines feature working widths of 600, 1,000, and 1,300 millimeters, processing thickness from 2 to 90 millimeters, and feeding speeds from 0 to 20 meters per minute. The company's machines are built to order, exporting to more than 20 countries, serving plants where cure depth tolerance is tight and precise triple-lamp build is required.
Qingdao INCRI Machinery manufactures UV curing machines for wood furniture floor applications with model configurations featuring max drying widths of 600, 1,000, and 1,300 millimeters, working thickness from 2 to 90 millimeters, and feeding speeds from 0 to 20 meters per minute. The company's machines are built to order, exporting to more than 20 countries, serving plants where cure depth tolerance is tight and precise triple-lamp build is required.
Cefla Finishing manufactures UV-R LED curing machines available in versions with 1, 2, or 3 LED lamps, or in PLUS version which combines LED lamps and traditional UV lamps in a single solution. The company's systems serve furniture, flooring, door, cabinet, architectural panel, and decorative board applications where exceptional curing uniformity and energy efficiency are critical.
Uvitron manufactures UV Conveyor systems that can be configured with single, dual, or triple high intensity lamp heads, which can be removed and reconfigured as stand-mounted systems for increased versatility. The standard conveyor comes with multiple lamp heads, and can also be used with higher power LED systems, or with additional sidecure systems for applications requiring full UV coverage.
Dongguan Lan Dun mechanical and electrical equipment Technology manufactures UV curing systems for furniture industry with prices ranging from 15,000 to 30,000 dollars for standard configurations. The company's systems feature working widths of 600, 1,000, and 1,300 millimeters, feeding speeds from 0 to 20 meters per minute, and robust construction for high-volume flat panel production.
Shenzhen Mingshenggang Technology manufactures UV lamps, exposure lamps, infrared lamps, UV electronic power supplies, LED point light sources, transformers, ballasts, capacitors, triggers, lampshades, water-cooled lampshades, quartz plates, water jackets, and various special lamps. The company's UV lamp systems serve printing machines, woodworking, and furniture applications with prices ranging from 30 to 60 dollars per piece for replacement lamps.
Matching UV curing machine - three lamps capacity to actual production volumes and panel complexity prevents both underutilization of capital equipment and production bottlenecks that delay order fulfillment. Low to medium volume operations processing under 500 panels daily benefit from compact triple-lamp configurations with manual loading and unloading stations positioned at ergonomic heights.
High-volume manufacturers handling thousands of panels daily require integrated production lines with automated material handling, quick-change lamp assemblies, and integrated cooling zones that minimize changeover downtime between product styles. Evaluate cycle times including loading, UV exposure, cooling, and unloading phases to calculate realistic daily throughput under actual operating conditions rather than theoretical maximums.
Different coating chemistries demand specific lamp types, power settings, and exposure times to achieve optimal results without incomplete cure, adhesion failures, or finish defects. UV-curable coatings require UV lamp arrays positioned immediately after coating zones for instant polymerization that enables immediate handling and packaging, while water-based coatings require extended flash-off and drying zones before UV exposure.
Verify that candidate UV curing machines with three lamps accommodate your specific coating portfolio including primers, sealers, topcoats, putty, UV coatings, water-based paints, and solvent-based lacquers without requiring extensive reconfiguration when switching materials between production runs. Furniture and cabinet applications typically require curing depth from 6 to 25 grams per square meter for thin films, while flooring and architectural panels may require precise exposure control for enhanced durability and wear resistance.
Wood panels, MDF boards, and decorative laminates vary dramatically in dimensions from small furniture parts measuring 300 millimeters minimum length to substantial architectural panels exceeding 2,440 millimeters in length with varying thickness from 2 to 90 millimeters. Ensure that candidate UV curing machines with three lamps accommodate maximum panel dimensions with adequate clearance for lamp exposure, conveyor tracking, and cooling zones without edge contact that damages finishes or creates safety hazards.
For thin panels under 10 millimeters thickness, prioritize UV curing machines with three lamps with precision panel support systems that prevent panel deflection and ensure consistent UV exposure across full panel surfaces. Standard UV curing machines may achieve superior results on robust architectural panels but require careful support for thin panels, potentially requiring specialized configurations for delicate decorative laminates and veneered panels.
Consistent daily cleaning prevents coating buildup in lamp assemblies, cooling systems, conveyor systems, and control panels that degrades cure quality and increases unplanned downtime. Flush cooling systems with appropriate fluids at shift end, removing lamp assemblies for thorough cleaning to prevent clogging from dried coating residue that alters exposure patterns and creates streaks or incomplete cure on finished panels.
Inspect conveyor chains, drive motors, photoelectric sensors, lamp bearings, and cooling systems for wear, contamination, or misalignment that could affect positioning accuracy and curing uniformity across panel surfaces. Visual inspection should identify buildup or debris that, if unclean, may hinder even exposure, with soft lint-free cloths used to wipe components to ensure no scratches or damage occurs during cleaning.
Premium UV curing machine - three lamps producers track component replacement in operating hours and square meters cured rather than calendar time because coating type, panel, and line speed determine wear rate. Lamp assemblies, cooling fans, seals, and control systems have defined service life based on operating hours and material compatibility, with replacement scheduled during planned downtime.
Document all component replacements and maintenance activities in computerized maintenance management systems linked to production records for traceability and warranty compliance. Preventive replacement scheduled before defects impact production avoids unplanned stoppages that delay customer orders and disrupt production schedules in high-volume furniture, flooring, and architectural panel manufacturing environments.
Preventive maintenance programs implement scheduled inspections based on equipment manuals and operational hours to avoid unexpected downtime. Weekly maintenance includes checking motor load, lubricating bearings, and inspecting lamp assembly alignment to ensure proper exposure and curing depth control.
Monthly maintenance involves calibrating lamp power settings against curing depth targets, verifying conveyor speed calibration, checking lamp intensity, and documenting all readings. Annual maintenance overhauls all mechanical systems, updates software, replaces worn components including seals and lamp assemblies, and performs comprehensive system validation before resuming production.
Sequential triple-lamp UV curing machines use three lamp assemblies positioned one after another suitable for flat panels with highest material efficiency and lowest waste. Multi-wavelength triple-lamp UV curing machines use three lamp assemblies with different spectral outputs suitable for complex coating formulations requiring multiple wavelengths for complete cure. Hybrid triple-lamp UV curing machines combine LED and traditional lamp assemblies to leverage instant-on capability with deep penetration for demanding applications.
Triple-lamp UV curing machines typically reduce energy consumption by over 50 percent compared to single-lamp systems through precise metering, consistent exposure patterns, and minimal energy waste. Triple-lamp UV curing machines achieve energy utilization rate of over 96 percent with closed-loop control systems and minimal energy waste, while single-lamp systems achieve only approximately 80 to 90 percent energy efficiency with 10 to 20 percent loss from incomplete cure, excessive exposure, or heat generation.
Yes, most modern triple-lamp UV curing machines accommodate multiple coating types including clear, colored, and dark UV coatings with appropriate lamp types and parameter settings. Clear coatings require standard mercury lamps, while pigmented coatings may benefit from gallium-doped or iron-doped lamps that deliver specific wavelengths optimized for colored formulations.
Daily maintenance includes flushing cooling systems, cleaning lamp assemblies and cooling fans, wiping down conveyor systems, and checking lamp intensity. Weekly tasks involve lubricating linear guides, verifying lamp assembly alignment, checking power settings, and inspecting cooling filters. Monthly maintenance calibrates lamp power settings against curing depth targets and verifies conveyor speed calibration.
Triple-lamp UV curing machine selection balances production volume, panel dimensions, coating requirements, and budget constraints. Sequential machines suit flat panels with highest material efficiency, multi-wavelength machines serve complex coating formulations with multiple wavelength requirements, hybrid machines deliver instant-on capability with deep penetration for demanding applications, and integrated production lines combine coating, curing, and handling for maximum efficiency.
