Modern furniture and architectural panel manufacturing demands uniform coating thickness, minimal material waste, and maximum production efficiency to remain competitive in global markets. A double roller coating machine has evolved from simple dual-pass roller applicators into sophisticated automated systems that integrate precision coating application, wet-on-wet multi-layer processing, and instant ultraviolet curing. This comprehensive guide explores leading double roller coating machine technologies, system configurations, and selection criteria that transform coating operations from labor-intensive bottlenecks into streamlined competitive advantages across furniture, flooring, door, cabinet, and architectural panel manufacturing sectors.

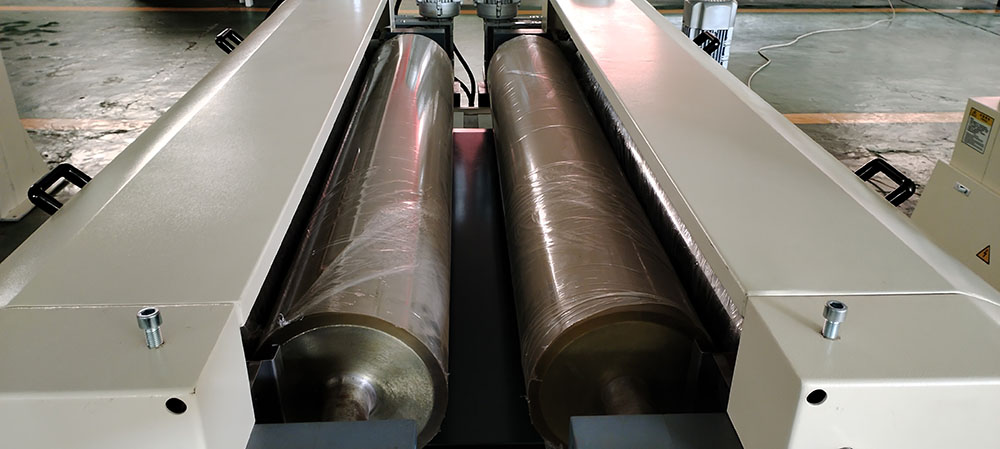

A double roller coating machine is an industrial coating application system specifically engineered to apply uniform coatings onto flat material surfaces using two sets of coating heads that complete the coating process in single pass-through operations. Unlike single roller coaters that require multiple passes or intermediate handling for multi-layer finishes, double roller coating machines use two sets of coating heads to ensure consistent coating thickness and eliminate uneven application, thereby improving product quality while dramatically increasing throughput compared to single-pass configurations.
These systems integrate precision applicator rollers, dosing rollers, and doctor blades that meter exact coating quantities onto workpiece surfaces, creating uniform films ranging from 5 to 150 microns depending on application requirements and substrate characteristics. Advanced double roller coating machine configurations feature independent reflux oil tanks for each roller set, eliminating the need for cleaning between color changes and enabling rapid product transitions in high-mix production environments where door styles, panel sizes, and coating requirements change frequently throughout shifts.
Industrial double roller coating machines consist of several integrated subsystems working in concert to achieve reliable high-quality finishes at production speeds optimized for flat panels and strip materials. Application modules employ two sets of coating heads, each with applicator rollers, dosing rollers, and doctor blades that deposit controlled coating volumes onto flat panels, doors, flooring, and architectural components. The first set applies a generous amount of product, while the second set rotates in opposite direction to remove excess oil or varnish, ensuring the product is well-absorbed into the wood and delivering a clean, even finish on textured substrates.
Conveyor systems transport workpieces through application and curing zones at controlled speeds ranging from 0 to 20 meters per minute depending on coating formulation, substrate type, and desired film thickness. Working widths from 600 to 1,320 millimeters with working heights from 2 to 80 millimeters accommodate diverse panel geometries from thin decorative laminates to substantial solid wood doors and architectural panels. Total power ratings from 12 to 15 kilowatts drive precision servo motors that maintain synchronous speeds between transport and application rollers, guaranteeing streak-free finishes across extended production runs.
Standard double roller coaters represent entry-level configurations suitable for low to medium volume operations where capital investment must be minimized while still achieving dramatic improvements over single-pass methods. These machines feature working widths from 600 to 1,300 millimeters with feeding speeds from 0 to 20 meters per minute, fully automating application of UV primers, topcoats, and fillers with exceptional uniformity that effectively replaces inconsistent manual methods or single-roller systems that require intermediate handling between coats.
A typical standard double roller coater applies primer at 10 to 20 grams per square meter using the first roller set, then applies topcoat at 10 to 20 grams per square meter using the second roller set in single pass-through operation. Each roller group features separate reflux oil tanks that do not need cleaning when changing paint colors, enabling rapid product transitions without downtime for solvent flushing and system purging that slows conventional coating lines during changeover between customer orders with different color requirements.
Wet-wet double roller coaters represent advanced configurations where both roller sets rotate in the same direction and the second roller is also filled with product such as oil or varnish, resulting in high grammage ideal for heavy, durable finishes on textured wood or special effects like ceruse finishes on parquet and furniture panels. This method uses two sets of rollers, each with an application roller and a dosing roller, arranged in mirror-image configuration that enables simultaneous application of two coating layers without intermediate curing or drying.
The wet-wet technique applies coating at 20 to 40 grams per square meter total film thickness depending on desired finish quality and substrate porosity, with both roller sets contributing to final film build rather than the second set removing excess from the first application. This configuration is highly effective for heavily textured wood such as oak with deep grain, where single roller coating would leave insufficient product in grain valleys or create uneven appearance across panel surfaces that compromises perceived quality in premium furniture and architectural applications.
Reverse roller double coaters enhance double roller coating machine capabilities by employing the second roller set as a reverse roller that rotates opposite to workpiece travel direction, further increasing precision and enabling additional finishing effects beyond standard double roller configurations. The Trivec Premium Double Roller Coater exemplifies this technology with two sets of dosing and application rollers where application can be made precisely by changing pressure between application and dosing rollers, speed of rollers, and rotational direction of dosing rollers.
Optional features include feeding pumps, level sensors, rail systems, single reverse function, wet-wet configuration, oscillating scraper knives, and chiller or heater units for regulating viscosity to maintain optimal coating application parameters across extended production runs. Working widths from 600 to 1,300 millimeters with thickness capacities from 3 to 80 millimeters and feeding speeds from 0 to 20 meters per minute suit diverse production volumes, while flexible configurations enable manufacturers to switch between standard double roller, reverse roller, or wet-wet modes depending on product requirements without extensive reconfiguration or downtime.
Fully integrated double roller coating production lines combine surface preparation, multi-stage coating application, UV curing, intermediate sanding, and final finishing in one continuous flow that transforms raw substrates into finished, ready-to-assemble components with minimal manual handling. These complete installations suit mass production environments where parts move automatically from dust removal through double roller coating application, UV curing, sanding, and final topcoat application without intermediate storage or re-fixturing that introduces contamination risks and delays order fulfillment.
A typical integrated double roller coating production line for furniture panels follows process sequence including dust removal and surface cleaning, double roller primer application at 10 to 20 grams per square meter, UV curing with lamp power 10 to 15 kilowatts adjusted to ensure complete polymerization, intermediate sanding with wide-belt sanders to level primer surface, double roller topcoat application at 10 to 20 grams per square meter, final UV curing with lamp power 15 to 20 kilowatts to ensure complete cure, then cooling and inspection before packaging and shipment. The double roller design processes panels twice as fast as a single-pass machine for complex finishes, reducing the number of required coating stages and handling steps while significantly boosting overall line output.
ZZCHRYSO manufactures automatic double roller coating machines with working widths from 0 to 1,320 millimeters, working heights from 2 to 80 millimeters, minimum working lengths of 300 millimeters, operation heights of 900 millimeters, and total power ratings of 12.75 kilowatts. Their double roller coaters are coating equipment designed for applying uniform coatings onto flat material surfaces using two sets of coating heads to complete the coating process, ensuring consistent coating thickness and eliminating uneven application.
The company's equipment is especially suitable for large-area panels and strip materials such as flooring, cabinet boards, and furniture boards, offering higher efficiency than single-roller coaters and compatibility with materials including wood, glass, metal sheets, plastic films, melamine boards, and plywood. The double roller coater enables continuous coating at relatively high speeds with material conveying speeds generally ranging from several meters to tens of meters per minute, satisfying large-scale industrial production needs while integrating with drying equipment, cutting machines, and other devices to form automated coating production lines.
LJ Machinery produces double roller coaters that apply thin, uniform layers of coating to flat substrates including wood stain, waterborne coating, UV curable coating or lacquer, and color paints to achieve specific finishes or functions. Technical data includes working widths of 600 and 1,300 millimeters with thickness of steel structure at 16 millimeters, conveyor belt dimensions of 3,315 by 620 millimeters or 3,315 by 1,320 millimeters, and roll dimensions including doctor rolls of 164 by 750 millimeters or 164 by 1,450 millimeters with two pieces per set.
Kefu VCOATING operates as one of the most professional roller coater manufacturers in China, specialized in providing high quality customized service including UV double roller coaters for wood furniture designed for surface paint filling of boards with coarse fibers. Their double roller coater machines are multi-purpose equipment where double roller can be used as two single rollers, each group with separate reflux oil tank that does not need cleaning when changing paint colors, enabling rapid product transitions in high-mix production environments.
Trivec manufactures the Premium Double Roller Coater equipped with two sets of dosing and application rollers where workpieces are fed into the system by use of an integrated conveyor belt. The application can be made precisely by changing the pressure between application and dosing rollers, the speed of rollers, and the rotational direction of dosing rollers, with the second set used as a reverse roller that further increases precision and enables additional finishing effects.
The company's double roller coating technology is highly effective for heavily textured wood such as oak with deep grain, where the first set applies a generous amount of product while the second set rotates in opposite direction to remove excess oil or varnish, ensuring the product is well-absorbed into the wood and delivering a clean, even finish. Optional features include feeding pumps, level sensors, rail systems, single reverse function, wet-wet configuration, oscillating scraper knives, and chiller or heater units for regulating viscosity to maintain optimal coating application parameters.
Barberan produces roller coaters of BR series for application of transparent or pigmented base and topcoat lacquers, primers, oils, and stains on flat surfaces with single or double-sided configurations that vary in accordance with transport conveyor type, roller types, width, and additional options like lacquer temperature control. Lacquering machines can be adapted to customer requirements with working widths from 630 to 2,550 millimeters, thickness capacities from 3 to 80 millimeters, and feeding speeds from 0 to 20 meters per minute for diverse production volumes.
Universal Urethane manufactures precision-engineered coater rolls for coil coating systems designed to apply primers, topcoats, and chemical treatments evenly and reliably across metal coil, plastic film, and composite panel substrates. Their polyurethane coater rolls serve double roller coating machines and integrated production lines where consistent coating application and minimal maintenance downtime are critical for competitiveness in demanding domestic and export markets.
Matching double roller coating machine capacity to actual production volumes and panel complexity prevents both underutilization of capital equipment and production bottlenecks that delay order fulfillment and frustrate customers. Low to medium volume operations processing under 500 panels daily benefit from standard double roller coaters or compact UV spray systems with manual loading and unloading stations positioned at ergonomic heights to reduce worker fatigue during extended shifts.
High-volume manufacturers handling thousands of components daily require wet-wet configurations or integrated production lines with automated material handling, quick-change roller assemblies, and integrated UV curing zones that minimize changeover downtime between product styles. Evaluate cycle times including loading, coating application, UV curing, cooling, and unloading phases to calculate realistic daily throughput under actual operating conditions rather than theoretical maximums that ignore real-world constraints such as material handling delays and quality inspection requirements.
Different coating chemistries demand specific roller materials, fluid delivery systems, and UV lamp wavelengths to achieve optimal results without incomplete cure, adhesion failures, or finish defects that compromise durability and appearance. UV coatings, water-based paints, solvent-borne finishes, oils, stains, and fillers require compatible roller materials and curing parameters to ensure optimal adhesion and finish quality on diverse substrates including wood, glass, metal sheets, plastic films, melamine boards, and plywood.
UV gelation processes apply intermediate cure levels between coating layers to ensure optimal intercoat adhesion for subsequent layers without fully curing primer or basecoat that would prevent chemical bonding with topcoat layers. Verify that candidate double roller coating machines accommodate your specific coating portfolio including primers, fillers, sealers, and topcoats without requiring extensive reconfiguration or component replacement when switching materials between production runs.
Furniture components, architectural panels, and flooring products vary dramatically in dimensions and complexity, from small drawer fronts to large wardrobe panels exceeding 1,320 millimeters in width with raised profiles and moulded edges. Ensure that candidate double roller coating machines accommodate maximum panel dimensions with adequate clearance for applicator roller contact, UV lamp positioning, and conveyor tracking without edge contact that damages finishes or creates safety hazards for operators loading and unloading panels.
For shaped components such as raised panel doors, shaker styles with deep grooves, or textured flooring surfaces, prioritize double roller coating machines with programmable applicator roller positioning that adjusts pressure, standoff distance, and coating volume dynamically across varying surface contours. Standard flat panel coating machines may achieve superior results on simple slab doors but struggle with profiled surfaces, potentially requiring manual touch-up that negates automation benefits and increases labor costs per finished unit.
Consistent daily cleaning prevents coating buildup in applicator rollers, dosing rollers, doctor blades, and UV lamp housings that degrades finish quality and increases unplanned downtime that disrupts production schedules. Wipe down rollers with appropriate solvents at shift end, removing doctor blades for thorough cleaning to prevent clogging from dried coating residue that alters application patterns and creates streaks or dry spots on finished panels.
Inspect conveyor chains, drive motors, photoelectric sensors, roller bearings, and UV lamp housings for wear, contamination, or misalignment that could affect positioning accuracy and coating uniformity across panel surfaces. Weekly preventive maintenance should include lubrication of linear guides with manufacturer-specified greases, verification of applicator roller alignment, calibration of gap settings against certified gauges, and inspection of UV lamp output to ensure adequate curing energy that prevents incomplete polymerization and finish defects.
Achieving optimal coating quality while minimizing material consumption requires careful balancing of applicator roller pressure, dosing roller speed, conveyor velocity, and UV lamp intensity to match coating viscosity, substrate porosity, and desired film thickness. Start with manufacturer-recommended baseline settings for your specific coating type and substrate, then conduct systematic test applications on sample panels to evaluate coverage uniformity, orange peel severity, and film thickness consistency across faces, edges, and profiles.
Use wet film thickness gauges during setup to verify that applied coating volumes meet specification requirements before entering UV curing stages, preventing costly rework from under or over-application that wastes material and delays order shipments. Document successful parameter combinations for each coating type and substrate, creating standardized setup sheets that reduce changeover times and ensure consistent results across shifts, operators, and production facilities that maintain brand quality standards regardless of where products are manufactured.
Single roller coating machines apply coating using one set of applicator and dosing rollers, suitable for general primer and topcoat application on flat surfaces with simple finishing requirements. Double roller coating machines employ two sets of coating heads that complete the coating process in single pass-through operations, ensuring consistent coating thickness and eliminating uneven application while dramatically increasing throughput compared to single-pass configurations that require intermediate handling between coats.
Double roller coating machines typically reduce coating consumption by 20 to 40 percent compared to spray application through precise metering, consistent application patterns, and minimal overspray that eliminates waste. Integrated coating recovery systems with separate reflux oil tanks for each roller set further reduce waste by capturing and recycling excess material for reuse, dramatically reducing material costs and environmental impact compared to spray methods where overspray losses are unavoidable.
Yes, most modern double roller coating machines accommodate multiple coating types including UV, water-based, solvent-borne, oil, stain, and filler formulations with appropriate roller materials and curing parameters. UV coatings require UV lamp curing systems emitting at specific wavelengths for photopolymerization, while water-based coatings require IR drying tunnels or forced-air convection ovens that evaporate water carriers at controlled temperatures without premature skinning or finish defects.
Daily maintenance includes wiping down applicator rollers, dosing rollers, and doctor blades, cleaning UV lamp housings, and checking conveyor tracking. Weekly tasks involve lubricating linear guides, verifying roller alignment, checking gap settings, and inspecting UV lamp output to ensure adequate curing energy. Monthly inspections should cover electrical connections, safety interlocks, conveyor drive components, and UV lamp service life to identify wear before failure causes production stoppages that delay customer orders.
Installation and commissioning timelines vary by system complexity and site preparation, typically ranging from two to eight weeks depending on foundation requirements, utility connections, and integration with existing material handling systems. Simple standard double roller coaters may be operational within weeks after delivery if utilities and floor space are ready, while complete turnkey double roller coating production lines with conveyor integration, multi-stage application, UV curing systems, and automated material handling require extended commissioning periods including operator training and production trials.
