Modern architectural glass manufacturing demands flawless surface finishes, precise edge treatment, and maximum production efficiency to remain competitive in global building materials markets. A Glass roller coating machine has evolved from simple manual edge painting stations into sophisticated automated systems that integrate precision UV-curable coating application, perimeter frame coating, and instant ultraviolet curing specifically engineered for float glass sheets, spandrel panels, mirror substrates, and decorative glass components. This comprehensive guide explores leading Glass roller coating machine technologies, system configurations, and selection criteria that transform glass coating operations from labor-intensive bottlenecks into streamlined competitive advantages across architectural glazing, curtain wall, interior design, and decorative glass manufacturing sectors.
A Glass roller coating machine is an industrial coating application system specifically engineered to apply UV-curable paints, primers, adhesives, protective finishes, and decorative coatings onto flat glass panels with repeatable precision using roller-based application technology. Unlike conventional spray systems designed for varied workpieces, Glass roller coating machines incorporate specialized conveying mechanisms, precision roller assemblies, and optimized coating chamber geometries that deliver uniform coverage on glass surfaces where traditional methods struggle with uneven coverage, high material waste, and significant labor costs.
These systems integrate single-head roller coaters, double-head configurations, or frame-specific coating units that apply coating films ranging from nanometer-thin surface treatments to thick decorative layers with controlled thickness and uniform appearance. Advanced Glass roller coating machine configurations feature automatic thickness control, frequency-controlled drives, liquid paint recycling systems, and integrated UV curing tunnels that maintain optimal application parameters throughout high-volume production cycles, enabling consistent finish quality across extended production runs for architectural spandrel glass, mirror backing, decorative panels, and perimeter frame applications.
Industrial Glass roller coating machines consist of several integrated subsystems working in concert to achieve reliable high-quality finishes at production speeds optimized for glass substrates. Application modules employ precision roller coaters with EPDM rubber rollers and steel rollers that recycle coating liquid onto flat glass surfaces fast and evenly, suitable for wood panel, MDF, glass, metal, and fiber cement board substrates. Working widths range from 600 to 3,300 millimeters depending on configuration, with working thickness capacities from 2 to 100 millimeters accommodating diverse glass panel geometries from thin decorative panels to substantial architectural glazing units.
Conveyor systems transport glass panels through application and curing zones at controlled speeds ranging from 0 to 60 meters per minute depending on coating formulation, substrate type, and desired film thickness. Recommended working speeds of 8 to 12 meters per minute suit standard UV, PU, PE, NC, AC, and water-based paint applications, while customized high-speed configurations reach 60 meters per minute for mirror production lines and high-volume decorative glass manufacturing where thousands of square meters flow through finishing lines daily.

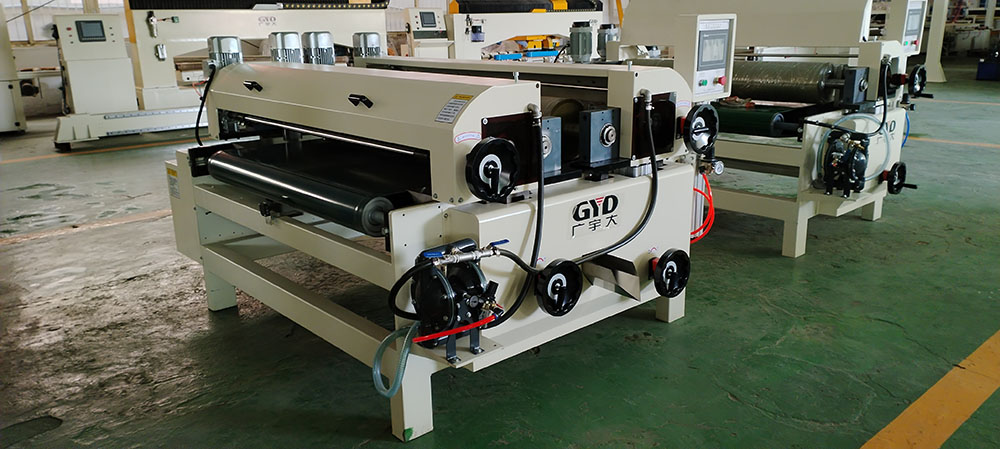

Single-head roller coaters represent entry-level Glass roller coating machine configurations suitable for low to medium volume operations where capital investment must be minimized while still achieving dramatic improvements over manual methods. These compact machines allow application of a uniform, even layer of paint with working widths of 1,300 and 1,800 millimeters, enabling manufacturers to apply high-quality paints for spandrel effect, granting absence of paint on glass sheet edges, or achieving semi-transparent effects such as etched or sandblasted appearance.
The single-head roller coater machine features EPDM and steel rollers with liquid paint recycling, adjustable scraping, and frequency-controlled drives that maintain consistent coating application across extended production runs. Roller materials can be selected for different substrates and paints, while conveying arrangements and rotation direction can be configured according to the intended coating process, enabling manufacturers to process varied product portfolios without extensive reconfiguration or component replacement when switching materials between production runs.
Double-head roller coaters enhance Glass roller coating machine capabilities by enabling application of coatings having different chemical characteristics in sequential passes or simultaneous top and bottom surface coating. Working widths of 1,800, 2,300, 2,600, and 3,300 millimeters accommodate large architectural glass panels and curtain wall units where uniform coating quality across expansive surfaces is critical for aesthetic consistency and customer satisfaction in premium building projects.
The double-head configuration allows manufacturers to apply primer and topcoat in single pass-through operations, dramatically reducing cycle times and floor space requirements compared to single-pass systems requiring intermediate handling and re-fixturing. This technology is ideal for mirror production lines as well as application of organic coatings where enhanced production due to coating speed over 60 meters per minute justifies capital investment through dramatic labor savings and material efficiency improvements.
Framecoater systems represent specialized Glass roller coating machine technology designed for precision single-head roller coating of float glass sheet frames that allows ready handling of even large sheets. This special roller application system is ideal for painting frame areas of glass panels where perimeter bands must be applied with precise width control while maintaining perfectly clean post-treatment edges free from coating contamination.
Working parameters and the thickness and width of the frame for painting are controlled automatically as required, with panels loaded and unloaded by hand by the operator or integrated into automated handling systems for high-volume production. The special roller application system allows coating of float glass sheets like a frame, while the special conveying bench grants precision and makes easier the handling even when working on big dimension glass sheets, ensuring consistent edge treatment quality across extended production runs.
Curtain coaters represent the highest throughput Glass roller coating machine configuration, allowing application of big layers of paint at high speed ideal for mirror production lines and high-volume decorative glass manufacturing. This type of machine allows enhanced production due to coating speed over 60 meters per minute, dramatically reducing cycle times and floor space requirements compared to roller coating methods where application rates are limited by roller contact mechanics and coating viscosity constraints.
The best solution for high production lines, curtain coaters apply coating as a continuous waterfall-like film that flows onto glass surfaces, creating seamless, mirror-finish coatings without roller marks or texture variations that compromise appearance in premium architectural and decorative applications. Ideal for mirror backing, decorative panels, and high-gloss architectural glass where flawless surface appearance is critical for brand reputation and customer satisfaction in demanding domestic and export markets.
Cefla Finishing operates as a leading manufacturer of integrated lines and customized solutions ranging from coating equipment, wrapping machines, and glass processing machinery that boost quality, durability, and versatility across architectural glass, furniture, and flooring manufacturing sectors. Their single-head roller coater machine allows application of uniform, even paint layers with working widths of 1,300 and 1,800 millimeters, enabling high-quality spandrel effect paints with absence of paint on glass sheet edges or semi-transparent effects such as etched or sandblasted appearance.
The company's double-head roller coater allows application of coatings having different chemical characteristics with working widths of 1,800, 2,300, 2,600, and 3,300 millimeters for large architectural glass panels and curtain wall units. Framecoater systems represent precision single-head roller coaters for float glass sheet frames that allow ready handling of even large sheets, while curtain coaters enable coating speeds over 60 meters per minute for mirror production lines and high-volume decorative glass manufacturing where throughput is critical for competitiveness.
SENLIAN manufactures roller coating machines for flat-panel finishing with EPDM and steel rollers, liquid paint recycling, adjustable scraping, and frequency-controlled drives suitable for wood panel, MDF, glass, metal, and fiber cement board substrates. Their TRD series includes TRD600, TRD800, and TRD1300 models with max coating widths from 600 to 1,300 millimeters, working thickness from 2 to 80 millimeters, and recommended working speeds of 8 to 12 meters per minute for standard UV, PU, PE, NC, AC, and water-based paint applications.
The roller coating machine uses rubber rollers with steel rollers to recycle coating liquid onto flat board surfaces fast and evenly, with customized configurations reaching production speeds up to 60 meters per minute for high-volume applications. Working width, working thickness, and feeding direction can be adjusted around production layout, while roller materials can be selected for different substrates and paints, enabling manufacturers to process varied product portfolios without extensive reconfiguration.
Taisan Machinery manufactures roller coating machines for wood, MDF, plywood, glass, plastic, and cement sheet surface coating production lines with working widths of 650, 1,000, and 1,320 millimeters, working heights from 2 to 80 millimeters, and feeding speeds from 0 to 20 meters per minute. Paint types include UV, PU, NC, and PE formulations suitable for diverse glass coating applications from decorative panels to architectural spandrel glass where uniform finish quality is critical.
Qingdao Incri Machinery operates as a woodworking machinery supplier offering UV roller coating lines with capacity of 5,000 square meters per day, including UV paint woodworking machines and roller coating machines for glass, PVC, wood, and MDF substrates. Their equipment serves furniture, door, cabinet, flooring, and architectural panel manufacturers with technology that delivers consistent finish quality at production speeds that justify capital investment over manual or semi-automated methods.
Yutian Xindecheng Printing Machinery manufactures UV lacquer coating machines that apply UV lacquer onto material surfaces including glass, metal, wood, acrylic, leather, plastic sheet, and paper with robust, reliable, and durable construction. Material widths of 800 millimeters with thickness up to 10 millimeters and lacquering speeds of 35 meters per minute suit diverse glass coating applications from decorative panels to architectural spandrel glass where uniform finish quality is critical.
The company provides full solutions of flat UV coating machines, from very small size to large format, from sheet to web, from mercury UV to LED UV, and from flood UV coating to inkjet spot UV coating. Technical support encompasses coating formulation selection, process optimization, and troubleshooting services ensuring customers achieve target quality and throughput levels across extended equipment service life in competitive glass processing markets.
Matching Glass roller coating machine capacity to actual production volumes and panel complexity prevents both underutilization of capital equipment and production bottlenecks that delay order fulfillment and frustrate customers. Low to medium volume operations processing under 500 square meters daily benefit from single-head roller coaters or compact UV spray systems with manual loading and unloading stations positioned at ergonomic heights to reduce worker fatigue during extended shifts.
High-volume manufacturers handling thousands of square meters daily require double-head configurations or curtain coaters with automated material handling, quick-change roller assemblies, and integrated UV curing zones that minimize changeover downtime between product styles. Evaluate cycle times including loading, coating application, UV curing, cooling, and unloading phases to calculate realistic daily throughput under actual operating conditions rather than theoretical maximums that ignore real-world constraints such as material handling delays and quality inspection requirements.
Different coating chemistries demand specific roller materials, fluid delivery systems, and UV lamp wavelengths to achieve optimal results without incomplete cure, adhesion failures, or finish defects that compromise durability and appearance on glass substrates. UV coatings, water-based paints, solvent-based finishes, fluorocarbon paints, glues, and special paints require compatible roller materials and curing parameters to ensure optimal adhesion and finish quality on non-porous glass surfaces where mechanical bonding is limited.
UV gelation processes apply intermediate cure levels between coating layers to ensure optimal intercoat adhesion for subsequent layers without fully curing primer or basecoat that would prevent chemical bonding with topcoat layers. Verify that candidate Glass roller coating machines accommodate your specific coating portfolio including primers, decorative paints, protective coatings, and adhesives without requiring extensive reconfiguration or component replacement when switching materials between production runs.
Architectural glass panels, decorative glass components, and mirror substrates vary dramatically in dimensions and complexity, from small decorative panels measuring 300 millimeters minimum length to large curtain wall units exceeding 3,300 millimeters in width with precise edge treatment requirements. Ensure that candidate Glass roller coating machines accommodate maximum panel dimensions with adequate clearance for applicator roller contact, UV lamp positioning, and conveyor tracking without edge contact that damages finishes or creates safety hazards for operators loading and unloading panels.
For frame coating applications where perimeter bands must be applied with precise width control while maintaining perfectly clean post-treatment edges, prioritize Framecoater systems or specialized edge treatment configurations that adjust coating width, thickness, and positioning dynamically across varying panel geometries. Standard flat panel coating machines may achieve superior results on full-surface coating but struggle with precise edge treatment, potentially requiring manual touch-up that negates automation benefits and increases labor costs per finished unit.
Consistent daily cleaning prevents coating buildup in applicator rollers, dosing rollers, doctor blades, and UV lamp housings that degrades finish quality and increases unplanned downtime that disrupts production schedules. Wipe down rollers with appropriate solvents at shift end, removing doctor blades for thorough cleaning to prevent clogging from dried coating residue that alters application patterns and creates streaks or dry spots on finished glass panels.
Inspect conveyor chains, drive motors, photoelectric sensors, roller bearings, and UV lamp housings for wear, contamination, or misalignment that could affect positioning accuracy and coating uniformity across glass surfaces. Weekly preventive maintenance should include lubrication of linear guides with manufacturer-specified greases, verification of applicator roller alignment, calibration of gap settings against certified gauges, and inspection of UV lamp output to ensure adequate curing energy that prevents incomplete polymerization and finish defects on non-porous glass substrates.
Achieving optimal coating quality while minimizing material consumption requires careful balancing of applicator roller pressure, dosing roller speed, conveyor velocity, and UV lamp intensity to match coating viscosity, substrate characteristics, and desired film thickness on glass. Start with manufacturer-recommended baseline settings for your specific coating type and glass substrate, then conduct systematic test applications on sample panels to evaluate coverage uniformity, orange peel severity, and film thickness consistency across faces and edges.
Use wet film thickness gauges during setup to verify that applied coating volumes meet specification requirements before entering UV curing stages, preventing costly rework from under or over-application that wastes material and delays order shipments. Document successful parameter combinations for each coating type and glass substrate, creating standardized setup sheets that reduce changeover times and ensure consistent results across shifts, operators, and production facilities that maintain brand quality standards regardless of where products are manufactured.
Single-head Glass roller coating machines apply coating using one applicator roller and dosing roller configuration, suitable for uniform paint application on flat glass surfaces with simple finishing requirements. Double-head Glass roller coating machines enable application of coatings having different chemical characteristics in sequential passes or simultaneous top and bottom surface coating, ideal for primer and topcoat application in single pass-through operations that dramatically reduce cycle times and floor space requirements.
Glass roller coating machines typically reduce coating consumption by 20 to 40 percent compared to spray application through precise metering, consistent application patterns, and minimal overspray that eliminates waste. Integrated coating recovery systems further reduce waste by capturing and recycling excess material for reuse, dramatically reducing material costs and environmental impact compared to spray methods where overspray losses are unavoidable on non-porous glass surfaces.
Yes, most modern Glass roller coating machines accommodate multiple coating types including UV, PU, PE, NC, AC, water-based paint, fluorocarbon paint, glue, and special paint formulations with appropriate roller materials and curing parameters. UV coatings require UV lamp curing systems emitting at specific wavelengths for photopolymerization, while water-based coatings require IR drying tunnels or forced-air convection ovens that evaporate water carriers at controlled temperatures without premature skinning or finish defects.
Daily maintenance includes wiping down applicator rollers, dosing rollers, and doctor blades, cleaning UV lamp housings, and checking conveyor tracking. Weekly tasks involve lubricating linear guides, verifying roller alignment, checking gap settings, and inspecting UV lamp output to ensure adequate curing energy. Monthly inspections should cover electrical connections, safety interlocks, conveyor drive components, and UV lamp service life to identify wear before failure causes production stoppages that delay customer orders.
Installation and commissioning timelines vary by system complexity and site preparation, typically ranging from two to eight weeks depending on foundation requirements, utility connections, and integration with existing material handling systems. Simple single-head roller coaters may be operational within weeks after delivery if utilities and floor space are ready, while complete turnkey Glass roller coating production lines with conveyor integration, multi-stage application, UV curing systems, and automated material handling require extended commissioning periods including operator training and production trials.
