When manufacturers compare robot spray painting vs an automatic spray machine for complex shapes, the most important issue is not simply automation level. It is whether the equipment can maintain the correct gun angle, distance, speed, and overlap across the entire workpiece.
An automatic spray machine—especially a reciprocating system—is highly effective for flat and regularly shaped products. A robot spray-painting system is generally better for curved, recessed, carved, irregular, and multi-angle surfaces because its multi-axis arm can follow complex geometries.
For wooden doors, furniture, cabinet doors, flooring, glass, and fibre cement products, the right choice depends on the actual shape of the workpiece, production volume, product mix, coating requirements, and future expansion plan.
GYDFinishing—also known as GYD Machinery—has supplied machinery and surface-finishing solutions since 2007. Drawing on worldwide practical experience and more than two decades of technological heritage, GYD Machinery develops automatic coating equipment ranging from individual machines to complete turnkey production lines.
A product may be difficult to spray automatically when it includes:
- Curved surfaces.
- Deep recesses.
- Narrow grooves.
- Sharp edges.
- Multiple surface angles.
- Decorative profiles.
- Hidden areas.
- Large height differences.
- Irregular product orientation.
- Changing dimensions from one part to another.
Complexity is not determined only by the outline of the product. A rectangular cabinet door may be challenging if it has deep routed details. A curved furniture component may be easier to coat if its geometry is stable and repeated.
Before choosing equipment, classify the product according to:
- Surface geometry.
- Edge profile.
- Required spray angle.
- Accessibility of recessed areas.
- Product variation.
- Required film thickness.
- Production volume.

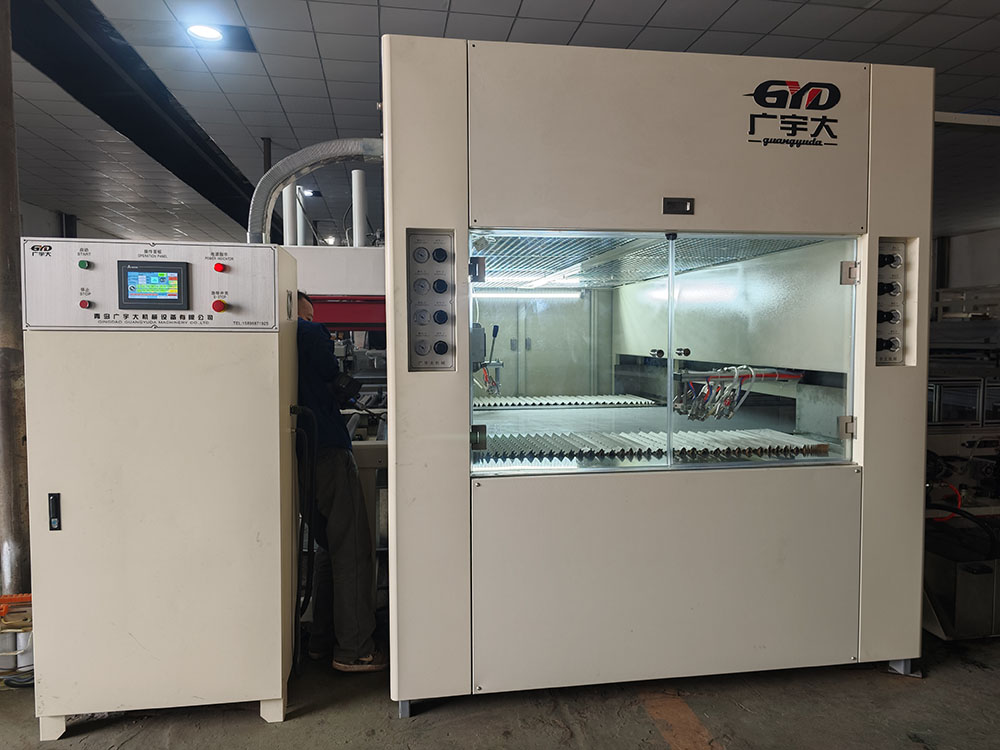

An automatic spray machine is a programmable system that applies coatings through automatic spray guns, reciprocators, conveyors, pumps, sensors, and control systems.
For simple products, it may use:
- Fixed spray guns.
- Vertical reciprocators.
- Horizontal reciprocators.
- Flat-line conveyors.
- Automatic pumps.
- Recipe-based controls.
- Automatic color-change systems.
The spray guns move through a defined path. The system may control:
- Gun distance.
- Travel speed.
- Material flow.
- Atomizing pressure.
- Spray width.
- Trigger timing.
- Number of passes.
- Conveyor speed.
- Product recipe.
Automatic spray machines are usually effective for:
- Flat cabinet doors.
- Furniture panels.
- Flat wooden doors.
- Flooring boards.
- Glass sheets.
- Fibre cement panels.
- Products with repeatable profiles.
They are often selected because they provide:
- High throughput.
- Lower direct labor.
- Repeatable spray paths.
- Simpler programming.
- Lower initial investment than robotics.
- Predictable maintenance.
- Easy integration with drying and handling.
A standard automatic spray machine may struggle when:
- The surface changes direction sharply.
- Recesses block the spray path.
- Edges require different angles.
- The workpiece has curved geometry.
- The product is not positioned consistently.
- The spray path must change continuously.
A reciprocating system moves along a limited number of axes. If the product requires multi-axis orientation, the machine may leave thin areas or require manual touch-up.
Robot spray painting uses a programmable robot arm to move spray guns through multiple axes.
A robotic spray system may include:
- Six-axis articulated robot.
- Automatic spray gun.
- Fluid pump.
- Color-change valves.
- Positioner or rotary table.
- Product-recognition sensors.
- Safety fencing and interlocks.
- Recipe management.
- Vision or scanning systems.
- Automatic cleaning equipment.
The robot can adjust:
- Spray angle.
- Gun distance.
- Movement direction.
- Path speed.
- Material flow.
- Trigger timing.
- Number of passes.
- Approach direction.
Research on spray trajectory planning for free-form surfaces highlights the importance of path planning when coating complex components. [sciencedirect]
A multi-axis robot can keep the spray gun at a controlled angle while moving around:
- Curved edges.
- Recessed panels.
- Carved profiles.
- Undercuts.
- Corners.
- Sloped faces.
- Irregular surfaces.
This can improve:
- Edge coverage.
- Film-thickness consistency.
- Recess coverage.
- Material utilization.
- Repeatability.
- Product flexibility.
Robotic systems are designed to reach complex geometries and hard-to-access areas that are difficult for fixed-path machines. [standardbots]
Robotic systems also have disadvantages:
- Higher equipment cost.
- More complicated programming.
- Greater commissioning requirements.
- More technical maintenance.
- Higher training needs.
- Longer development time for new products.
- Greater safety-system complexity.
A robot may be unnecessary if the factory produces only flat, standardized cabinet doors. The machine can solve problems that do not exist and add cost without creating equivalent value.
Robots generally provide stronger coverage on complex shapes because they can change spray angle and approach direction.
Automatic reciprocating machines are more effective when surfaces are broad, flat, and repeatable.
A robot can maintain a more consistent relationship between the spray gun and a three-dimensional surface. A fixed automatic machine may create thicker areas on surfaces closer to the gun and thinner areas on surfaces angled away from it.
Both systems require calibration, coating testing, and process validation.
Robots offer greater flexibility for mixed product sizes, shapes, and designs. Automatic spray machines offer strong repeatability within a defined product range.
For standard flat products, automatic spray machines may provide excellent throughput with a simpler path. Robots may have longer cycle times on individual complex parts but reduce manual touch-up and rework.
Automatic spray machines generally have a lower entry cost. Robots usually cost more because of multi-axis equipment, programming, safety systems, and integration.
Reciprocating systems are often easier to maintain. Robotic systems require knowledge of controllers, axes, calibration, software, cables, and safety devices.
Carved doors often include recesses, grooves, raised profiles, and difficult edges. A robot can change spray angle and follow the surface more effectively than a basic reciprocating machine.
Curved furniture and irregular components may require multi-axis access. Robotic spray painting can reduce manual touch-up when the product geometry is complex and repeatable.
Some cabinet doors are mostly flat but include routed or molded details. A reciprocating machine may work if the profile is shallow and repeatable. Deep profiles may require additional spray guns, specialized positioning, or a robotic station.
Flooring boards and flat panels are usually strong candidates for automatic spray machines. A robot may be unnecessary unless the products include complex edges or unusual geometries.
Glass and fibre cement products may require precise handling, cleaning, adhesion control, and curing. Automation can improve repeatability when sheet dimensions and positioning are stable. Robots become more useful when the product has multiple surfaces, profiles, or irregular shapes.
A robotic system may take longer to spray one part than a reciprocating machine. That does not automatically mean the robot is less efficient.
Measure:
- Spray cycle time.
- Manual touch-up time.
- Percentage of parts requiring touch-up.
- Additional coating used.
- Rework rate.
- Reinspection time.
- Delayed drying or curing.
- Number of touch-up operators.
A reciprocating machine may coat a complex door quickly but leave recessed areas for manual finishing. A robot may take longer but complete the entire surface in one automated cycle.
The relevant comparison is total finishing time per accepted part, not only machine spray time.
Even a robot requires accurate workpiece presentation.
Evaluate:
- Fixture stability.
- Product orientation.
- Part detection.
- Conveyor spacing.
- Rotary-table accuracy.
- Surface location.
- Product dimensional variation.
- Loading consistency.
- Sensor reliability.
If the workpiece is positioned differently each time, the robot path may not match the product. A factory may need:
- Adjustable fixtures.
- Mechanical stops.
- Vision systems.
- Laser scanning.
- Product-recognition sensors.
- Automatic coordinate correction.
These features can improve flexibility but increase system cost.
Transfer efficiency refers to the amount of coating solids deposited on the product compared with the total coating solids used. [nepis.epa]
For complex shapes, material efficiency depends on:
- Gun angle.
- Gun distance.
- Spray pattern.
- Overlap.
- Path speed.
- Trigger timing.
- Surface accessibility.
- Coating viscosity.
- Airflow.
A robot can reduce overspray on complex surfaces by approaching from a more suitable direction. However, poor path programming can create excessive overlap or unnecessary movement.
Automatic spray machines can be highly material-efficient on flat panels because their spray path is short and repeatable. The correct technology depends on geometry.
Use these steps before selecting equipment:
1. Classify products as flat, profiled, recessed, curved, or irregular.
2. Map every surface that requires coating.
3. Identify edges, grooves, recesses, and hidden areas.
4. Record product dimensions and variation.
5. Define film-thickness and appearance requirements.
6. Measure current touch-up and rework.
7. Test representative workpieces with both technologies.
8. Compare coating consumption and accepted output.
9. Include programming, maintenance, training, and safety costs.
10. Confirm the system's future product capacity.
Ask the supplier to perform a real coating trial using your products and coating materials.
Both automatic machines and robots must be installed in a properly engineered spray environment.
OSHA identifies spray operations as presenting physical and health hazards. Applicable standards address:
- Mechanical ventilation.
- Flammable and combustible materials.
- Ignition sources.
- Electrical equipment.
- Booth construction.
- Exhaust systems.
- Fire protection.
- PPE.
- Lockout and maintenance procedures.
OSHA's ventilation standard requires spray rooms to be adequately ventilated to protect the operator's breathing zone. [osha]
Robotic systems also require:
- Safety fencing.
- Door interlocks.
- Emergency stops.
- Restricted access.
- Safe programming modes.
- Maintenance lockout procedures.
Automation may reduce direct exposure to spray mist, but it does not eliminate the need for training, inspection, and compliant equipment.
Add the following visual assets:
- Geometry infographic: Compare flat, profiled, recessed, curved, and irregular products.
- Spray-path animation: Show a robot changing angles around a carved door.
- Coverage diagram: Highlight areas a fixed spray path may miss.
- Touch-up comparison chart: Use real factory data for robotic and automatic-machine finishing.
- Factory video: Demonstrate robot spraying of a curved furniture component.
Photorealistic industrial finishing factory, split-screen comparison of a standard automatic spray machine coating a flat cabinet door and a six-axis robotic spray painting system coating a complex carved wooden door with recessed details, visible spray gun, rotating fixture, drying tunnel, inspection station, clean modern machinery, realistic engineering details, professional B2B editorial style, no logos, no text.
For complex shapes, a robot spray-painting system is generally better than a basic automatic spray machine because it provides multi-axis movement, flexible spray angles, better access to recesses, and stronger adaptability.
For products that are flat or only mildly profiled, an automatic spray machine may provide better value through lower investment, simpler maintenance, higher throughput, and repeatable coating.
Choose a robot when:
- Geometry is complex.
- Manual touch-up is expensive.
- Product variety is high.
- Edge and recess coverage are critical.
- Future products will become more complex.
Choose an automatic spray machine when:
- Products are flat or regularly shaped.
- Production volume is high.
- Dimensions are stable.
- The factory prioritizes throughput and simple operation.
- A robot's flexibility would be underused.
For mixed production, a hybrid system may be the strongest solution: automatic spray machines for flat panels and robotic spray painting for complex components.
Contact GYDFinishing / GYD Machinery with your product drawings, dimensions, coatings, annual output, current touch-up rate, and quality requirements. GYD Machinery can help determine whether your factory needs an automatic spray machine, robotic spray system, hybrid cell, or complete turnkey coating line.
Usually, yes. A multi-axis robot can change spray angle, distance, and direction to reach curved, recessed, and irregular surfaces.
Yes, if the profiles are shallow, repeatable, and within the machine's spray range. Deep recesses and complex angles may require robotic assistance or manual touch-up.
Usually, yes. Robots require higher investment in equipment, programming, safety systems, commissioning, and technical support.
For simple flat products, an automatic spray machine may provide higher throughput. For complex products, a robot may reduce touch-up and rework, improving total finishing efficiency.
No. Material efficiency depends on path programming, gun settings, coating chemistry, surface geometry, and maintenance.
Carved doors, curved furniture, profiled cabinet doors, irregular architectural components, and parts with multiple surface angles are common candidates.
Yes. A hybrid system can use automatic spray machines for flat panels and robots for complex or irregular products.
