A coating dryer is an essential part of many industrial finishing lines. It helps transform a freshly coated surface from a wet, delicate layer into a material that can be handled, inspected, laminated, or packaged. The term covers several technologies: circulating hot air, infrared heating, ultraviolet curing, flotation drying, and combinations of these methods. Choosing among them requires understanding the coating chemistry, substrate, line speed, desired finish, and safety constraints.
This guide explains what a coating dryer does, how major designs differ, what process variables influence results, and what to evaluate when specifying equipment. It also discusses common defects, energy use, maintenance, and safety. The central principle is that drying is not a generic heating task: the dryer must be designed around the coating and the process. Industrial systems offer options ranging from hot air and infrared to UV, NIR, flotation, and multi-zone designs, with controlled temperature, airflow, and dwell time as important quality factors. [1863]
Drying usually means removing water or solvent from a coating. Curing means developing final material properties through a chemical reaction such as crosslinking or polymerization. A coating may need to be dried, cured, or both. For example, a waterborne coating may first lose moisture in a hot-air or infrared stage and then undergo another process to reach its specified performance. A UV-curable coating instead uses light to initiate a photochemical reaction and does not rely on ordinary evaporation as its principal hardening mechanism. [1866]
The distinction matters because a surface can feel dry while remaining under-cured beneath the surface. Conversely, a coating can become tack-free but still require additional time or energy to reach its specified chemical resistance, adhesion, or hardness. Manufacturers should define the required state at each handoff: ready for recoating, sanding, stacking, winding, or final use.
Coating dryers appear in wood finishing, metal coil coating, automotive parts, flexible packaging, printing, textiles, electronics, batteries, membranes, and other converting operations. Some handle rigid parts on belts or rollers; others process a continuous web under controlled tension. The configuration changes with substrate geometry and thermal sensitivity. Equipment suppliers list roller-aided, belt, tensioning-frame, and flotation dryers, along with hot-air, infrared, UV, NIR, and multi-zone options for different processes. [1863]
A hot-air dryer transfers heat through moving air. Fans circulate conditioned air across coated parts or webs, warming the coating and carrying moisture or solvent vapor away. Properly designed air guidance can support consistent temperature and airflow across the working width. Industrial systems may use electric, gas, steam, or thermal-oil heating, depending on plant utilities and process requirements. [1863]
Hot air is widely used for waterborne coatings and processes where controlled evaporation is needed. The airflow must be strong enough to remove vapor but not so aggressive that it damages a wet film, shifts a lightweight web, or creates surface defects. Temperature alone does not determine performance: air velocity, humidity, exhaust rate, product spacing, coating quantity, and dwell time also matter.
A multi-zone hot-air dryer can provide a gradual profile. An initial zone may allow the wet film to settle or flash off, middle zones may provide the main drying energy, and a final zone may stabilize the coating before cooling. Zone settings should follow trials and supplier guidance rather than the assumption that hotter air always means faster, better drying.
Infrared dryers transfer radiant energy directly to the coating or substrate. They can provide rapid heating without first raising the temperature of a large volume of ambient air. The useful wavelength and emitter design depend on what the coating absorbs and how the substrate responds. Infrared may be used for preheating, forced evaporation, or drying, and is often combined with convection for water-based coating systems. [1864][1863]
Because infrared energy is absorbed selectively, it can heat one part of a coated structure more strongly than another. This can improve speed, but it also means uniformity and overheating must be carefully managed. Distance, emitter output, wavelength, coating color, substrate reflectivity, and line speed can all affect the result. A trial should measure product temperature and inspect the coating, rather than relying only on nominal emitter power.

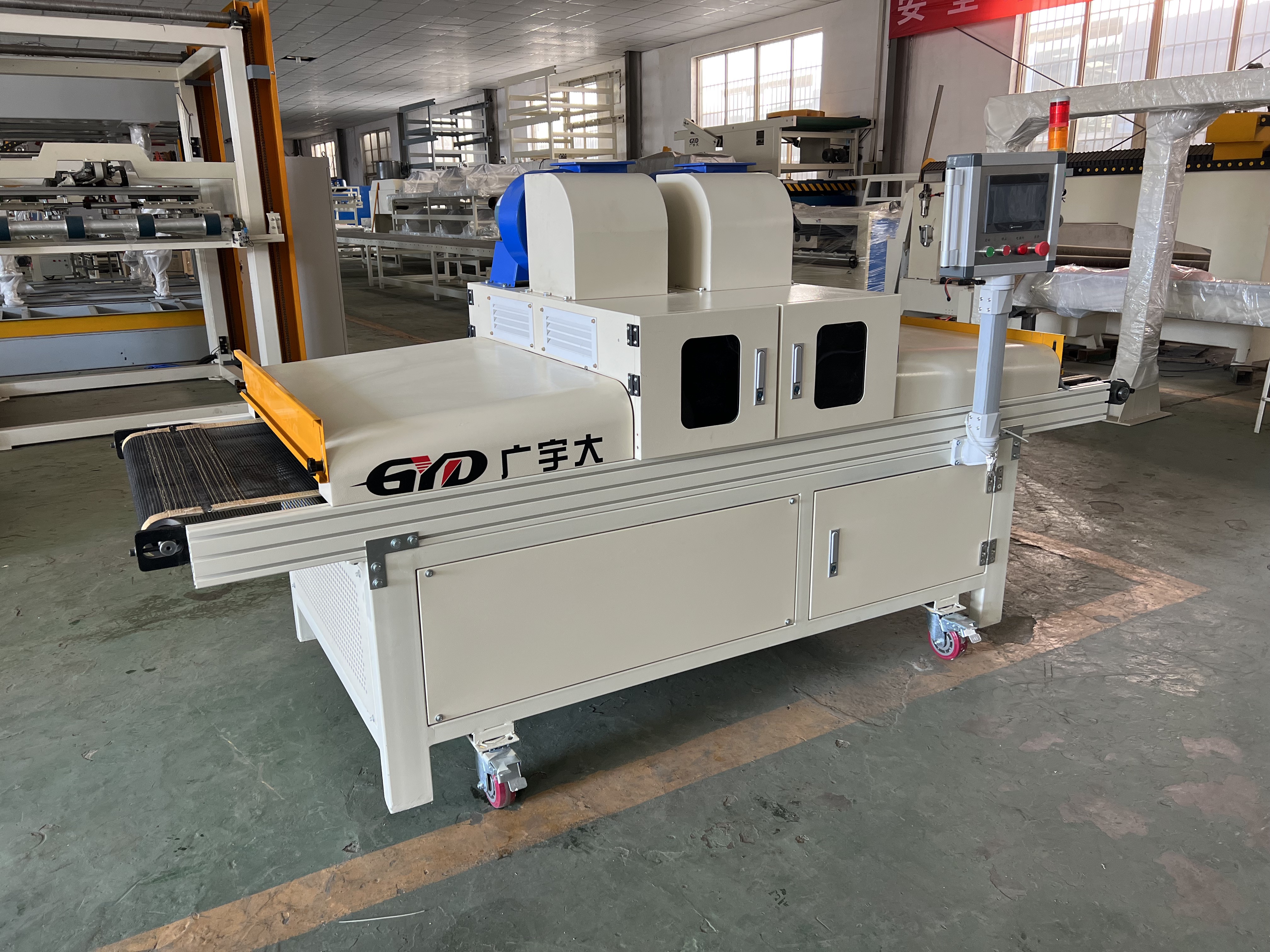

A UV curing system uses ultraviolet radiation to activate photoinitiators in a compatible coating, ink, or adhesive. This photochemical reaction can cure the material in seconds, enabling rapid downstream handling and compact equipment layouts. The number and arrangement of lamps depend on output, coating type, and part geometry. [1864]
UV curing is not a universal replacement for thermal drying. The chemistry must be formulated for the selected wavelengths, and the light must reach the areas that need curing. Pigmented or thick coatings, shadowed geometry, and poorly matched photoinitiators can limit cure depth. Some waterborne UV products may need a drying stage before UV exposure. Validate the complete sequence with the coating supplier.
Near-infrared systems use radiation in a different spectral region from common UV systems and may be selected for specific coating and substrate combinations. Flotation dryers support a moving web with air cushions, reducing mechanical contact with wet surfaces. Photonic methods deliver intense energy over short periods and may suit specialized materials or processes. These technologies are application-specific and should be assessed through engineering trials rather than treated as interchangeable products. [1863]
The product enters the dryer on a conveyor, belt, roller system, frame, or web path. The conveying method must protect the wet film and maintain stable product spacing or web tension. A conveyor that tracks poorly can cause edge contact, uneven exposure, or damage to recently coated parts.
Line speed determines the available dwell time. For a fixed active length, a faster line reduces exposure time. If production speed changes, the thermal or UV process may need corresponding adjustments. The relevant measure is the effective treatment time in each zone, not simply the overall machine length.
In hot-air drying, heated air delivers energy while also transporting evaporated moisture or solvents away. In infrared drying, radiation transfers energy more directly, while ventilation or airflow may still be required to remove released vapor. In UV curing, photons initiate chemical reactions in the coating rather than simply heating it. Some lines combine methods: warm air with IR, flash-off followed by UV, or drying followed by a separate crosslinking stage. [1863][1866]
A coating dryer must manage both heat and mass transfer. If vapor builds up near the surface or within an oven, evaporation can slow. If airflow is too strong or the surface heats too quickly, defects may result. The equipment design must balance energy input, vapor removal, surface quality, and safety.
After drying or curing, products may need cooling before stacking, sanding, winding, or packaging. Cooling sections may use outside air or recirculated air with heat exchange. The required endpoint depends on the next operation and the coating's behavior. A surface that feels dry while hot may still block or mark under pressure when stacked too soon. [1864]
The coating's formulation determines its evaporation and curing behavior. Waterborne, solvent-borne, powder, UV-curable, and reactive systems have distinct process windows. Applied quantity and film thickness also matter: a heavier layer usually needs more energy or time, but simply raising temperature may not be the right response.
Ask the coating supplier for recommended substrate preparation, wet-film range, flash-off conditions, temperature limits, cure requirements, and handling criteria. Test the material at the intended production speed and with representative substrate lots.
Temperature must be considered alongside airflow and humidity. In a hot-air dryer, uniform air distribution helps reduce variations across the working width. Some equipment designs use specially engineered nozzle systems to guide air and temperature throughout the drying duct. [1863]
Inadequate exhaust can allow moisture or solvent vapor to accumulate and undermine process performance. Excessive airflow may disturb a fresh film or a lightweight web. A dryer should be tuned to the product and coating rather than operated at a single generic setting.
Dwell time is the time a product spends in a defined processing zone. It depends on the active zone length and conveyor speed. A longer dwell time can help achieve drying, but may reduce throughput or raise product temperature beyond its tolerance. Faster speed may require greater energy delivery, additional zones, or a different drying method.
Define the acceptable process window instead of relying on one nominal recipe. The process window should cover expected variations in coating quantity, substrate temperature, ambient conditions, and production rate.
List the substrate, coating formulation, application method, line speed, product dimensions, required finish, and next operation. Identify whether the objective is water or solvent removal, chemical cure, or both. Include heat-sensitive substrates, color changes, and product shapes that may affect exposure.
For web processing, include width, thickness, tension limits, and winding requirements. For rigid parts, specify maximum dimensions, weight, spacing, and whether both sides or complex profiles need treatment.
Compare the active drying length, number of zones, heating method, airflow system, exhaust capacity, insulation, conveyor type, controls, and cooling section. Consider available utilities such as gas, electricity, steam, or thermal oil. Suppliers offer combinations of hot air, infrared, UV, NIR, flotation, and multi-zone configurations, so compare performance for the actual coating rather than relying on a technology label alone. [1863]
Evaluate energy-use claims under comparable production conditions. A dryer that consumes less energy per hour may not be more efficient if it runs slower or produces more rejects. Track energy per accepted unit or coated area, together with throughput and quality.
Ask for trials using the actual coating and substrate. Include the fastest intended line speed, the thickest expected coating, and the most demanding product geometry. Inspect appearance and test the coating for relevant properties such as adhesion, hardness, rub resistance, blocking, or downstream bond strength.
Agree on acceptance criteria before the test. A dry-to-touch sample alone is not enough to prove that a coating meets its final performance specification. Record settings and test conditions so the result can be repeated during commissioning.
Blisters can occur when volatile material becomes trapped beneath a rapidly formed surface layer. Pinholes may relate to contamination, substrate condition, trapped air, or an unsuitable drying profile. If the surface dries too quickly compared with the underlying layer, a skin may form and impede further vapor release.
Possible corrective actions include reviewing the coating quantity, initial flash-off, temperature ramp, air speed, and exhaust. Change one parameter at a time and consult the coating supplier before making major process changes.
Uneven results may come from inconsistent airflow, nonuniform lamp exposure, product misalignment, variation in coating thickness, or temperature stratification. Map conditions across the working width and inspect nozzles, filters, reflectors, emitters, and sensors. In web processes, check tension and tracking as well as the coating profile.
Blocking occurs when coated surfaces stick together during stacking or winding. It may indicate incomplete drying or curing, insufficient cooling, excessive coating quantity, or premature handling. Tack or weak adhesion can also result from incorrect chemistry, contamination, insufficient UV dose, or a mismatch between line speed and cure conditions.
Confirm whether the coating has completed the process specified by its supplier. Do not assume that a hotter setting will fix a chemistry or light-spectrum mismatch.
Dryers that process flammable or combustible vapors require engineered ventilation and safeguards appropriate to the process. NFPA 86 covers design, installation, operation, inspection, testing, and maintenance requirements for industrial ovens, dryers, and furnaces, with the objective of reducing fire and explosion hazards. [1870]
Applicable requirements depend on the materials, solvent load, heating method, and jurisdiction. The safety design may require ventilation proving, purge sequences, interlocks, monitoring, or other protective measures. Do not modify exhaust, heater settings, or process rates without reviewing the safety basis with qualified professionals. Local codes and the current applicable standard govern the installation.
Maintenance should include inspection of fans, belts, bearings, filters, ductwork, seals, heating elements, lamps, sensors, guards, and conveyor tracking. Clean surfaces and replace filters according to the supplier's schedule. UV systems require attention to lamp output and optical cleanliness; IR systems require inspection of emitters and reflectors; air systems require checks of nozzles and airflow balance.
Keep records of maintenance, calibration, alarms, and process changes. This makes it easier to identify gradual degradation before it creates quality problems or unplanned downtime.
Energy performance can be improved through good insulation, controlled ventilation, heat recovery where suitable, optimized airflow, and matching the dryer technology to the coating. Infrared can deliver heat directly where required, while circulating-air systems can provide uniform temperature and controlled vapor removal. UV systems can offer very short cure times for compatible coatings. [1864]
Environmental performance depends on the coating and the whole production system. A dryer may reduce process time or energy use, but solvent emissions, exhaust treatment, reject rates, and cleaning waste still matter. Compare total process impacts rather than focusing on one machine specification.
A coating dryer is a broad term for equipment that removes water or solvent and may also support curing. A curing oven is generally designed to provide the thermal conditions needed for a coating or material to develop specified properties. Some production systems perform both functions in a single line.
No method is best for every coating. Hot air is useful for controlled evaporation and broad applications; infrared can deliver heat directly to a surface or coating; UV can cure compatible formulations rapidly through photochemistry. The choice depends on chemistry, substrate, geometry, line speed, and quality requirements. [1864]
Sometimes, especially when the equipment has multiple zones or adjustable heating methods. However, each coating may require different settings, ventilation, or curing stages. Confirm compatibility through supplier review and trials rather than assuming a single recipe will work for every material.
Determine the residence time required for the coating and substrate, then relate it to line speed and the effective processing length. Include flash-off, main drying, curing, and cooling sections as appropriate. Application trials should confirm that the proposed length achieves the required quality at the intended throughput.
Airflow transfers heat and carries moisture or solvent vapor away from the coated surface. Poor distribution can cause uneven drying; excessive airflow can disturb a wet film or web. Proper air guidance and exhaust design are essential to repeatable drying. [1863]
No. UV curing initiates a photochemical reaction in a compatible formulation. Evaporative drying removes water or solvent. A process may use both stages, but UV light is not a general substitute for the drying required by a waterborne or solvent-borne coating. [1866]
Verify that the supplier has tested your coating and substrate at the required speed, that the system meets relevant safety requirements, and that installation, utilities, ventilation, commissioning, training, maintenance, and acceptance testing are clearly defined.
