When manufacturers compare a reciprocating spray machine vs manual spray painting for repetitive production, the central question is not which system can produce a better finish on a single part. Both can. The more important question is which method delivers higher production efficiency, better consistency, and lower total cost per accepted part across an entire shift, week, or year.

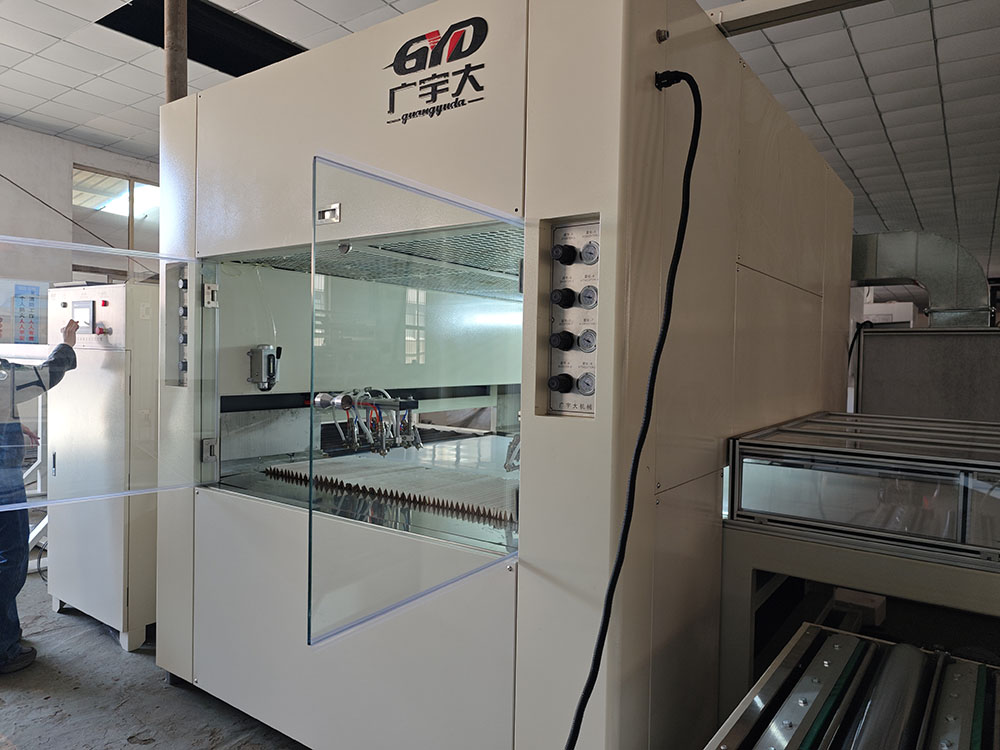

A reciprocating spray machine moves spray guns back and forth along a controlled vertical or horizontal path while workpieces pass through the spray zone on a conveyor. Manual spray painting relies on a skilled operator using a handheld spray gun to control gun distance, speed, angle, overlap, pressure, material flow, and trigger timing.
For standardized wooden doors, furniture panels, cabinet doors, flooring, glass, and fibre cement products, a reciprocating spray machine usually provides stronger repeatability and higher throughput. Manual spray painting remains highly valuable for custom products, prototypes, repairs, and irregular surfaces.
GYDFinishing—also known as GYD Machinery—has supplied machinery and surface-finishing solutions since 2007. Drawing on worldwide practical experience and more than two decades of technological heritage, GYD Machinery develops automatic coating equipment ranging from individual machines to complete turnkey production lines.
A reciprocating spray machine moves one or more spray guns back and forth along a controlled linear axis while workpieces pass through the spray zone on a conveyor.
The system may control:
- Gun travel speed.
- Gun-to-part distance.
- Spray-gun activation.
- Coating flow.
- Atomizing pressure.
- Conveyor speed.
- Spray overlap.
- Number of coating passes.
- Product recipes.
- Gun height and stroke length.
Reciprocating sprayers are commonly used for:
- Cabinet doors.
- Furniture panels.
- Flat wooden doors.
- Flooring boards.
- Glass sheets.
- Fibre cement panels.
- Other flat or regularly shaped products.
High throughput. A fixed linear movement is efficient for continuous production.
Strong repeatability. The same spray pattern can be repeated on compatible workpieces.
Lower capital cost. A reciprocating system is generally less expensive than a multi-axis robotic cell.
Simple operation. Operators can manage recipes, material supply, conveyor speed, and routine maintenance without advanced robot programming.
Lower programming requirements. New products within the machine's working range may require parameter changes rather than completely new spray paths.
Predictable maintenance. The system is mechanically simpler than a multi-axis robot.
A reciprocating sprayer may be less suitable for:
- Deep recesses.
- Curved surfaces.
- Multiple surface angles.
- Complex decorative profiles.
- Irregular edges.
- Large variations in product dimensions.
- Three-dimensional workpieces requiring changing spray angles.
A reciprocator repeats a defined movement. If the workpiece geometry exceeds the design range, edge coverage and recess coverage may become inconsistent.
Manual spray painting uses a trained operator with a handheld spray gun. The operator controls:
- Gun distance.
- Spray angle.
- Movement speed.
- Material flow.
- Air pressure.
- Spray overlap.
- Trigger timing.
- Part orientation.
- Touch-up decisions.
The operator may also prepare coating materials, load parts, inspect the wet film, clean the gun, and move products to the drying area.
High flexibility. A painter can adapt to different product sizes, shapes, colors, and surface conditions.
Strong custom capability. Complex furniture, prototypes, special doors, architectural parts, and repair work can be processed without extensive programming.
Fast visual adjustment. The operator can react to grain direction, recesses, sharp edges, surface defects, and changes in wet-film appearance.
Lower initial investment. A manual booth and spray-gun setup generally costs less than an integrated automated line.
Simple product introduction. A new product may require only operator instruction rather than robot programming and sensor development.
Manual spraying remains valuable wherever adaptability is more important than repeatability.
Manual spraying becomes more expensive as volume and quality demands increase.
Costs may include:
- More painters for higher output.
- Overtime and additional shifts.
- Recruitment and training.
- Absence and turnover.
- Operator supervision.
- Paint waste from inconsistent technique.
- Touch-up and rework.
- Manual loading and unloading.
- Cleaning between colors.
- Dependence on a small number of experienced employees.
Manual spray finishing is inherently labor-intensive, and its throughput is strongly influenced by the number, skill, and endurance of operators.
For repetitive production of standardized products, a reciprocating spray machine generally provides:
- Higher practical throughput.
- More stable cycle time.
- Less operator dependency.
- Better part-to-part consistency.
- Lower direct labor per part.
- Easier production planning.
Manual spray painting can produce excellent results, but consistency may vary between operators, shifts, and production days.
A reciprocating machine usually requires fewer direct spraying operators. Workers may still be needed for:
- Loading and unloading.
- Quality inspection.
- Coating preparation.
- Recipe selection.
- Touch-up.
- Maintenance.
- Filter changes.
- Troubleshooting.
- Production supervision.
The labor structure changes rather than disappearing.
A reciprocating machine provides:
- Stable gun distance.
- Repeatable movement.
- Consistent overlap.
- Predictable film build.
- Strong performance on broad flat surfaces.
Manual spraying depends more on operator skill. A skilled painter can produce excellent results, but consistency across operators and shifts is more difficult.
For products requiring strict film-thickness control, color consistency, and appearance standards, reciprocating machines usually provide better repeatability on flat products.
Transfer efficiency measures how much coating solids reach the product compared with the total coating solids used.
A reciprocating machine can improve material efficiency through:
- Accurate gun triggering.
- Stable gun distance.
- Controlled spray overlap.
- Repeatable conveyor speed.
- Consistent part spacing.
- Defined spray recipes.
Manual material consumption varies with:
- Gun distance.
- Spray overlap.
- Operator speed.
- Coating viscosity.
- Part geometry.
- Spray pressure.
- Nozzle condition.
- Trigger control.
A reciprocating machine may be more material-efficient for flat panels because its spray path is short, direct, and optimized for the product.
Many factories compare only spray-machine cycle time. This can produce the wrong conclusion.
A reciprocating machine may coat a panel quickly but leave difficult areas that require manual touch-up. Manual spraying may take longer but complete the entire surface in one operation.
Measure:
- Touch-up minutes per part.
- Percentage of parts requiring touch-up.
- Coating used during touch-up.
- Additional drying time.
- Reinspection time.
- Touch-up staff required.
- Defects caused by missed or over-coated areas.
If touch-up is a major cost, a reciprocating machine may offer better overall ROI even if its initial purchase price is higher.
Use the following steps before choosing a system:
1. Classify products as flat, profiled, recessed, curved, or irregular.
2. Record product dimensions, weight, material, and coating requirements.
3. Measure daily and annual production volume.
4. Document product-mix and changeover frequency.
5. Define film-thickness and appearance standards.
6. Identify the most difficult edges, profiles, and recesses.
7. Test representative workpieces with both technologies where practical.
8. Compare cycle time, coating consumption, touch-up, and rework.
9. Include programming, maintenance, installation, and training costs.
10. Define acceptance criteria before purchasing equipment.
Both reciprocating spray machines and manual spray painting require safe booth design and operating procedures.
OSHA identifies spray operations as presenting physical and health hazards. Applicable standards address:
- Mechanical ventilation.
- Flammable and combustible materials.
- Ignition sources.
- Electrical equipment.
- Booth construction.
- Exhaust systems.
- Fire protection.
- PPE.
- Lockout and maintenance procedures.
OSHA's ventilation standard requires spray rooms to be adequately ventilated to protect the operator's breathing zone. [dir.ca]
Automatic systems may reduce direct worker exposure to spray mist, but they still require compliant booth design, training, and safe maintenance.
Add these visual elements:
- Product-geometry infographic: Flat products for reciprocators, complex products for manual or robotic spraying.
- Spray-path animation: Show linear reciprocating movement versus manual spray movement.
- Touch-up cost chart: Compare the manual work remaining after each technology.
- Factory video: Demonstrate a reciprocating line coating cabinet doors and manual spraying of custom furniture.
- Process diagram: Show automatic loading, spraying, drying, inspection, and stacking.
Photorealistic industrial finishing factory, split-screen comparison of a reciprocating spray machine coating flat cabinet doors on a conveyor and a skilled painter using manual spray painting on custom furniture, visible spray guns, drying tunnel, inspection station, clean modern machinery, realistic engineering details, professional B2B editorial style, no logos, no text.
For repetitive production of flat or regularly shaped products, a reciprocating spray machine is usually the better choice. It generally offers:
- Lower investment.
- Higher practical throughput.
- Simpler maintenance.
- Strong coating repeatability.
- Efficient conveyor integration.
- Better value for high-volume production.
Manual spray painting remains valuable for custom products, prototypes, repairs, and irregular surfaces.
Choose a reciprocating spray machine when:
- Products are flat or regularly shaped.
- Production volume is high.
- Product dimensions are stable.
- The same coating recipes are repeated.
- Throughput is a priority.
- The factory wants a simpler automation system.
- Capital investment must be controlled.
- The process will connect to a conveyor and drying system.
Choose manual spray painting when:
- Products are highly customized.
- Orders are small.
- Dimensions change frequently.
- Coatings and colors change constantly.
- The factory produces prototypes.
- Surfaces require continuous visual adjustment.
- Skilled craftsmanship adds value.
- Automation utilization would be low.
For mixed production, a hybrid system may be the strongest strategy:
- Reciprocators for flat panels.
- Manual stations for custom work and touch-up.
- Shared drying, inspection, and handling systems.
Contact GYDFinishing / GYD Machinery with your product drawings, dimensions, coating materials, annual volume, product mix, and current quality challenges. GYD Machinery can help determine whether your factory needs a reciprocating spray machine, manual spray painting, hybrid solution, or complete turnkey coating line.
Usually, yes. A reciprocating machine provides higher throughput, more consistent coating, and lower direct labor per part for standardized flat products.
Choose manual spray painting when products are highly customized, orders are small, dimensions change frequently, or skilled craftsmanship adds value.
A reciprocating spray machine generally provides better part-to-part consistency because conveyor speed and spray parameters are more stable.
No. Material efficiency depends on spray technology, product geometry, path design, gun settings, and maintenance. A skilled manual painter can achieve strong efficiency on custom products.
It may handle simple and repeatable profiles with suitable spray-gun configurations. Deep recesses and complex geometry may require manual touch-up or robotic assistance.
Both systems must meet OSHA requirements for ventilation, flammable materials, ignition sources, electrical equipment, exhaust systems, and safe operating procedures.
Yes. A hybrid system can use reciprocating machines for standardized products and manual spray painting for custom work.
