Modern cabinet manufacturing demands flawless surface finishes, minimal material waste, and maximum production efficiency to remain competitive in global furniture markets. A cabinet painting machine has evolved from simple spray booths and manual rollers into sophisticated automated systems that integrate precision coating application, real-time process monitoring, and intelligent material handling specifically engineered for cabinet doors, drawer fronts, panels, and assembled cabinet components. This comprehensive guide explores leading cabinet painting machine technologies, system configurations, and selection criteria that transform painting operations from labor-intensive bottlenecks into streamlined competitive advantages across kitchen cabinet, bathroom vanity, office furniture, and architectural millwork manufacturing sectors.
A cabinet painting machine is an industrial coating application system specifically engineered for uniform, high-quality paint application on cabinet doors, drawer fronts, side panels, and assembled cabinet components. Unlike general-purpose spray booths designed for varied workpieces, cabinet painting machines incorporate specialized conveying mechanisms, multi-angle spray gun arrays, and optimized spray chamber geometries that deliver uniform coverage on flat panels and profiled cabinet components where traditional methods struggle with uneven coverage, high material waste, and significant labor costs.
These systems integrate reciprocating spray mechanisms, robotic manipulators, or roller coating technologies that apply paint, primer, sealer, or topcoat with repeatable precision across production runs without fatigue-related quality degradation that plagues manual operations during long shifts. Advanced cabinet painting machine configurations feature intelligent CNC control, automatic gun movement adjustment, positive-pressure sealed housing that prevents paint from entering machine interiors, and dual lead-screw gun support with multi-gun configurations that adjust to every angle of workpieces for complete coverage.
Industrial cabinet painting machines consist of several integrated subsystems working in concert to achieve reliable high-quality finishes at production speeds optimized for cabinet components. Conveyor systems employ belt-type, chain-pole type, or wire-cable type transport mechanisms that grip panels securely while presenting all surfaces to spray guns without shadowing or missed areas that compromise finish quality. Working widths typically range from 650 to 1,320 millimeters with thickness capacities from 2 to 80 millimeters, accommodating diverse cabinet door geometries from thin drawer fronts to substantial raised panel doors and shaker styles.
Multi-gun spraying manifolds mount four to eight programmable spray guns positioned at precisely calculated angles that ensure complete coverage of top surfaces and both sides of workpieces in single pass-through operations. Exhaust wind volumes ranging from 12,000 cubic meters per hour maintain optimal airflow through spray chambers, preventing overspray accumulation that creates cleanup burdens and fire hazards while ensuring operator safety in facilities where manual touch-up stations remain necessary for assembled cabinet components that cannot be processed on automated lines.

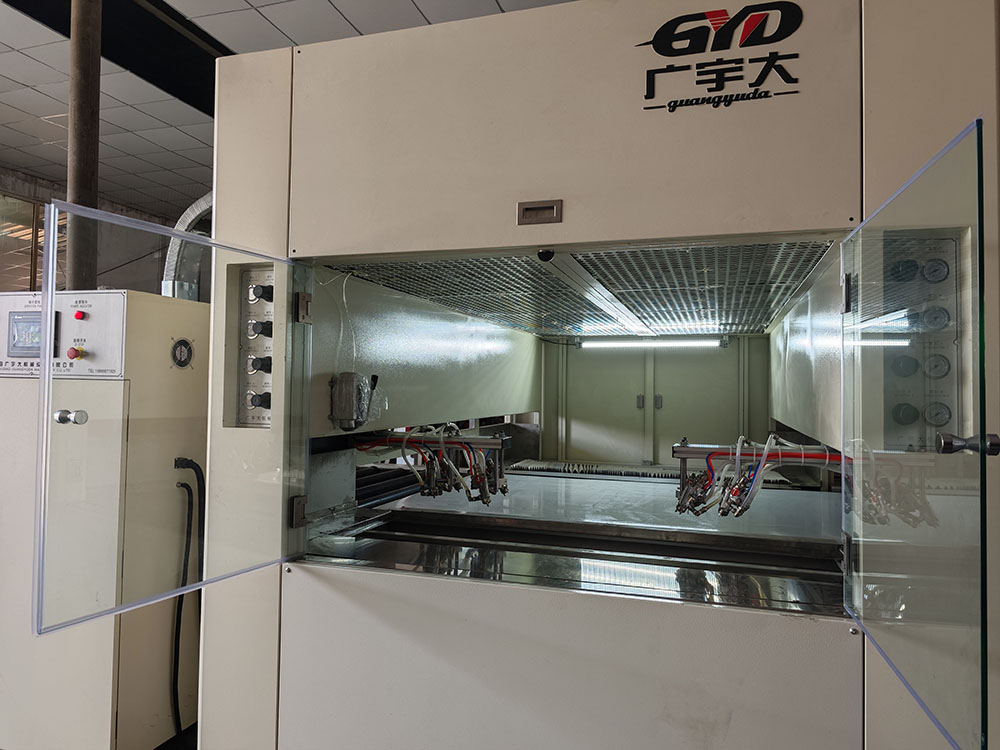

Automatic reciprocating spray painting machines represent the most widely deployed cabinet painting machine configuration for flat panel and profiled door finishing in kitchen cabinet, bathroom vanity, and furniture manufacturing. These systems mount spray guns on linear tracks that move back and forth perpendicular to conveyor direction, creating overlapping spray patterns that eliminate banding and ensure uniform coverage across workpiece surfaces from edge to edge without manual touch-up.
Single-arm reciprocating machines suit low to medium volume production with working widths from 800 to 1,300 millimeters, while twin-arm configurations double throughput for high-volume kitchen cabinet manufacturing where thousands of doors flow through finishing lines daily. Servo-driven reciprocators adjust gun speed, stroke length, and pause positions dynamically to accommodate varying door styles and panel sizes without mechanical changeover, enabling rapid product transitions in high-mix production environments where shaker, raised panel, and slab door styles change frequently throughout shifts.
The CRSE130 series exemplifies this technology with three conveyor variants including belt-type, chain-pole type, and wire-cable type configurations that handle vast ranges of substrates from calcium silicate boards and exterior insulation decorative panels to furniture components, cabinet doors, bathroom vanities, display cases, windows, decorative panels, plastic sheets, aluminium-plastic panels, glass, marble-like boards, and stainless steel products with continuous automatic spraying using PU, UV, PE, NC, fluorocarbon paint, water-in-water multi-color paint, and other water-based coatings.
UV cabinet painting and curing machines combine automated spray application with immediate ultraviolet light curing, dramatically reducing drying times and floor space requirements for high-volume kitchen cabinet and furniture panel production. After coating application, workpieces pass through high-intensity UV lamp arrays that instantly polymerize UV-curable coatings, enabling immediate handling and secondary processing within minutes rather than the hours required for air-dry or thermal cure systems.
These integrated cabinet painting machines achieve line speeds exceeding 30 meters per minute while maintaining coating quality superior to conventional air-dry or thermal cure systems. Automatic spray UV coating and curing machines feature reciprocating spray mechanisms with intelligent scanning sensors that automatically detect workpiece shape and dimensions, whether flat cabinet doors or complex profiled panels, ensuring spray guns move in precise reciprocating motion that delivers uniform film thickness on every single pass without operator intervention.
UV curing systems are designed for curing UV-based fillers, primers, paints and varnishes applied on wood, glass and PVC-like surfaces, used for drying UV coatings on MDF, chipboard and plywood plates, parquet, door panels, cabinet doors, PVC paneling and furniture surfaces where rapid throughput and immediate handling are critical for meeting tight delivery schedules in competitive domestic and export markets.
Edge painting machines represent specialized cabinet painting machine configurations engineered for precision edge coating, UV edge finishing, sanding, sealing, and painting of MDF, plywood, solid wood panels, cabinet doors, furniture components, and decorative profiles where edge quality directly impacts perceived product value and customer satisfaction. The EdgePro Edge Painting Machine exemplifies this technology with multiple working units including spray application units for stain and coating application, roller coating units for primer and topcoat application, belt coating units for filler and basecoat application, UV curing units for instant UV hardening, hot air dryers for drying processes, sanding units for surface preparation, and brushing units for cleaning and denibbing.
These high-speed edge painting machines serve manufacturers demanding faster throughput and consistent edge quality across production runs where manual edge painting creates bottlenecks and quality inconsistencies that delay order fulfillment and frustrate customers. Integrated edge painting and finishing systems transform raw cut-to-size panels into finished, ready-to-assemble cabinet components with minimal manual handling between operations, enabling lights-out manufacturing in modern smart factories where labor costs and skilled operator availability constrain production capacity.
Automatic curtain coating machines represent precision cabinet painting machine technology designed for applying seamless, waterfall-like films of paint or finish onto flat cabinet doors, wardrobe panels, tabletops, and other furniture components requiring mirror finishes that showcase premium quality and craftsmanship. Core technology relies on pumping material to precision die heads that form stable liquid curtains, ensuring exceptional uniformity and superior visual finish compared to conventional spray methods where orange peel and texture variations compromise appearance.
Working widths of 650 millimeters with working heights from 2 to 80 millimeters accommodate standard cabinet door sizes while paint dosage ranging from 40 to 300 grams per square meter enables precise control over film thickness and material consumption. Paint types including UV, PE, PU, NC, and other industrial coatings suit diverse finish requirements from high-gloss kitchen cabinets to matte wardrobe panels where consistent appearance across all visible surfaces is critical for brand reputation and customer satisfaction in premium furniture markets.
IMLUCHY operates as a professional automatic spraying machine manufacturer and supplier focusing on producing spray painting machines for hardware, automobiles, toys, furniture, and cabinet components with over 15 years of industry experience. Their product portfolio includes one to eight-axis reciprocating arc continuous spraying machines, online plane and arc tracking spraying machines, integrated conjoined and split spraying lines, and plane and three-dimensional multi-functional automatic spraying machines that handle diverse workpiece geometries from flat cabinet doors to complex assembled furniture components.
The company's automatic wooden door and cabinet spray machines feature smart 3D optical scanning with zero programming requirements, enabling operators to simply load parts and begin painting instantly without time-consuming path programming that delays production in high-mix environments. Best applications include wooden doors, cabinet doors, panel furniture, standard flat and profiled boards, MDF panels, blinds, and veneer sheets where consistent finish quality and rapid throughput are critical for competitiveness in demanding domestic and export markets.
Taisan Machinery manufactures high-performance automatic spraying machines equipped with intelligent CNC control that ensures precise gun movement and uniform paint coverage across cabinet doors, furniture panels, and architectural components. Their automatic reciprocating spraying machine systems bring furniture finishing into a new era of efficiency with dual-arm configurations suitable for medium to large production volumes, working widths up to 1,320 millimeters, and thickness capacities from 2 to 80 millimeters that accommodate diverse cabinet door geometries.
The company's 5-axis CNC automatic spraying machines feature two-arm reciprocating mechanisms designed for complex cabinet components requiring variable spray angles and standoff distances to achieve uniform coverage without manual touch-up. Technical support encompasses installation, operator training, and ongoing maintenance services across global markets, ensuring customers achieve target quality and throughput levels that justify capital investment in automated finishing technology rather than continuing with inefficient manual methods that vary with operator skill and fatigue levels throughout shifts.
GODN Finishing manufactures the SPM1300H flat line spray machine, a compact high-performance twin-arm reciprocating automatic spray line engineered for consistent, high-quality coating of cabinet components and flat parts. This hybrid paper transport and self-cleaning system makes it ideal both for shops entering automatic finishing for the first time and established manufacturers seeking to upgrade existing lines with modern technology that reduces material waste and improves finish consistency.
The company's cabinet painting machines feature robust construction, precision nozzle systems, and three-phase power systems that deliver consistent coating application across extended production runs without fatigue-related quality degradation. Technical support encompasses installation, operator training, and ongoing maintenance services ensuring customers achieve target quality and throughput levels across extended equipment service life in competitive furniture manufacturing markets where finish quality directly impacts brand reputation and customer satisfaction.
Zhengzhou Chryso Equipment manufactures the CRSE130 series automatic reciprocating spraying machines engineered for continuous, high-throughput coating of flat and profiled workpieces including cabinet doors, bathroom vanities, display cases, and furniture components. Available in three conveyor variants including belt-type, chain-pole type, and wire-cable type configurations, this system handles vast ranges of substrates with continuous automatic spraying using PU, UV, PE, NC, fluorocarbon paint, water-in-water multi-color paint, and other water-based coatings.
ELASN produces fully-automatic reciprocating numerical control spray painting machines with automatic adjustment that runs full spray cycles without manual intervention, positive-pressure sealed housing that effectively prevents paint from entering machine interiors, and dual lead-screw gun support with 4+4 spray gun configurations that adjust to every angle of workpieces for complete coverage. Paint types include PE, PC, PU, UC, NC, UV, and water-based paint suitable for panel furniture, cabinet doors, decorative and plastic boards, glass, aluminium-plastic panels, faux marble, and solid wood doors where consistent finish quality is critical.
Matching cabinet painting machine capacity to actual production volumes and door complexity prevents both underutilization of capital equipment and production bottlenecks that delay order fulfillment and frustrate customers. Low to medium volume operations processing under 500 doors daily benefit from single-arm reciprocating machines or compact UV spray systems with manual loading and unloading stations positioned at ergonomic heights to reduce worker fatigue during extended shifts.
High-volume manufacturers handling thousands of cabinet doors daily require twin-arm configurations or integrated automated spraying lines with automated material handling, quick-change nozzle systems, and integrated vision systems that minimize changeover downtime between door styles. Evaluate cycle times including loading, surface preparation, coating application, flash-off, curing, cooling, and unloading phases to calculate realistic daily throughput under actual operating conditions rather than theoretical maximums that ignore real-world constraints such as material handling delays and quality inspection requirements.
Different coating chemistries demand specific spray gun technologies, fluid delivery pressures, and curing methods to achieve optimal results without sagging, orange peel, or inadequate cure that compromises durability and appearance. Water-based coatings require stainless steel fluid paths, ceramic nozzles, and corrosion-resistant seals to prevent rust contamination during extended production runs, while solvent-borne systems need explosion-proof electrical components and adequate ventilation to meet occupational safety and environmental regulations.
UV-curable coatings necessitate spray guns with specialized nozzles that prevent premature curing inside fluid passages, along with integrated UV lamp arrays positioned immediately after application zones for instant polymerization that enables immediate handling and packaging. Verify that candidate cabinet painting machines accommodate your specific coating portfolio including primers, stains, sealers, and topcoats without requiring extensive reconfiguration or component replacement when switching materials between production runs.
Kitchen cabinet doors, bathroom vanities, and furniture components vary dramatically in dimensions and complexity, from thin drawer fronts measuring 400 millimeters wide to substantial raised panel doors exceeding 600 millimeters in width with intricate moulded details and deep profiles. Ensure that candidate cabinet painting machines accommodate maximum door dimensions with adequate clearance for spray gun travel or roller contact, overspray containment, and conveyor tracking without edge contact that damages finishes or creates safety hazards for operators loading and unloading parts.
For shaped components such as raised panel doors, shaker styles with deep grooves, or carved decorative elements, prioritize cabinet painting machines with programmable spray gun positioning that adjusts angle, standoff distance, and fan width dynamically across varying surface contours. Simple fixed-angle spray manifolds may achieve superior results on flat slab doors but struggle with profiled surfaces, potentially requiring manual touch-up that negates automation benefits and increases labor costs per finished unit.
Consistent daily cleaning prevents coating buildup in spray guns, fluid lines, filters, and recovery systems that degrades finish quality and increases unplanned downtime that disrupts production schedules. Flush spray guns with appropriate solvents at shift end, removing nozzles, air caps, and fluid needles for thorough cleaning to prevent clogging from dried coating residue that alters spray patterns and creates streaks or dry spots on finished cabinet doors.
Inspect conveyor chains, drive motors, photoelectric sensors, reciprocating guides, and roller bearings for wear, contamination, or misalignment that could affect positioning accuracy and coating uniformity across door surfaces. Weekly preventive maintenance should include lubrication of linear guides with manufacturer-specified greases, verification of spray gun alignment using laser tools, calibration of fluid pressure regulators against certified gauges, and inspection of filtration media to ensure adequate airflow through spray chambers that prevents overspray accumulation and fire hazards.
Achieving optimal coating quality while minimizing material consumption requires careful balancing of spray gun air pressure, fan width adjustment, fluid flow rate, gun traverse speed, and conveyor velocity to match coating viscosity and cabinet door geometry. Start with manufacturer-recommended baseline settings for your specific coating type and substrate, then conduct systematic test applications on sample doors to evaluate coverage uniformity, orange peel severity, and film thickness consistency across faces, edges, and profiles.
Use wet film thickness gauges during setup to verify that applied coatings meet specification requirements before entering flash-off or curing stages, preventing costly rework from under or over-application that wastes material and delays order shipments. Document successful parameter combinations for each coating type and door geometry, creating standardized setup sheets that reduce changeover times and ensure consistent results across shifts, operators, and production facilities that maintain brand quality standards regardless of where products are manufactured.
A reciprocating spray cabinet painting machine uses linear tracks with spray guns moving in straight back-and-forth patterns, ideal for flat cabinet doors and simple profiled panels with minimal edge detail. A robotic spray system employs articulated arms that navigate complex three-dimensional paths, better suited for assembled cabinet components, carved details, and complex geometries requiring variable spray angles and standoff distances to achieve uniform coverage without manual touch-up.
Cabinet painting machines typically reduce paint consumption by 20 to 40 percent compared to manual spraying through precise gun triggering, consistent overlap patterns, and optimized application parameters that minimize overspray and waste. Integrated overspray recovery systems further reduce waste by capturing and filtering excess material for proper disposal or recycling in compliance with environmental regulations, while UV curing eliminates solvent emissions entirely from the finishing process.
Yes, most modern cabinet painting machines accommodate multiple coating types with appropriate component configurations and material selections that resist chemical attack and corrosion. Water-based coatings require stainless steel fluid paths and corrosion-resistant seals, while solvent-borne systems need explosion-proof electrical systems and enhanced ventilation. Many manufacturers offer convertible systems that can be adapted for different coating chemistries with component changes and safety upgrades that extend equipment service life as regulations evolve.
Daily maintenance includes flushing spray guns, cleaning nozzles and air caps, wiping down conveyor systems and roller applicators, and checking fluid levels in pressure pots or supply tanks. Weekly tasks involve lubricating linear guides and reciprocating mechanisms, verifying spray gun alignment and nozzle wear, checking pressure regulator calibration, and inspecting filtration media for clogging that reduces airflow. Monthly inspections should cover overspray recovery systems, electrical connections, safety interlocks, conveyor drive components, and UV lamp output to identify wear before failure causes production stoppages that delay customer orders.
Installation and commissioning timelines vary by system complexity and site preparation, typically ranging from four to twelve weeks depending on foundation requirements, utility connections, and integration with existing material handling systems. Simple single-arm reciprocating machines may be operational within weeks after delivery if utilities and floor space are ready, while complete turnkey cabinet painting lines with conveyor integration, multi-stage application, curing systems, and robotic material handling require extended commissioning periods including operator training, production trials, and process optimization to achieve target quality and throughput levels that justify capital investment.
