Modern manufacturing demands flawless surface finishes, minimal material waste, and maximum production efficiency to remain competitive in global markets. A spray painting machine has evolved from simple spray guns and manual rollers into sophisticated automated systems that integrate precision coating application, real-time process monitoring, and intelligent material handling. This comprehensive guide explores leading spray painting machine technologies, system configurations, and selection criteria that transform coating operations from labor-intensive bottlenecks into streamlined competitive advantages across automotive, furniture, aerospace, and industrial manufacturing sectors.
A spray painting machine is an industrial coating application system that uses mechanized spray guns, programmable controls, and automated material handling to apply paint, primer, sealer, lacquer, or protective coatings with repeatable precision. Unlike manual spraying that depends on operator skill and consistency, spray painting machines deliver uniform film thickness, controlled overspray, and optimized material usage across production runs without fatigue-related quality degradation that plagues manual operations during long shifts.
These systems integrate high-volume low-pressure spray technology, airless atomization, electrostatic coating methods, or precision roller application to create fine coating mists or uniform films that adhere evenly to workpiece surfaces. Advanced spray painting machine configurations feature multi-axis robotic arms, reciprocating spray mechanisms, computer vision systems, and real-time viscosity monitoring that maintain optimal application parameters throughout high-volume production cycles, enabling lights-out manufacturing in modern smart factories with minimal operator oversight.
Industrial spray painting machines consist of several integrated subsystems working in concert to achieve reliable high-quality finishes at production speeds. The spray gun assembly includes precision nozzles, fluid needles, and air caps that atomize coating materials into controlled spray patterns ranging from narrow jets for targeted application to wide fans for broad coverage across large panels and complex assemblies. Reciprocating mechanisms or robotic manipulators position spray guns along programmed paths, ensuring complete coverage without streaks, drips, or missed areas that compromise finish quality and require costly rework.
Fluid delivery systems employ pressure pots, gear pumps, diaphragm pumps, or peristaltic pumps that maintain consistent coating flow to spray nozzles at regulated pressures ranging from 2 to 10 bar depending on material viscosity and desired atomization quality. Programmable logic controllers coordinate gun triggering, conveyor speeds, spray pattern adjustments, and flash-off times based on workpiece dimensions detected by photoelectric sensors or 3D optical scanning systems, enabling seamless integration with upstream and downstream manufacturing processes in continuous production flows.

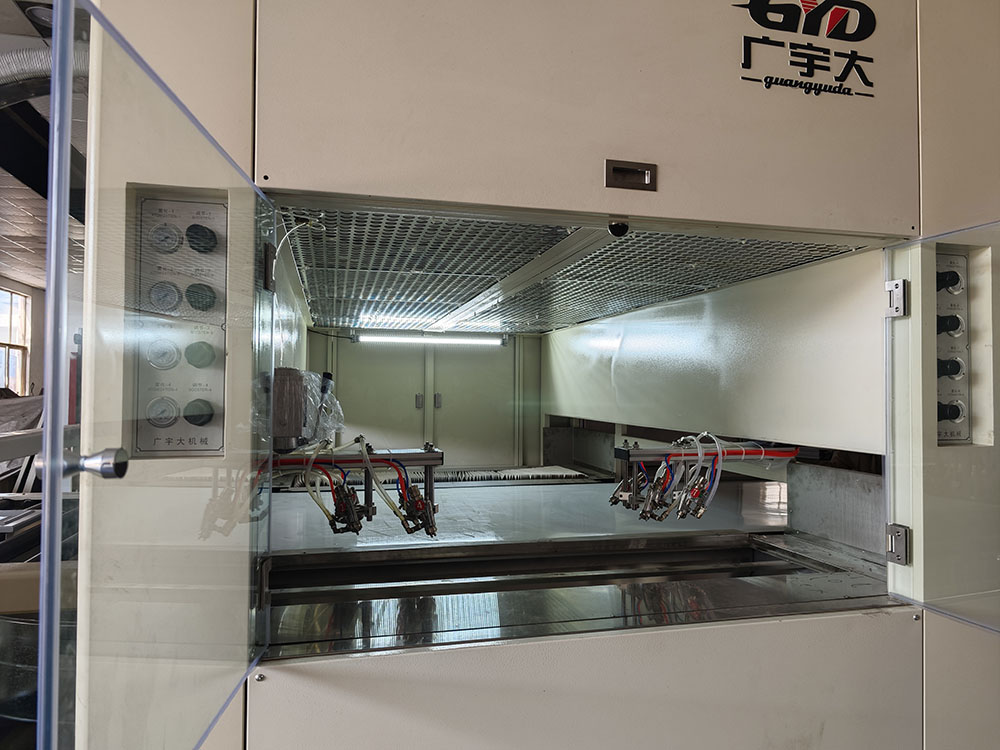

Reciprocating spray painting machines represent the most widely deployed spray painting machine configuration for flat panel and profile coating applications in furniture, cabinet, architectural millwork, and metal fabrication industries. These systems mount spray guns on linear tracks that move back and forth perpendicular to conveyor direction, creating overlapping spray patterns that eliminate banding and ensure uniform coverage across workpiece surfaces from edge to edge without manual touch-up.
Single-arm reciprocating machines suit low to medium volume production with working widths from 800 to 1,300 millimeters, while dual-arm configurations double throughput for high-volume furniture panel, cabinet door, and architectural cladding manufacturing where thousands of components flow through finishing lines daily. Servo-driven reciprocators adjust gun speed, stroke length, and pause positions dynamically to accommodate varying workpiece geometries without mechanical changeover, enabling rapid product transitions in high-mix production environments where door styles, panel sizes, and coating requirements change frequently throughout shifts.
Linear spray painting machines are specifically engineered for coating mouldings, strips, profiles, and narrow panels in one continuous pass with top and side spray coverage that eliminates secondary operations and manual touch-up. A reciprocating upper arm handles the main face while adjustable fixed side guns reach edges and stepped surfaces, delivering all-around coating for various linear workpieces including skirtings, floorboards, door frames, and architectural trim in single pass-through operations.
Operators can switch between reciprocating and fixed spraying modes to match different workpiece widths and coating requirements, optimizing production output while maintaining consistent finish quality. For narrower workpieces, fixed-position spray gun modes maximize production output by eliminating unnecessary gun movement, while for wider workpieces, modes with reciprocating top spray guns and fixed-position side spray guns ensure coating covers every angle of the workpiece with exceptional uniformity that meets demanding quality standards for export-grade building products.
For complex three-dimensional workpieces requiring variable spray angles and standoff distances, robotic spray painting systems offer unmatched flexibility in automotive, aerospace, furniture, and industrial component finishing. Six-axis articulated robots equipped with specialized spray guns navigate intricate geometries, maintaining optimal coating application parameters across curved surfaces, carved details, and assembled structures that challenge conventional reciprocating equipment limited to linear motion paths and fixed spray angles.
Robotic spray painting machines integrate vision systems that scan workpieces before coating, automatically generating optimized spray paths that minimize overspray while ensuring complete coverage of all exposed surfaces including recessed areas, sharp edges, and complex contours that manual operators struggle to coat consistently. Collision avoidance algorithms prevent accidental contact between spray guns and workpieces, reducing downtime and maintenance costs in high-mix production environments where changeover frequency is high and manual programming would be prohibitively time-consuming for short production runs.
SENLIAN manufactures comprehensive spray painting machine systems including linear spray painting machines, reciprocating spray coating machines, and complete coating lines designed for wood furniture, doors, cabinets, flooring, glass, metal, and composite panel finishing applications. Their linear spray painting machines feature reciprocating upper arms with adjustable fixed side guns that deliver all-around coating for various linear workpieces, compatible with many mainstream coatings including PU, PE, UV, NC, AC, water-based paints, and special formulations used in high-end furniture and architectural millwork.
The company's product portfolio spans from compact single-arm reciprocating sprayers suitable for small batch production to complete automated spray coating lines with multi-stage application, flash-off zones, and integrated curing systems for continuous high-volume manufacturing. Technical support encompasses installation, operator training, and ongoing maintenance services across global markets, ensuring customers achieve target quality and throughput levels that justify capital investment in automated finishing technology rather than continuing with inefficient manual methods.
IMLUCHY specializes in providing standard fully automated spray coating production lines and spray painting machine solutions suitable for mass production of plastics, furniture, hardware, automobiles, wood products, toys, and glass components. Their product portfolio includes one to eight-axis reciprocating arc continuous spraying machines, online plane and arc tracking spraying machines, integrated conjoined and split spraying lines, and plane and three-dimensional multi-functional automatic spray painting equipment that handles diverse workpiece geometries from flat panels to complex assemblies.
The company's automatic spray coating lines serve manufacturing industries requiring surface spraying with customized equipment and solutions tailored to specific production requirements, facility layouts, and environmental compliance constraints. Entire coating production workshops are fully equipped with multifunctional reciprocating spraying machines, coating spray lines, UV coating lines, static and dynamic automatic conveying systems, grab loading mechanisms, ground rail coating spray lines, and hanging shaft configurations that provide flexible material handling solutions for varied workpiece geometries and production volumes.
Guangdong TAISAN, established in 2001 and located in Sanshui National High-tech Industrial Park, Foshan, operates as a major coating equipment manufacturer serving furniture, doors, bathroom cabinets, decorative panels, and architectural millwork industries with automatic reciprocating spraying machines that deliver dramatic improvements in output, paint utilization, and finish consistency compared to manual painting methods.
Equipped with advanced Panasonic servo motors and intelligent scanning sensors, TAISAN machines automatically detect the shape and dimensions of workpieces, whether flat wooden doors or complex cabinet panels, ensuring spray guns move in precise reciprocating motion that delivers uniform film thickness on every single pass. Production output reaches 800 to 1,200 square meters per 8-hour shift compared to 150 to 200 square meters for manual painting, while paint utilization improves from 40 to 50 percent in manual operations to 85 to 95 percent with recycling systems in automatic machines.
Shanghai LJ Machinery and Shandong Guandiao CNC Equipment manufacture automatic wood painting machines and UV painting lines designed for furniture, cabinet doors, MDF boards, and architectural woodwork finishing with high efficiency and consistent quality. Their LSPM600 wood automatic spray coating painting machines handle working widths up to 600 millimeters with workpiece thickness ranges from 5 to 100 millimeters, accommodating diverse substrates from calcium silicate boards to solid wood products.
These spray painting machines support virtually all coating types including PU, UV, PE, NC, fluorocarbon paints, and water-based formulations. Configurable spray gun arrangements with four or eight nozzles enable simultaneous multi-surface coating, while photoelectric induction systems detect incoming workpiece lengths to control spray timing and coverage range precisely, enabling lights-out production in modern smart factories with minimal operator oversight and maximum equipment utilization.
Matching spray painting machine capacity to actual production volumes and workpiece complexity prevents both underutilization of capital equipment and production bottlenecks that delay order fulfillment and frustrate customers. Low to medium volume operations processing under 500 panels daily benefit from single-arm reciprocating machines or compact linear spray systems with manual loading and unloading stations positioned at ergonomic heights to reduce worker fatigue during extended shifts.
High-volume manufacturers handling thousands of components daily require robotic spray cells or multi-station coating lines with automated material handling, quick-change nozzle systems, and integrated vision systems that minimize changeover downtime between product styles. Evaluate cycle times including loading, surface preparation, coating application, flash-off, curing, cooling, and unloading phases to calculate realistic daily throughput under actual operating conditions rather than theoretical maximums that ignore real-world constraints such as material handling delays and quality inspection requirements.
Different coating chemistries demand specific spray gun technologies, fluid delivery pressures, and curing methods to achieve optimal results without sagging, orange peel, or inadequate cure that compromises durability and appearance. Water-based coatings require stainless steel fluid paths, ceramic nozzles, and corrosion-resistant seals to prevent rust contamination during extended production runs, while solvent-borne systems need explosion-proof electrical components and adequate ventilation to meet occupational safety and environmental regulations.
UV-curable coatings necessitate spray guns with specialized nozzles that prevent premature curing inside fluid passages, along with integrated UV lamp arrays positioned immediately after application zones for instant polymerization that enables immediate handling and packaging. Verify that candidate spray painting machines accommodate your specific coating portfolio including primers, stains, sealers, and topcoats without requiring extensive reconfiguration or component replacement when switching materials between production runs.
Furniture components, architectural panels, and industrial parts vary dramatically in dimensions and complexity, from small drawer fronts to large wardrobe panels exceeding two meters in length with raised profiles and moulded edges. Ensure that candidate spray painting machines accommodate maximum workpiece dimensions with adequate clearance for spray gun travel or roller contact, overspray containment, and conveyor tracking without edge contact that damages finishes or creates safety hazards for operators loading and unloading parts.
For shaped components such as raised panel doors, shaker styles with deep grooves, or carved decorative elements, prioritize robotic spray systems or linear configurations with side-spray attachments that adjust gun angle, standoff distance, and fan width dynamically across varying surface contours. Flat panel-only machines may achieve superior results on simple slab doors but struggle with profiled surfaces, potentially requiring manual touch-up that negates automation benefits and increases labor costs per finished unit.
Consistent daily cleaning prevents coating buildup in spray guns, fluid lines, filters, and recovery systems that degrades finish quality and increases unplanned downtime that disrupts production schedules. Flush spray guns with appropriate solvents at shift end, removing nozzles, air caps, and fluid needles for thorough cleaning to prevent clogging from dried coating residue that alters spray patterns and creates streaks or dry spots on finished parts.
Inspect conveyor chains, drive motors, photoelectric sensors, reciprocating guides, and roller bearings for wear, contamination, or misalignment that could affect positioning accuracy and coating uniformity across workpiece surfaces. Weekly preventive maintenance should include lubrication of linear guides with manufacturer-specified greases, verification of spray gun alignment using laser tools, calibration of fluid pressure regulators against certified gauges, and inspection of filtration media to ensure adequate airflow through spray booths that prevents overspray accumulation and fire hazards.
Achieving optimal coating quality while minimizing material consumption requires careful balancing of spray gun air pressure, fan width adjustment, fluid flow rate, gun traverse speed, and conveyor velocity to match coating viscosity and workpiece geometry. Start with manufacturer-recommended baseline settings for your specific coating type and substrate, then conduct systematic test applications on sample panels to evaluate coverage uniformity, orange peel severity, and film thickness consistency across faces, edges, and profiles.
Use wet film thickness gauges during setup to verify that applied coatings meet specification requirements before entering flash-off or curing stages, preventing costly rework from under or over-application that wastes material and delays order shipments. Document successful parameter combinations for each coating type and workpiece geometry, creating standardized setup sheets that reduce changeover times and ensure consistent results across shifts, operators, and production facilities that maintain brand quality standards regardless of where products are manufactured.
A reciprocating spray painting machine uses linear tracks with spray guns moving in straight back-and-forth patterns, ideal for flat panels and simple profiles with minimal edge detail. A robotic spray system employs articulated arms that navigate complex three-dimensional paths, better suited for shaped components, carved details, and assembled structures requiring variable spray angles and standoff distances to achieve uniform coverage without manual touch-up.
Spray painting machines typically reduce paint consumption by 20 to 40 percent compared to manual spraying through precise gun triggering, consistent overlap patterns, and optimized application parameters that minimize overspray and waste. Integrated overspray recovery systems further reduce waste by capturing and filtering excess material for proper disposal or recycling in compliance with environmental regulations, while UV curing eliminates solvent emissions entirely from the finishing process.
Yes, most modern spray painting machines accommodate multiple coating types with appropriate component configurations and material selections that resist chemical attack and corrosion. Water-based coatings require stainless steel fluid paths and corrosion-resistant seals, while solvent-borne systems need explosion-proof electrical systems and enhanced ventilation. Many manufacturers offer convertible systems that can be adapted for different coating chemistries with component changes and safety upgrades that extend equipment service life as regulations evolve.
Daily maintenance includes flushing spray guns, cleaning nozzles and air caps, wiping down conveyor systems and roller applicators, and checking fluid levels in pressure pots or supply tanks. Weekly tasks involve lubricating linear guides and reciprocating mechanisms, verifying spray gun alignment and nozzle wear, checking pressure regulator calibration, and inspecting filtration media for clogging that reduces airflow. Monthly inspections should cover overspray recovery systems, electrical connections, safety interlocks, conveyor drive components, and UV lamp output to identify wear before failure causes production stoppages that delay customer orders.
Installation and commissioning timelines vary by system complexity and site preparation, typically ranging from four to twelve weeks depending on foundation requirements, utility connections, and integration with existing material handling systems. Simple single-arm reciprocating machines may be operational within weeks after delivery if utilities and floor space are ready, while complete turnkey spray painting lines with conveyor integration, multi-stage application, curing systems, and robotic material handling require extended commissioning periods including operator training, production trials, and process optimization to achieve target quality and throughput levels that justify capital investment.
