● Understanding UV Roller Coating Machine Technology
>> What Is a UV Roller Coating Machine?
>> Core Components of UV Roller Coating Systems
● Types of UV Roller Coating Machine Configurations
>> Single Roller Coating Systems for Primer and Topcoat
>> Double Roller Coating Systems for Uniform Film Thickness
>> Reverse Roller Coating Systems for Precision Application
>> Integrated UV Roller Coating Production Lines
● Leading UV Roller Coating Machine Manufacturers
>> ZZCHRYSO and Wood-Press-Machine (China)
>> GYD Finishing and Qingdao Incri Machinery (China)
>> Soest Machinery (Netherlands)
>> Guangdong Bossin Novel Materials Technology (China)
● Key Selection Criteria for UV Roller Coating Machine Systems
>> Production Volume and Workpiece Geometry
>> Coating Material Compatibility and Curing Requirements
>> Workpiece Dimensions and Tolerance Requirements
● Maintenance and Operational Best Practices
>> Daily Cleaning and Preventive Maintenance Protocols
>> Optimizing Application Parameters for Quality and Efficiency
>> What is the difference between single roller and double roller UV coating machines?
>> Can UV roller coating machines handle both standard UV and LED UV curable coatings?
>> What maintenance is required for UV roller coating machines?
>> How long does it take to install and commission a UV roller coating machine?
Modern manufacturing demands flawless surface finishes, minimal material waste, and maximum production efficiency to remain competitive in global markets. A UV roller coating machine has evolved from simple roller applicators and manual curing stations into sophisticated automated systems that integrate precision UV-curable coating application, real-time process monitoring, and instant ultraviolet curing. This comprehensive guide explores leading UV roller coating machine technologies, system configurations, and selection criteria that transform coating operations from labor-intensive bottlenecks into streamlined competitive advantages across furniture, flooring, door, cabinet, and architectural panel manufacturing sectors.
A UV roller coating machine is an industrial coating application system specifically engineered to apply UV-curable primers, topcoats, fillers, and sealers onto flat workpieces with repeatable precision using roller-based application technology. Unlike conventional air-dry or thermal cure coatings that require extended drying times and large floor space for flash-off zones, UV roller coating machines apply 100 percent solids or high-solids UV formulations that cure instantly under ultraviolet light, enabling immediate handling and secondary processing within seconds rather than hours.
These systems integrate precision applicator rollers, dosing rollers, and doctor blades that meter exact coating quantities onto workpiece surfaces, creating uniform films ranging from 5 to 150 microns depending on application requirements and substrate characteristics. Advanced UV roller coating machine configurations feature single-roll, double-roll, or reverse roller coaters with variable speed drives, automated gap adjustment, and integrated UV curing tunnels that maintain optimal application parameters throughout high-volume production cycles, enabling lights-out manufacturing in modern smart factories with minimal operator oversight.
Industrial UV roller coating machines consist of several integrated subsystems working in concert to achieve reliable high-quality finishes at production speeds. Application modules employ precision roller coaters with applicator rollers, dosing rollers, and doctor blades that deposit controlled coating volumes onto flat panels, doors, flooring, and architectural components. Single-roll coaters feature one applicator roller suitable for general UV primer and topcoat application on flat surfaces, while double-roll and reverse roller coaters enable faster application speeds and better control of coating viscosity and thickness on substrates requiring more complex finishing.
UV curing systems employ mercury vapor lamps, LED UV sources, or hybrid configurations that emit ultraviolet radiation at specific wavelengths to initiate photopolymerization of UV-curable coatings. Curing times are typically just a few seconds, enabling high-throughput production and immediate handling of finished parts. Conveyor systems transport workpieces through application and curing zones at controlled speeds ranging from 5 to 27 meters per minute depending on coating formulation, substrate type, and desired film thickness, enabling seamless integration with upstream sanding and downstream quality inspection in continuous production flows.
Single roller coating systems represent entry-level UV roller coating machine configurations suitable for low to medium volume operations where capital investment must be minimized while still achieving dramatic improvements over manual methods. These compact machines feature working widths from 600 to 1,300 millimeters with feeding speeds from 0 to 20 meters per minute, fully automating application of UV primers, topcoats, and fillers with exceptional uniformity that effectively replaces inconsistent manual methods.
A typical single roller coater applies UV primer at 4 to 6 grams per square meter using a grooved coating application roller at gloss levels between 10 and 60 units measured at 60 degree gloss measurement angle. The electrical box is separated from the main structure with anti-collision design where feeding anti-collision plates avoid wood damaging the roller, ensuring consistent coating quality across extended production runs without operator intervention that interrupts workflow and reduces overall equipment effectiveness.
Double roller coating systems enhance UV roller coating machine capabilities by employing two coating application rollers in wet-in-wet process or rolling process with UV gelation between the two coating application rollers prior to actual curing. This configuration enables faster application speeds and better control of coating viscosity and thickness, especially on substrates requiring more complex finishing such as grooved panels, textured surfaces, or multi-layer primer sequences.
The wet application amount is 5 to 10 grams per square meter per coating application roller, with total film thickness ranging from 10 to 20 grams per square meter depending on desired finish quality and substrate porosity. UV topcoat is applied as the last coating layer in the coating process, generally done with two coating application rollers in the wet-in-wet process or in the rolling process with UV gelation between rollers, ensuring uniform coverage without orange peel or texture variations that compromise appearance in premium furniture and architectural applications.
Reverse roller coating systems represent advanced UV roller coating machine technology where the applicator roller rotates in opposite direction to workpiece travel, creating shearing forces that level coating films and eliminate roller marks for ultra-smooth finishes required by high-end furniture, flooring, and architectural panel specifications. Working widths range from 400 to 1,600 millimeters with transport belt speeds from 9 to 27 meters per minute, application roller speeds from 9 to 27 meters per minute, and dosing roller speeds from 5 to 15 meters per minute for precise control over coating viscosity and film thickness.
The Soest Machinery Roller Coater Reverse RCR-L provides high-quality coating of industrial materials such as wood, laminate, flooring, and panels with working width maximum from 400 to 1,600 millimeters, speed transport belt from 9 to 27 meters per minute, speed application rollers from 9 to 27 meters per minute, and speed dosing roller from 5 to 15 meters per minute for precise control over coating application parameters.
Fully integrated UV roller coating production lines combine surface preparation, multi-stage UV primer and topcoat application, UV curing, intermediate sanding, and final finishing in one continuous flow that transforms raw substrates into finished, ready-to-assemble components with minimal manual handling. These complete installations suit mass production environments where parts move automatically from sanding through UV primer application, UV curing, sanding, UV topcoat application, final UV curing, and quality inspection without intermediate storage or re-fixturing that introduces contamination risks and delays order fulfillment.
A typical UV roller coating production line for PVC plastic flooring follows process sequence including preheating section, UV primer roller coating at 4 to 6 grams per square meter, UV curing with lamp power 10 to 15 kilowatts adjusted to ensure UV lamp intensity between 200 to 300 milliwatts per square centimeter and energy density between 150 to 300 millijoules per square centimeter, UV topcoat roller coating at 6 to 8 grams per square meter, heating and leveling section, final UV curing with lamp power 10 to 15 kilowatts adjusted to ensure UV lamp intensity between 600 to 1,000 milliwatts per square centimeter and energy density between 600 to 1,000 millijoules per square centimeter, then inspection and board collection.
ZZCHRYSO manufactures comprehensive UV roller coating machines and production lines suitable for flat workpieces such as doors, flooring, and flat furniture panels, delivering accurate and uniform coating application that ensures finishing with great fullness and no color differences across production batches. Their roller coating machines are ideal for UV primer, topcoat, and filler application with residual paint recovery and recycling systems that dramatically reduce material costs and environmental impact compared to spray application methods.
The company's equipment portfolio spans surface preparation through final cure with automatic spraying machines, UV curing tunnels, IR drying systems, and wide-belt sanders that level coated surfaces between coats for ultra-smooth finishes required by high-end furniture and architectural millwork specifications. Technical support encompasses installation, operator training, and ongoing maintenance services across global markets, ensuring customers achieve target quality and throughput levels that justify capital investment in automated finishing technology.

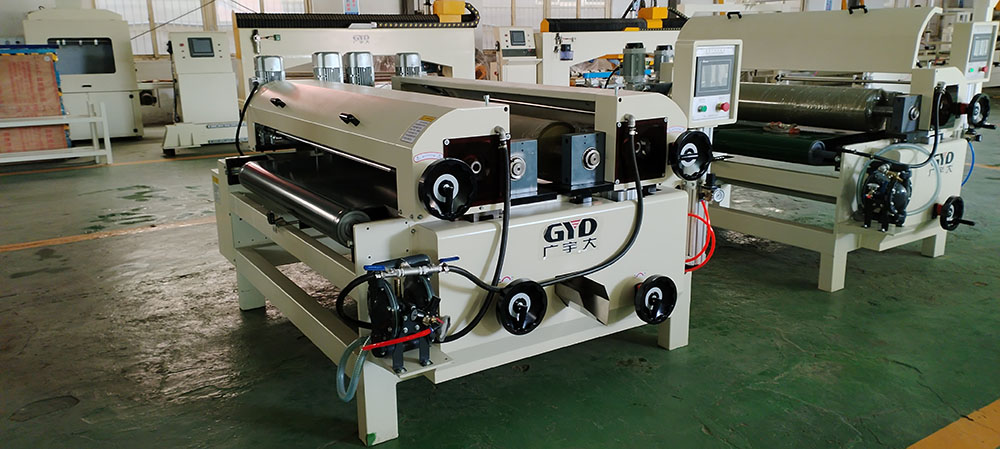

GYD Finishing operates as a professional roller coating machine manufacturer, supplier, and manufacturing company with high quality and reasonable prices, offering customized private label roller coating machines from their factory. Their product portfolio includes automatic flat line furniture roller coater machines with two-head roller coater configurations available for UV, PU, and water-based coatings with paint thickness from 5 to 10 grams per square meter.
Qingdao Incri Machinery manufactures digital automatic UV double roll coaters for wood with five rolls positive and negative roller UV coating machines for wooden panels, featuring max processing widths of 600, 1,000, and 1,300 millimeters with feeding speeds from 0 to 20 meters per minute. The electrical box is separated from the main structure with anti-collision design where feeding anti-collision plates avoid wood damaging the roller, ensuring consistent coating quality across extended production runs without operator intervention.
Soest Machinery produces roller coater reverse RCR and RCR-L systems specifically designed for applying UV, oil, lacquer, and varnish to industrial materials including wood, laminate, flooring, and panels with high-quality uniform application. Working widths range from 400 to 1,600 millimeters with transport belt speeds from 9 to 27 meters per minute, application roller speeds from 9 to 27 meters per minute, and dosing roller speeds from 5 to 15 meters per minute for precise control over coating viscosity and film thickness.
The company's roller coaters integrate precision applicator rollers, dosing rollers, and doctor blades that maintain consistent coating application across extended production runs without manual intervention that interrupts workflow and reduces overall equipment effectiveness. Technical support encompasses installation, operator training, and ongoing maintenance services ensuring customers achieve target quality and throughput levels across extended equipment service life.
Guangdong Bossin Novel Materials Technology operates as a hi-tech enterprise specializing in research and development, production, sales, and technical services of UV and electron beam curable materials, creating value for customers with high-quality products and overall technical solutions for UV coating applications. Their UV coating roller application process for PVC plastic flooring includes preheating section, UV primer roller coating at 4 to 6 grams per square meter, UV curing with lamp power 10 to 15 kilowatts, UV topcoat roller coating at 6 to 8 grams per square meter, heating and leveling section, final UV curing, and inspection.
The company's technical expertise encompasses UV primer and topcoat formulations optimized for roller coating application on diverse substrates including wood, MDF, PVC, metal, and composite panels with gloss levels from matte to high-gloss finishes. Technical support encompasses coating formulation selection, process optimization, and troubleshooting services ensuring customers achieve target quality and throughput levels across extended equipment service life.
Matching UV roller coating machine capacity to actual production volumes and workpiece complexity prevents both underutilization of capital equipment and production bottlenecks that delay order fulfillment and frustrate customers. Low to medium volume operations processing under 500 panels daily benefit from single roller coaters or compact UV spray systems with manual loading and unloading stations positioned at ergonomic heights to reduce worker fatigue during extended shifts.
High-volume manufacturers handling thousands of components daily require double roller configurations or integrated production lines with automated material handling, quick-change applicator rollers, and integrated UV curing zones that minimize changeover downtime between product styles. Evaluate cycle times including loading, coating application, UV curing, cooling, and unloading phases to calculate realistic daily throughput under actual operating conditions rather than theoretical maximums that ignore real-world constraints such as material handling delays and quality inspection requirements.
Different UV coating chemistries demand specific roller materials, fluid delivery systems, and UV lamp wavelengths to achieve optimal results without incomplete cure, adhesion failures, or finish defects that compromise durability and appearance. Standard UV primers and topcoats require mercury vapor lamps emitting at 365 nanometers for surface cure and 405 nanometers for deep cure, while LED UV sources offer energy efficiency and instant on-off capability with narrower wavelength bands that require careful formulation matching.
UV gelation processes apply intermediate cure levels between coating layers to ensure optimal intercoat adhesion for subsequent layers without fully curing primer or basecoat that would prevent chemical bonding with topcoat layers. Verify that candidate UV roller coating machines accommodate your specific coating portfolio including primers, fillers, sealers, and topcoats without requiring extensive reconfiguration or component replacement when switching materials between production runs.
Furniture components, architectural panels, and flooring products vary dramatically in dimensions and complexity, from small drawer fronts to large wardrobe panels exceeding two meters in length with raised profiles and moulded edges. Ensure that candidate UV roller coating machines accommodate maximum workpiece dimensions with adequate clearance for applicator roller contact, UV lamp positioning, and conveyor tracking without edge contact that damages finishes or creates safety hazards for operators loading and unloading parts.
For shaped components such as raised panel doors, shaker styles with deep grooves, or textured flooring surfaces, prioritize UV roller coating machines with programmable applicator roller positioning that adjusts pressure, standoff distance, and coating volume dynamically across varying surface contours. Flat panel-only machines may achieve superior results on simple slab doors but struggle with profiled surfaces, potentially requiring manual touch-up that negates automation benefits and increases labor costs per finished unit.
Consistent daily cleaning prevents coating buildup in applicator rollers, dosing rollers, doctor blades, and UV lamp housings that degrades finish quality and increases unplanned downtime that disrupts production schedules. Wipe down rollers with appropriate solvents at shift end, removing doctor blades for thorough cleaning to prevent clogging from dried coating residue that alters application patterns and creates streaks or dry spots on finished parts.
Inspect conveyor chains, drive motors, photoelectric sensors, roller bearings, and UV lamp housings for wear, contamination, or misalignment that could affect positioning accuracy and coating uniformity across workpiece surfaces. Weekly preventive maintenance should include lubrication of linear guides with manufacturer-specified greases, verification of applicator roller alignment, calibration of gap settings against certified gauges, and inspection of UV lamp output to ensure adequate curing energy that prevents incomplete polymerization and finish defects.
Achieving optimal coating quality while minimizing material consumption requires careful balancing of applicator roller pressure, dosing roller speed, conveyor velocity, and UV lamp intensity to match coating viscosity, substrate porosity, and desired film thickness. Start with manufacturer-recommended baseline settings for your specific coating type and substrate, then conduct systematic test applications on sample panels to evaluate coverage uniformity, orange peel severity, and film thickness consistency across faces, edges, and profiles.
Use wet film thickness gauges during setup to verify that applied coating volumes meet specification requirements before entering UV curing stages, preventing costly rework from under or over-application that wastes material and delays order shipments. Document successful parameter combinations for each coating type and substrate, creating standardized setup sheets that reduce changeover times and ensure consistent results across shifts, operators, and production facilities that maintain brand quality standards regardless of where products are manufactured.
Single roller UV coating machines apply coating using one applicator roller and dosing roller configuration, suitable for general UV primer and topcoat application on flat surfaces with simple finishing requirements. Double roller UV coating machines employ two coating application rollers in wet-in-wet process or rolling process with UV gelation between rollers, enabling faster application speeds and better control of coating viscosity and thickness on substrates requiring more complex finishing such as grooved panels or textured surfaces.
UV roller coating machines typically reduce coating consumption by 20 to 40 percent compared to spray application through precise metering, consistent application patterns, and minimal overspray that eliminates waste. Integrated coating recovery systems further reduce waste by capturing and recycling excess material for reuse, dramatically reducing material costs and environmental impact compared to spray methods where overspray losses are unavoidable and create cleanup burdens.
Yes, most modern UV roller coating machines accommodate multiple UV coating types with appropriate UV lamp configurations and wavelength selections that match coating formulation requirements. Standard UV coatings require mercury vapor lamps emitting at 365 nanometers for surface cure and 405 nanometers for deep cure, while LED UV sources offer energy efficiency and instant on-off capability with narrower wavelength bands that require careful formulation matching for optimal results.
Daily maintenance includes wiping down applicator rollers, dosing rollers, and doctor blades, cleaning UV lamp housings, and checking conveyor tracking. Weekly tasks involve lubricating linear guides, verifying roller alignment, checking gap settings, and inspecting UV lamp output to ensure adequate curing energy. Monthly inspections should cover electrical connections, safety interlocks, conveyor drive components, and UV lamp service life to identify wear before failure causes production stoppages that delay customer orders.
Installation and commissioning timelines vary by system complexity and site preparation, typically ranging from two to eight weeks depending on foundation requirements, utility connections, and integration with existing material handling systems. Simple single roller coaters may be operational within weeks after delivery if utilities and floor space are ready, while complete turnkey UV roller coating production lines with conveyor integration, multi-stage application, UV curing systems, and automated material handling require extended commissioning periods including operator training and production trials.
